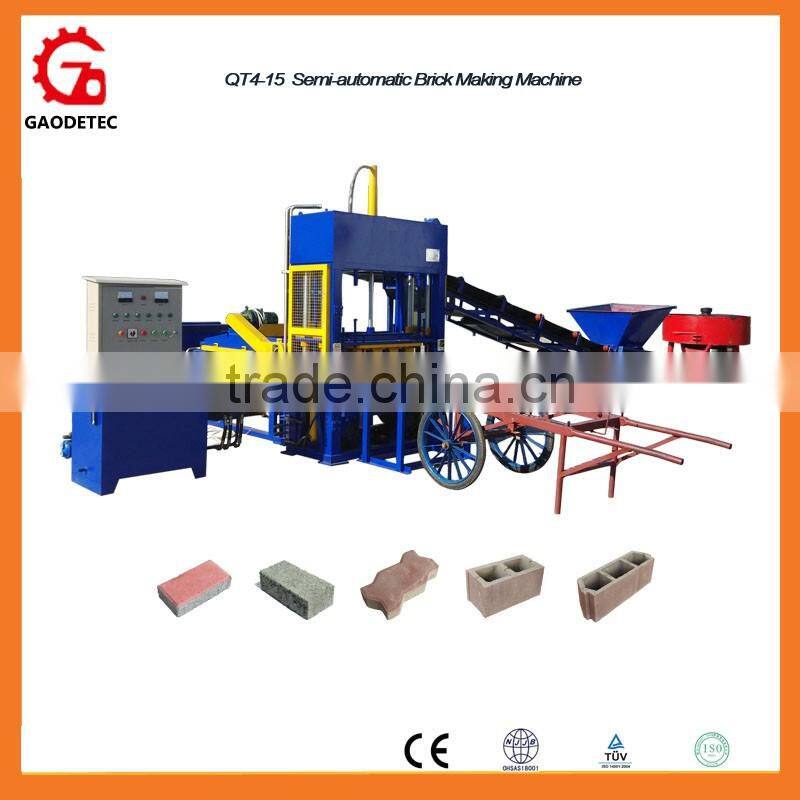

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine photo-1
High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine photo-2
US$ 19,000 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Cutting Machine
Method Hydraulic Pressure
Automatic No
Capacity Hollow Block 5000pcs./8 hours
Place of Origin Henan, China
Brand Name GD
Model Number QT4-15
Voltage Local Voltage
Power 19.9Kw
Dimension(L*W*H) 2800*1570*2600mm
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine





Product Description

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making MachineFeatures

1.Way of moulding is vibration combined with hydraulic pressure.So blocks havegood strength  and density.the machine can produce hollow block,solid block,paving block by changing mould.

2.The way of concrete feeding into mould is compulsive by three shaft with blades.  It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication.

3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.

4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.

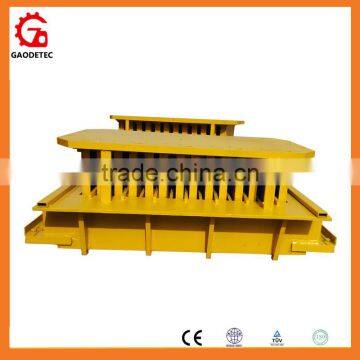

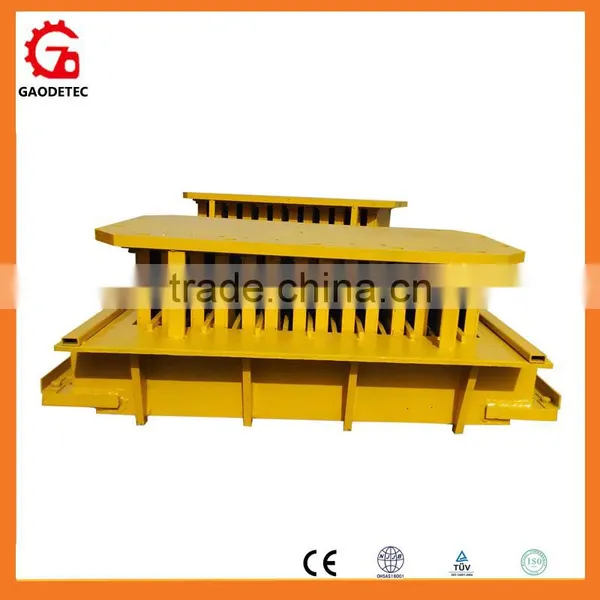

5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.



Main Technical Specification:

Description

Data

Block making machine type

QT4-15

Vibration Frequency

4200r/min

Vibration Force

70KN

Cycle Time

15-25sec

Power

19.9KW

Mode of Vibration

Table Vibration

Pallet Size

960x630mm

Weight

4500KG

Dimension

2800x1570x2600mm





Production Capacity

Block Type


Size(L x W x H)

Pcs./Pallet

Pcs./Hour

Pcs./8 Hours

Hollow Block

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

390x190x190mm

4

625

5000

Hollow Block

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

390x150x190mm

5

780

6240

Hourdi Block

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

530x160x195mm

5

780

6240

Stock Brick

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

220x110x70mm

20

4500

36000

Paving Block

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

200x100x60mm

16

2300

18400

Paving Block

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine

225x112.5x60mm

14

2000

16000





Recommendation Configuration



Description

Quantity

Remark

Main Machine

1set



Hydraulic System

1set



ElectricControl Cabinet

1set



Concrete Feeder

1set



Pallets Feeder

1set



Belt Conveyor

1set



Pallet Stand

1set



HT350 Mixing Machine

1set



Pallet

15 pieces



Manual Cart

4sets



Colour Feeder

1set

Optional Parts

Pallet(960x630x30mm)

1000pieces

Optional Parts

   Block/brick Samples
High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine



Application

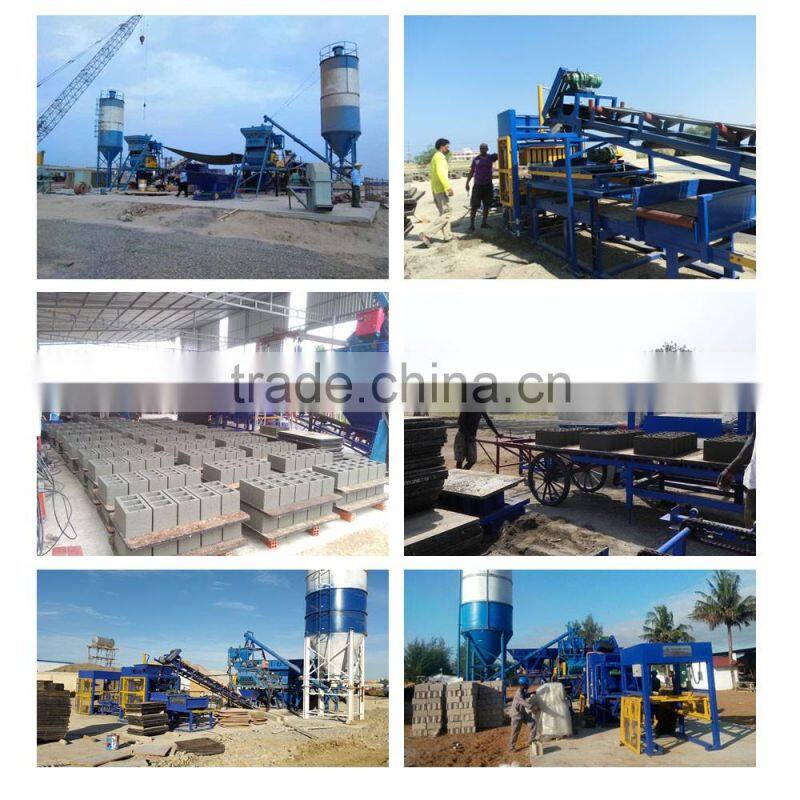

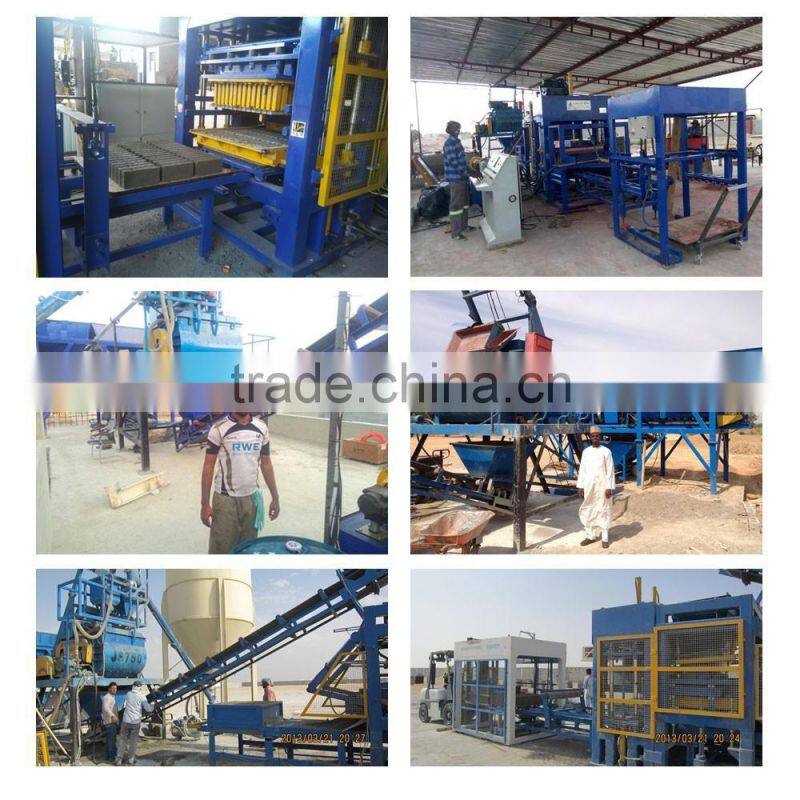

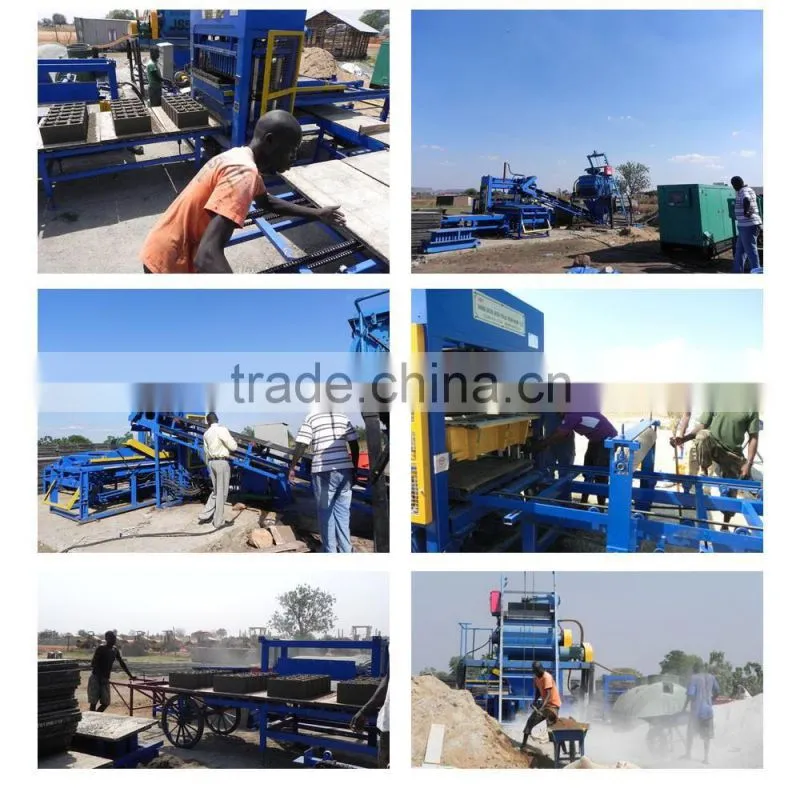

  Our Brick Making Machine at  worksite

High Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making MachineHigh Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making MachineHigh Profit Energy Saving QT4-15 Soil Cement Hollow Paving Bricks Making Machine
