2016 New QT5-15 Concerte Cement Hollow Block Making Machine
2016 New QT5-15 brick making machine with different types of moulds is used to make concrete pavement brick, hollow block,solid brick, interlocking brick etc. It can be described as a machine to meet various needs of different customers from companies or individual.
Raw material:crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel,
perlite, and other industrial wastes.
Main Features
1. Multi-Fuctional: The machine can make different products by changing mould, like hollow brick, solid brick, paver brick and so on;
The moulds, gears and shafts have heat treatments of quenching, boronizing, carburing and so on in order to ensure the quality of block machine.
2. Power-Saving: When the machine is working, only the main machine is always on, other parts only works at regular intervals;
3. Quick Speed: The male and female mould inserts and pulls out quickly with high-powered hydraulic pump. Meanwhile, all the processes like feeding concrete into female mould and perparing concrete are finished at the same time;
4. High Quality: The switched and electronic is using CHNT and Omron brand. Mould is processed by heat treatment, carburization;
5. Easy Operation: The main machine is operated by on person, and other processes will be completed automatically by electronics. Because the pressure of vibration is high, the materials needs less water. So the machine still can work under low temperature;
6. Quick Stacking: The bricks made by this machine is high density. The wet bricks could be stacked if raw materials is good. So you can save pallets and land.
Main Technical Parameters :
Description | Data |
Block making machine type | QT5-15 |
Vibration Frequency | 4200r/min |
Vibration Force | 70KN |
Cycle Time | 15-25sec |
Power | 24.7KW |
Mode of Vibration | Table Vibration |
Pallet Size | 1100 x700x30mm |
Overall Weight | 6T |
Overall Dimension | 3000x1900x2930mm |
Recommendation Configuration
Description | Quantity | Remark |
Main Machine | 1set |
|
Hydraulic System | 1set |
|
ElectricControl Cabinet | 1set |
|
Concrete Feeder | 1set |
|
Pallets Feeder | 1set |
|
Belt Conveyor | 1set |
|
Pallet Stand | 1set |
|
HT350 Mixing Machine | 1set |
|
Pallet | 15 pieces |
|
Manual Cart | 4sets |
|
Colour Feeder | 1set | Optional Parts |
Pallet(960x630x30mm) | 1000pieces | Optional Parts |
Production Capacity
Block Type | Picture | Size(L x W x H) | Pcs./Mold | Pcs./Hour | Pcs./8 Hours |
Hollow Block |
| 390x190x190mm | 5 | 780 | 6240 |
Hollow Block |
| 390x150x190mm | 6 | 940 | 7520 |
Hourdi Block |
| 530x160x195mm | 6 | 940 | 7520 |
Stock Brick |
| 220x110x70mm | 24 | 5400 | 43200 |
Paving Block |
| 200x100x60mm | 22 | 3160 | 28280 |
Paving Block |
| 225x112.5x60mm | 20 | 2880 | 23040 |
Related Parts

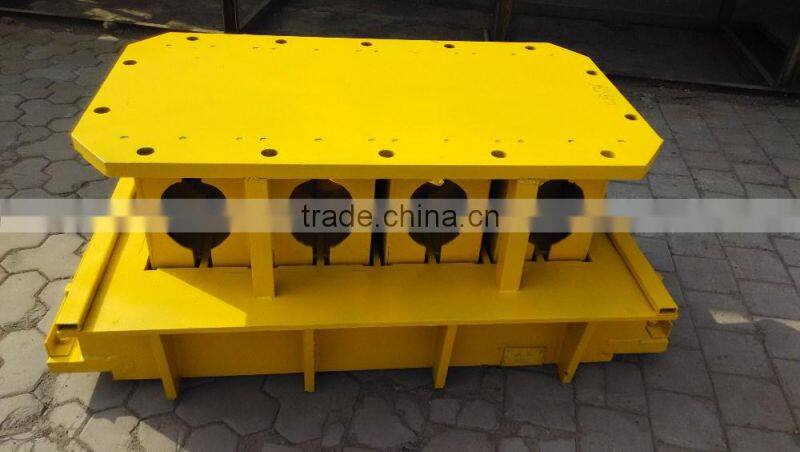

Brick mould

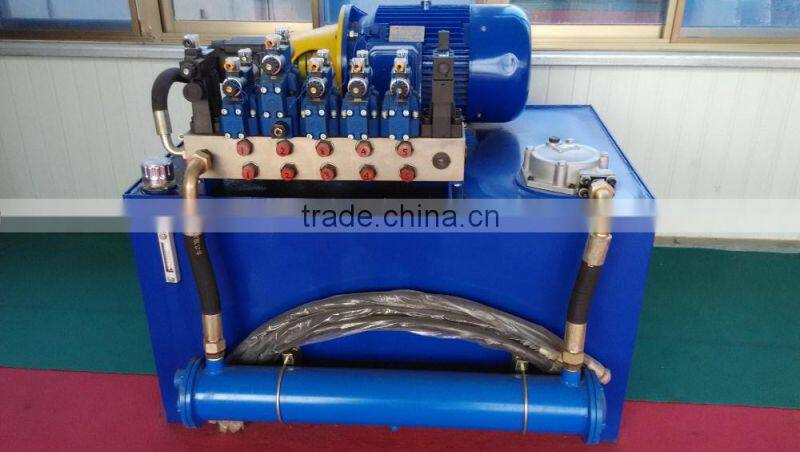

Hydraulic System

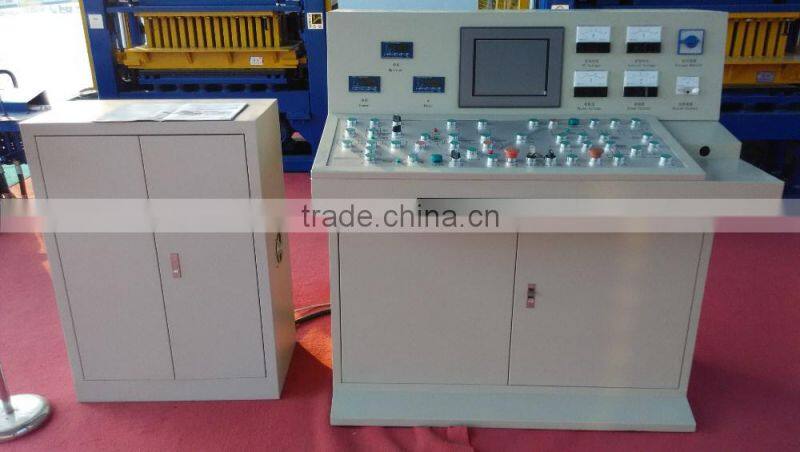

ElectricControl Cabinet
Block/brick Samples
Our workshop

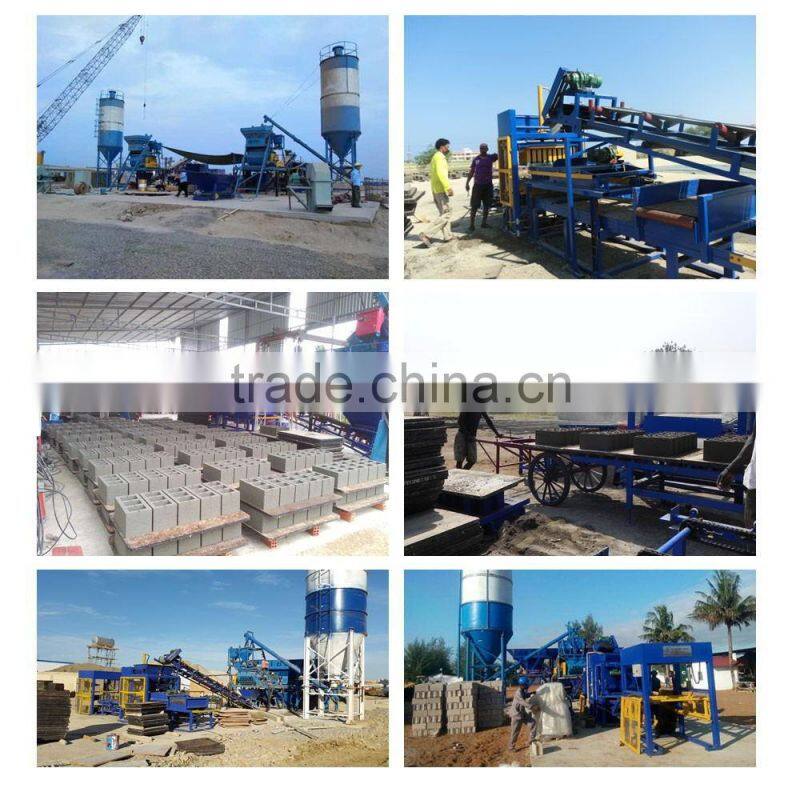

Our Brick Making Machine at worksite
