LSZ3000D famous brand diesel engine concrete sprayers wet-mix shotcrete systems

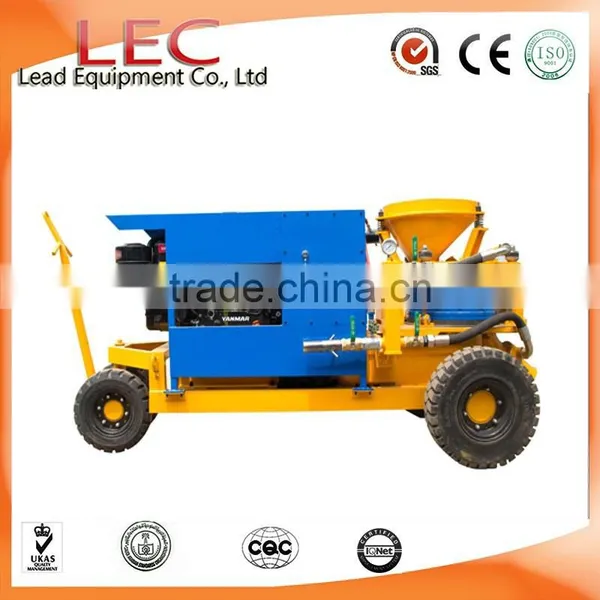

LSZ3000D yanmar diesel engine concrete sprayers wet-mix shotcrete systems description:
LSZ3000 concrete sprayers wet-mix shotcrete systems is a universal concrete spraying machine for the processing of wet or dry mix.
The machine is suitable either for manual spraying or by means of a robotic arm.
LSZ3000 concrete sprayers wet-mix shotcrete systems is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

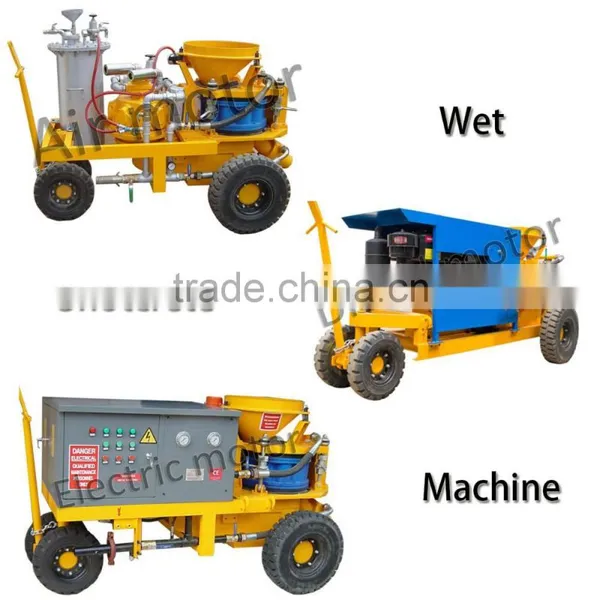

Basic: Electric drive can be combined with tyre chassis.
Extended (optional):
Air motor drive or diesel drive combined with Skid or Rail-wheel
LZ3000E wet-mix concrete spraying machine video application:
LSZ3000D yanmar diesel engine concrete sprayers wet-mix shotcrete systems technical data:

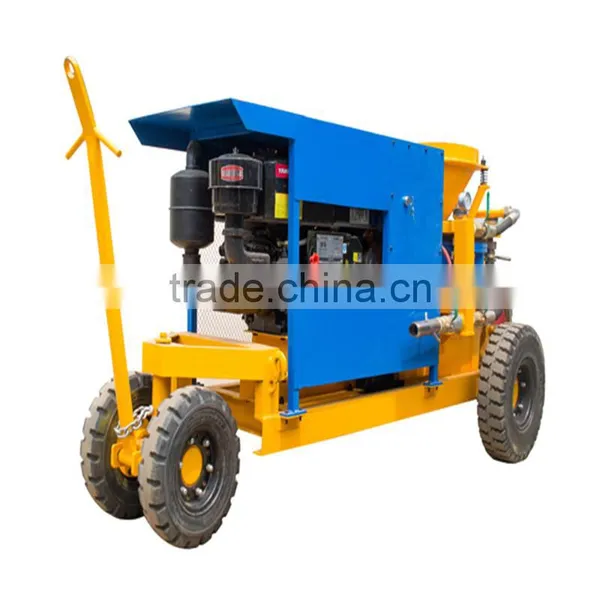

Diesel drive:
Output Capacity |
3-5m3 /h |
Max. Horizontal Conveying Distance |
35m(wet)/200m(dry) |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Max. Aggregate Size |
15 mm |
Conveying Hose Inner Diameter |
Dia.64 mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10~12m3/min(357-430CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
7.5-11r/min |
Diesel Engine |
20hp,2200rpm, Yanmar diesel |
Diesel Engine Starting |
Electric start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Air Vibrator |
OR100,Oli |
Overall Dimension(length×width×height) |
2.55×1.05×1.25m |
Dosing pump model |
BHA530 Dosing tank |
Net Weight |
1300kg |
Electric drive:
Specification (with Electric motor drive): | |
Rated Output |
5m3 /h |
Max. Horizontal Conveying Distance |
35m(wet)/200m(dry) |
Max. Aggregate Size |
15mm |
Concrete Slump |
8 -15cm |
Conveying Hose Inner Diameter |
51/ 64mm |
Operating air Pressure |
0.3-0.6MPa (43-86PSI) |
Air Consumption |
10~ 12m3 /min(357-430CFM) |
Main Motor Power |
7.5kW(10hp) |
Dosing Pump: |
BRJ15 |
Dosing Pump Rated Pressure |
0.6MPa(86PSI) |
Dosing Pump Output |
17.5 -88L /h |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
1.17m |
Rotor Speed |
11r/mi |
Overall Dimension(L × W × H) |
2.05× 0.95× 1.18m |
Net Weight |
1200kg |
Air motor drive:
Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
Rated output |
5m3/h |
Max. horizontal conveying distance |
35m(wet)/200m(dry) |
Max. aggregate size |
Dia.15mm |
Concrete slump |
8~15cm |
Conveying hose |
Dia.50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
22m3/min (12+10) |
Loading height |
1.17m |
Rotor Rev. |
11r/min |
Rebound |
≤10 % |
Air motor power |
8kW |
Dosing pump model |
BHA530 Dosing pump |
Dosing pump rated pressure |
0.5MPa |
Dosing pump output |
0~100L/h |
Overall dimension(L×W×H) |
1950×1050×1360mm |
Weight |
1200Kg |
Accessories of Shotcrete Machine :
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Why choose us ?
1. We are China's leading shotcrete systems manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company:
FAQ:
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
