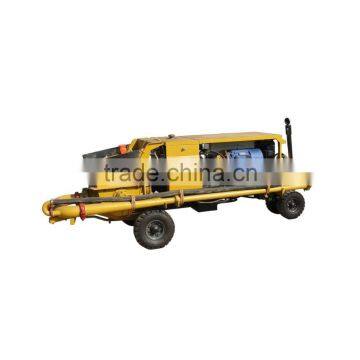

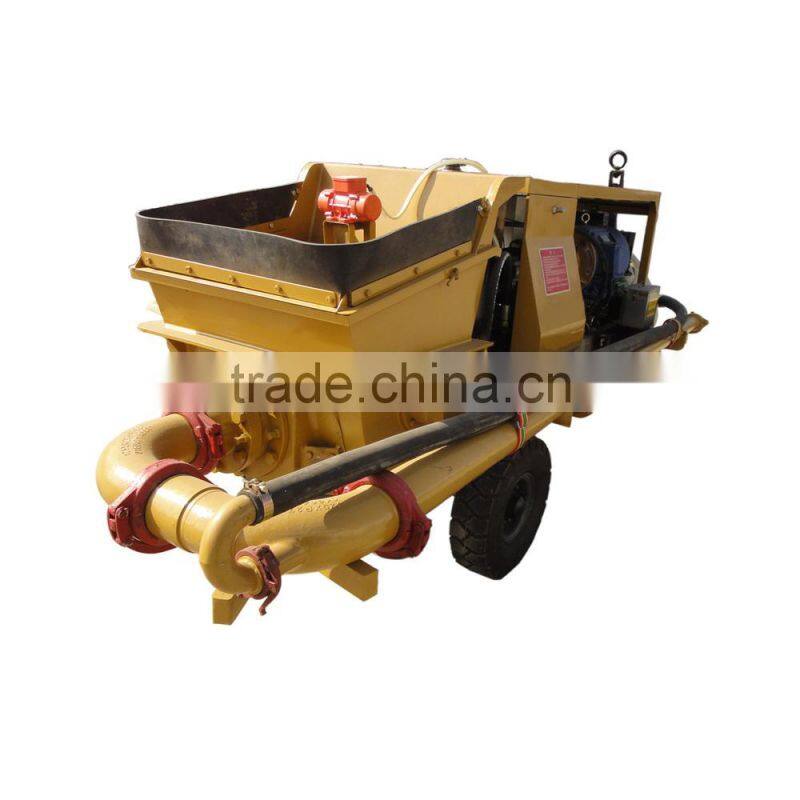

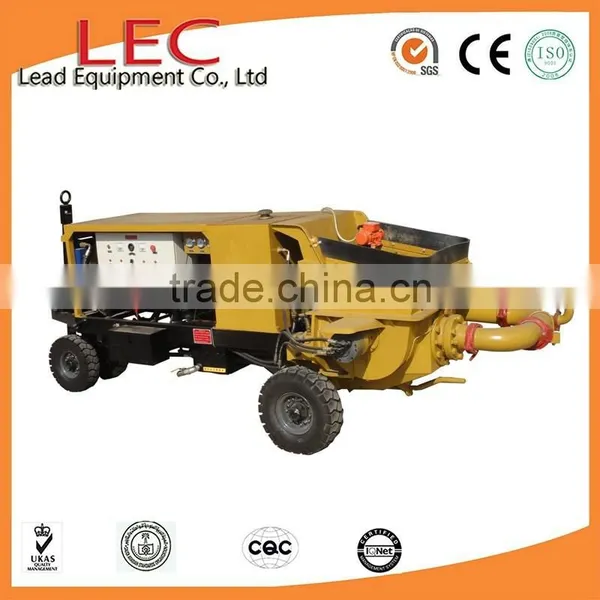

LPS5-15S hydraulic wet shotcrete machine concrete pump sprayer equipment
LPS5-15S hydraulic wet shotcrete machine concrete pump sprayer equipment description:
LPS5-15S hydraulic wet shotcrete machine concrete pump sprayer equipment can be used for conveying and spraying of plain concrete, fiber concrete.
Features:
- High efficiency: piston pump method for thick flow conveying.
- Low cost: big cylinder diameter, long stroke, thus lower reversing times, shorten wearing of spare parts.
- Stable: less reversing times, faster reversing speed, thus relieve pulsation phenomenon
- Automatic oil lubrication.
- Integration design.
Technical data:
Parameter |
unit |
LPS5-15S |
Rated output |
m³/h |
5-15 |
Rated pressure |
MPa |
4 |
Max. Rated vertical distance |
m |
50 |
Max. Rated horizontal distance |
m |
180 |
Distributing valve |
|
S tube valve |
Max. aggregate |
mm |
25 |
Slump |
cm |
12-23 |
Air consumption |
m³/min |
9-20 |
System air pressure |
MPa |
0.7 |
Working air pressure |
Mpa |
0.4-0.6 |
Rebound rate |
% |
less than 15 |
Dust density (near machine) |
mg/m³ |
less than 10 |
Conveying cylinder ID *stroke |
mm |
dia. 140*700 |
Pump motor power |
kw |
18.5 |
Dosing pump motor power |
kw |
0.55 |
Vibrator motor power |
kw |
0.25 |
Cooling fan motor power |
kw |
0.12 |
Voltage/frequency |
V/Hz |
380/50 |
Oil tank volume |
L |
128 |
Charging height |
mm |
1200 |
Dimension |
mm |
3270*1450*1450 |
Weight |
kg |
1800 |
Package
Why choose us ?
1. We are China's leading wet shotcrete manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:
FAQ:
1. Q: Is this equipment suitable for our project?
A: Please tell us more about your project and our techinical staff will offer you best solution.
2. Q: Do you have other similar machine?
A: Yes. we also offer rotor type shotcrete machine, concrete pump type shotcrete machine and shotcrete system with rotot arm.
If you have any question please feel free to contact me.
Thank you for your time and welcome to visit our factory!
