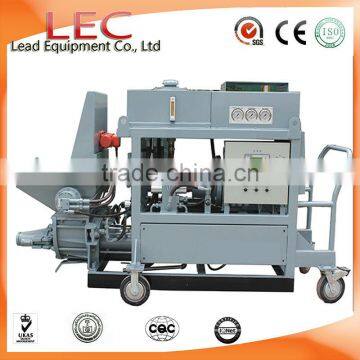

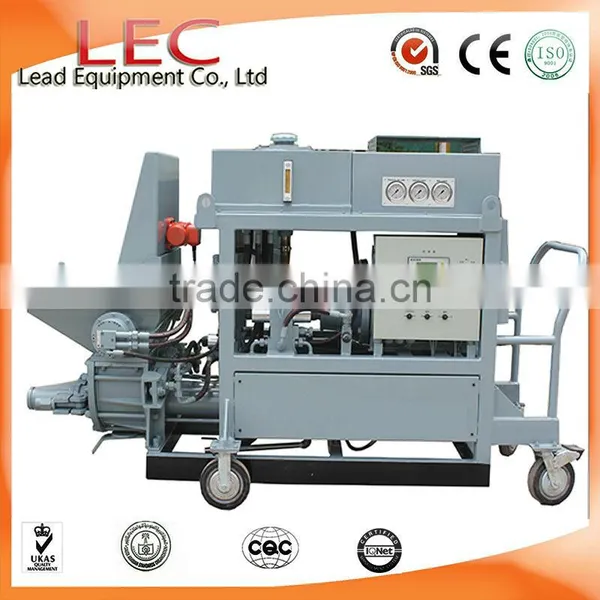

LPS7/8-15E electric type piston hydraulic mortar concrete pump
Mortar concrete pump Brief introduction:
LPS7/8-15E Hydraulic piston mortar pump (mini concrete pump) is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
This machine can also be used for wet concrete spraying together with compressed air system and concrete accelerator system.

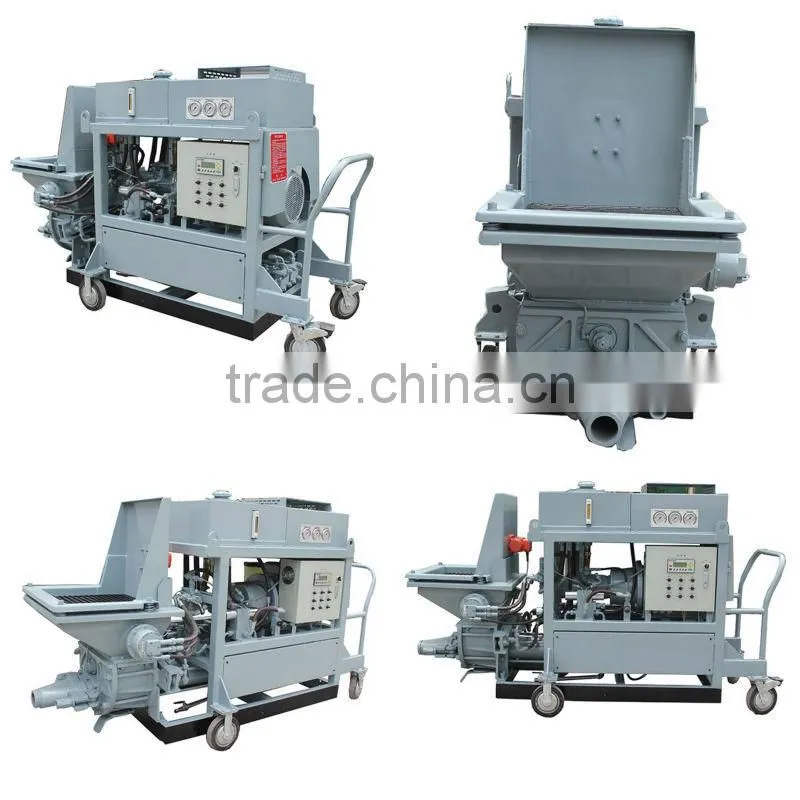

LPS7/8-15E variable output multifunction piston hydraulic mortar pump
Mortar concrete pump Features:
- Hydraulic double cylinder piston reciprocating convey
- Straight pipe distribution valve with small swinging resistance can switch quickly. It can spray wet concrete without interruption.
- The output is variable from 0 to 7m3/h as per need.
- It can use as a wet concrete spraying machine. The air switch remotely controls the main machine and dosing pump.
- Independent spring-loaded vibration plug can filter large size aggregate.
- LCD screen on the control panel can show pumping frequency, reversing time, voltage, cumulative working time etc.
- It can be controlled through local control or wired remote control.
- Air cooling system can cool the hydraulic oil effectively to make sure oil temperature below 55ºC.
- Automatic lubrication system can lubricate the concrete cylinder, mixer shaft and straight pipe valve rotation axis.

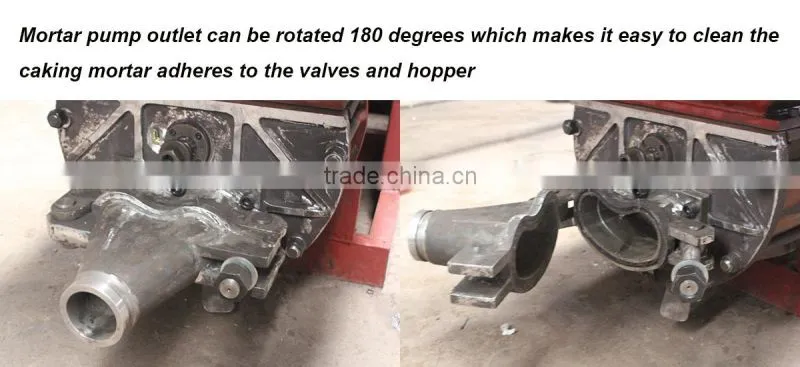

- Mortar pump outlet can be rotated 180 degrees which makes it easy to clean the caking mortar adheres to the valves and hopper.
Mortar concrete pump Specification:
Productivity |
0--7m3/h |
Max. conveying distance |
300m(Horizontal) 120m(Vertical) |
Max. aggregate size |
15mm |
Concrete slump |
8~20cm |
Fineness modulus of aggregate. |
≥2.5 |
Hose diameter |
51 (2″)mm |
Pump outlet pressure |
8Mpa |
Main electric motor power |
15kW |
Overall dimension(Tyre type)(L×W×H) |
2150×850×1248 |
Weight |
920Kg |
Optional parts:

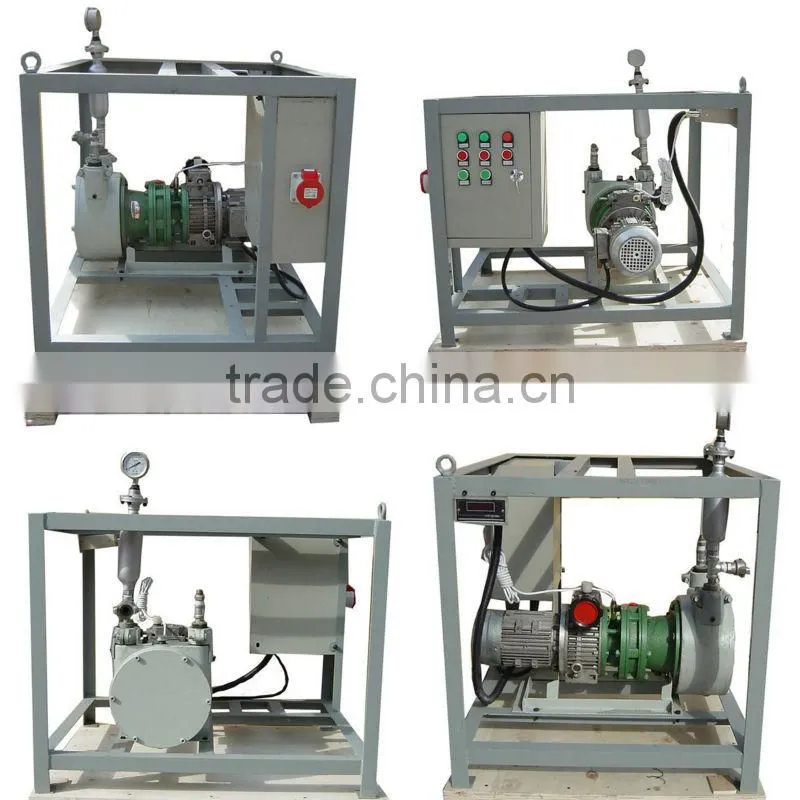

1. You can use this machine together with our LH15 dosing pump to spray wet concrete.

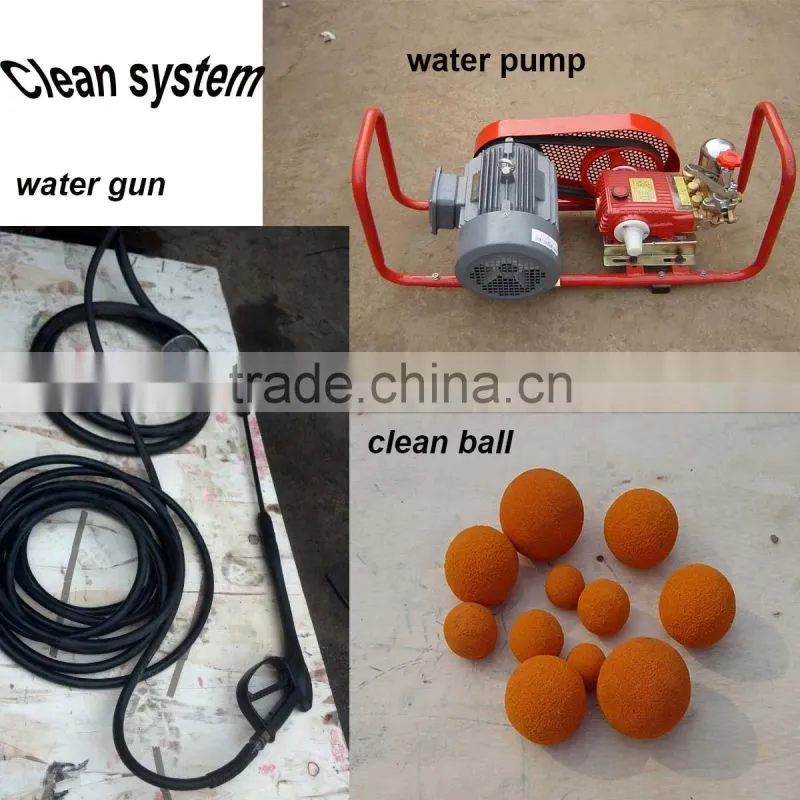

2.Clean system:

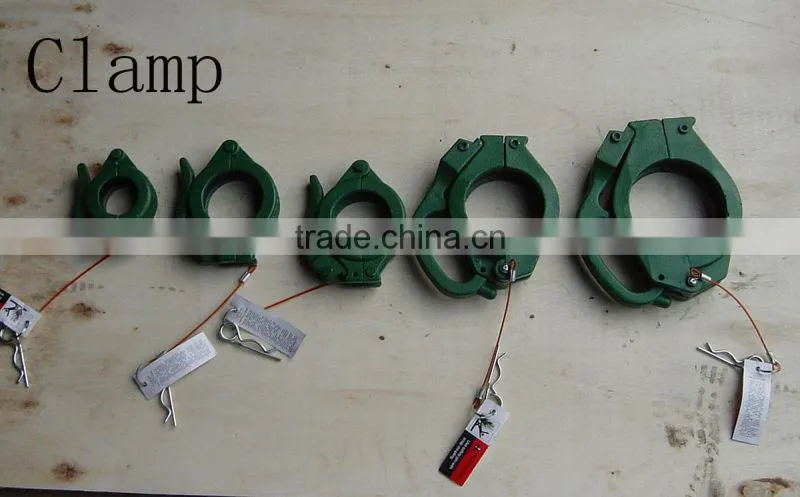

Clamp:
