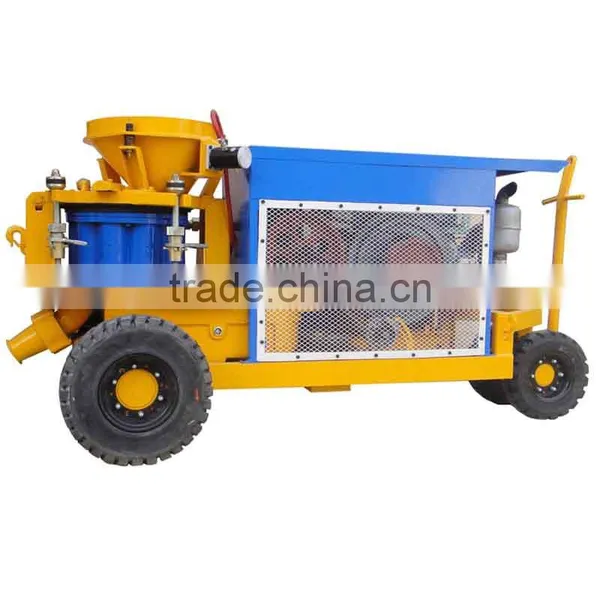

Customized rack type LZ-9A dry mix concrete spray tunnel guniting equipment
Customized rack type LZ-9A dry mix concrete spray tunnel guniting equipment description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 can be used for large-section tunnel building, mine, etc
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
Customized rack type LZ-9A dry mix concrete spray tunnel guniting equipment
LZ-9D dry mix shotcrete machine
LZ-9E dry mix shotcrete machine
Customized rack type LZ-9A dry mix concrete spray tunnel guniting equipment technical parameters:

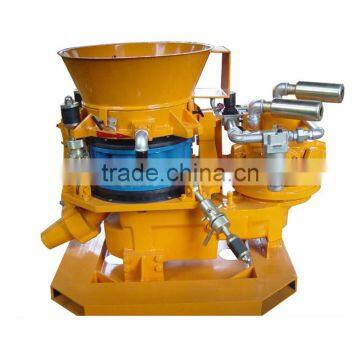

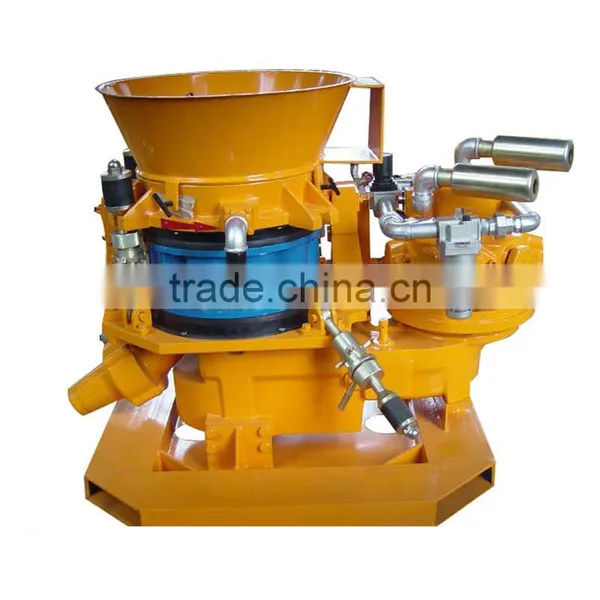

Air motor drive:
Output Capacity |
5-9m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Max. Aggregate Size |
Dia.20 mm |
Conveying Hose Inner Diameter |
Dia.64 mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material |
10~12m3/min(357-430CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
6-11r/min |
Air Motor |
TMH8A |
Air pressure for air motor |
0.5Mpa |
Air consumption for air motor |
10 m3 /min/357CFM |
Vibrator |
OR100,oil |
Overall Dimension(length×width×height) |
1.65×0.9×1.25m |
Net Weight |
900kg |
Other type:

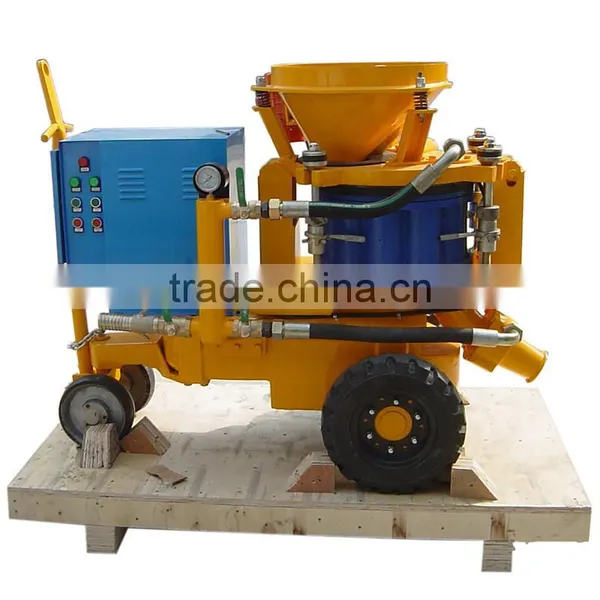

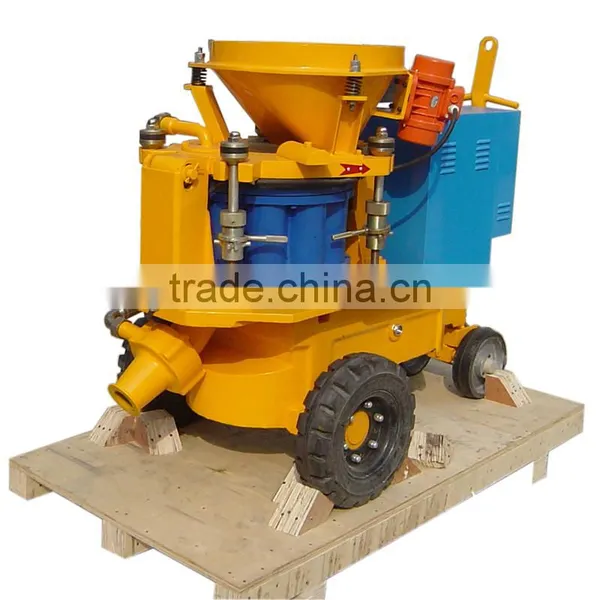

Electric drive:
Output Capacity |
9m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Max. Aggregate Size |
Dia.20 mm |
Conveying Hose Inner Diameter |
Dia.64 mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10~12m3/min(357-430CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Electric Motor |
7.5kW,Y132M-4,IP55 |
Vibrator Electric Motor |
0.15kW,XVM-A1.5-2 |
Available Voltage |
220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) |
1.65×0.9×1.25m |
Net Weight |
900kg |

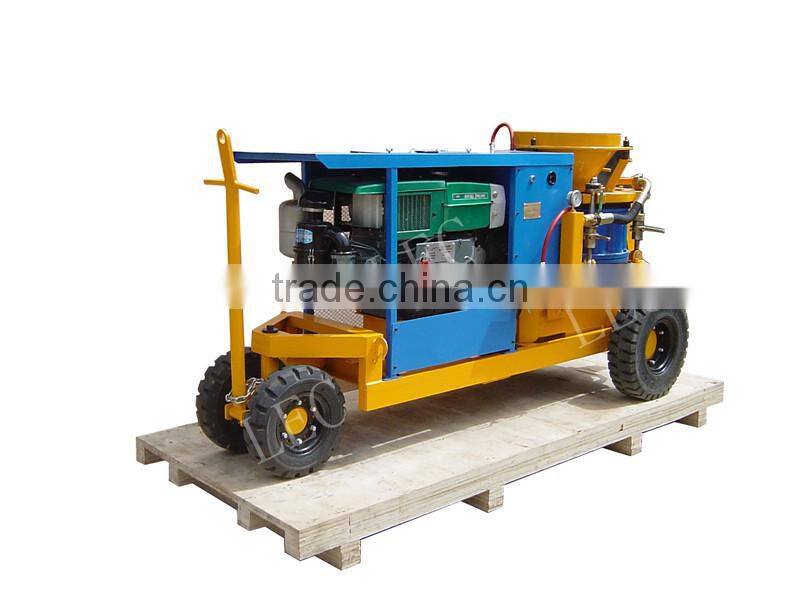

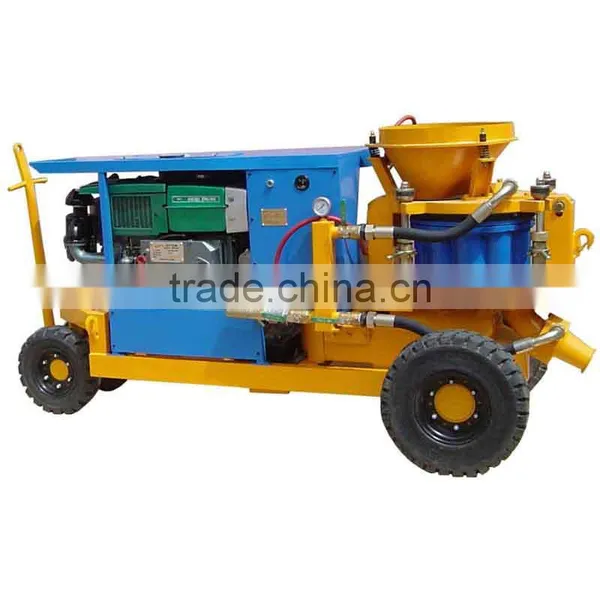

Diesel drive:
Output Capacity |
6-9m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Max. Aggregate Size |
Dia.20 mm |
Conveying Hose Inner Diameter |
Dia.64 mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10~12m3/min(357-430CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
7.5-11r/min |
Diesel Engine |
20hp,2200rpm, Radiator Cooling |
Diesel Engine Starting |
Electric start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Air Vibrator |
OR100,Oli |
Overall Dimension(length×width×height) |
2.66×1.11×1.50m |
Net Weight |
950kg |
High quality concrete spray tunnel guniting equipment spare parts:
Concrete spray tunnel guniting equipment application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Concrete spray tunnel guniting equipment package:
Why choose us ?
1. We are China's leading guniting equipment manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.

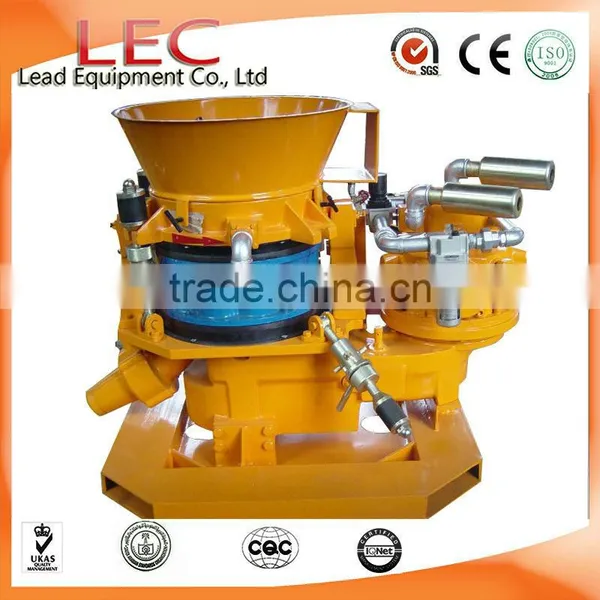

Certification of our company:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Thank you for your time and welcome to visit our factory!
