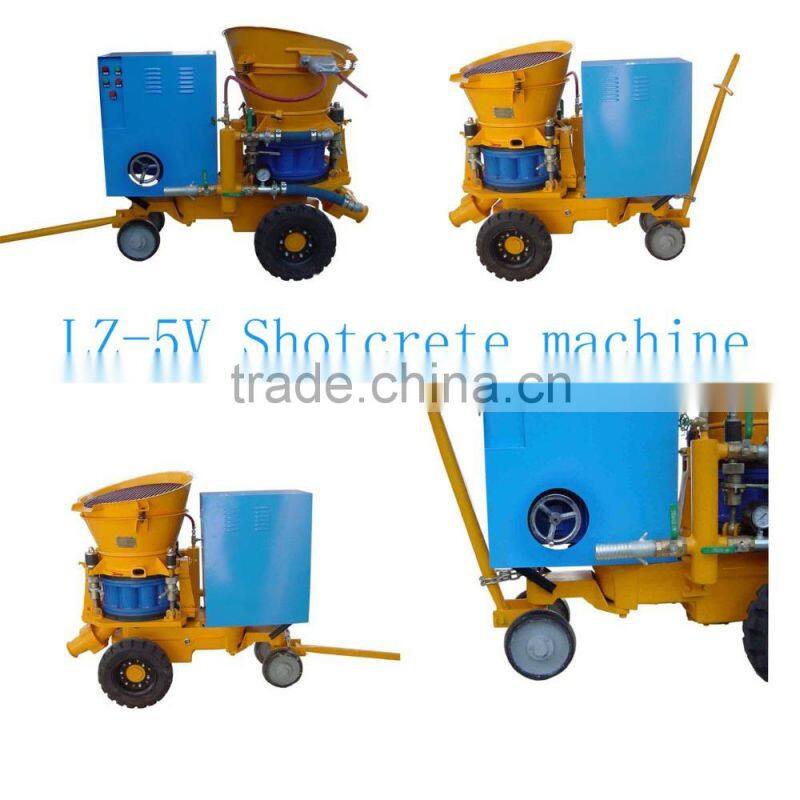

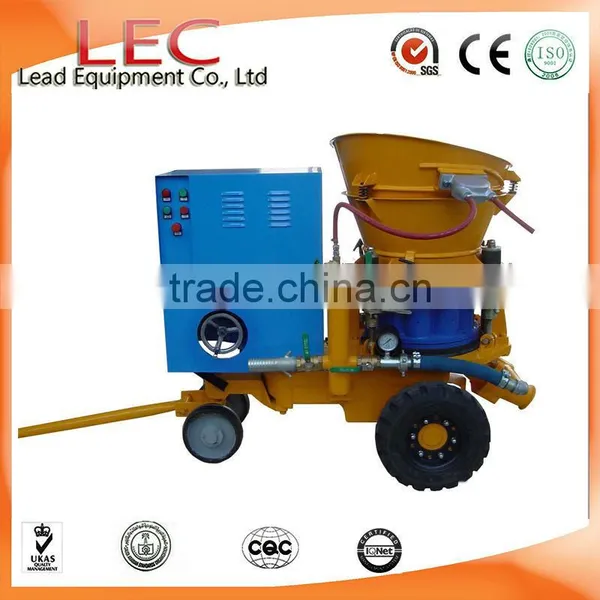

OEM supplier LZ-5V variable gearbox dry-type shotcrete machine
OEM supplier LZ-5V variable gearbox dry-type shotcrete machine description:
LZ-5 mine shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. LZ-5 mine shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
OEM supplier LZ-5V variable gearbox dry-type shotcrete machine Features
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
OEM supplier LZ-5V variable gearbox dry-type shotcrete machine application
LZ-5V dry-type shotcrete machine has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
OEM supplier LZ-5V variable gearbox dry-type shotcrete machine technical data:
Main technical data (electric drive)
Output Capacity |
1-5m ³/h |
Max. horizontal conveying distance |
200m |
Suitable mix ratio (cement/sand) |
≤1:4-5 |
Max. aggregate size |
15mm |
conveying hose inner diameter |
51mm |
Conveying pressure |
0.2-0.4MPa |
Air consumption |
7-8m ³/min |
Material charging height |
1.1m |
Rotor speed |
2.2-11r/min |
Electric motor type |
Y132M-4 |
power |
7.5kW/10hp |
Overall dimension (length×width×height) |
1.42×0.75×1.2m |
Net weight |
750kg |
Package:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Why choose us ?
1. We are China's leading dry type shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company
FAQ:
If you have any question please feel free to contact me.
Thank you for your time and welcome to visit our factory!
