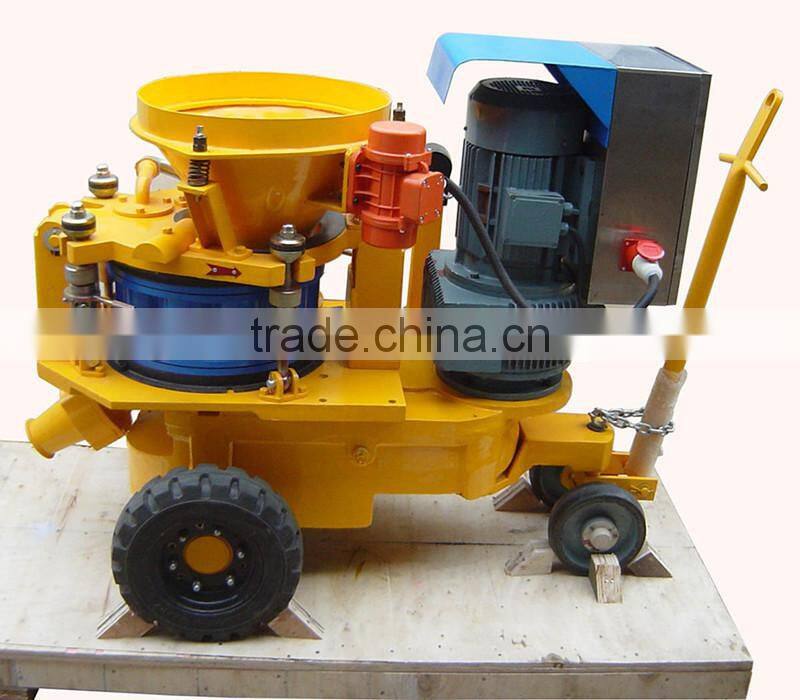

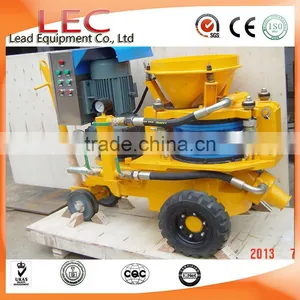

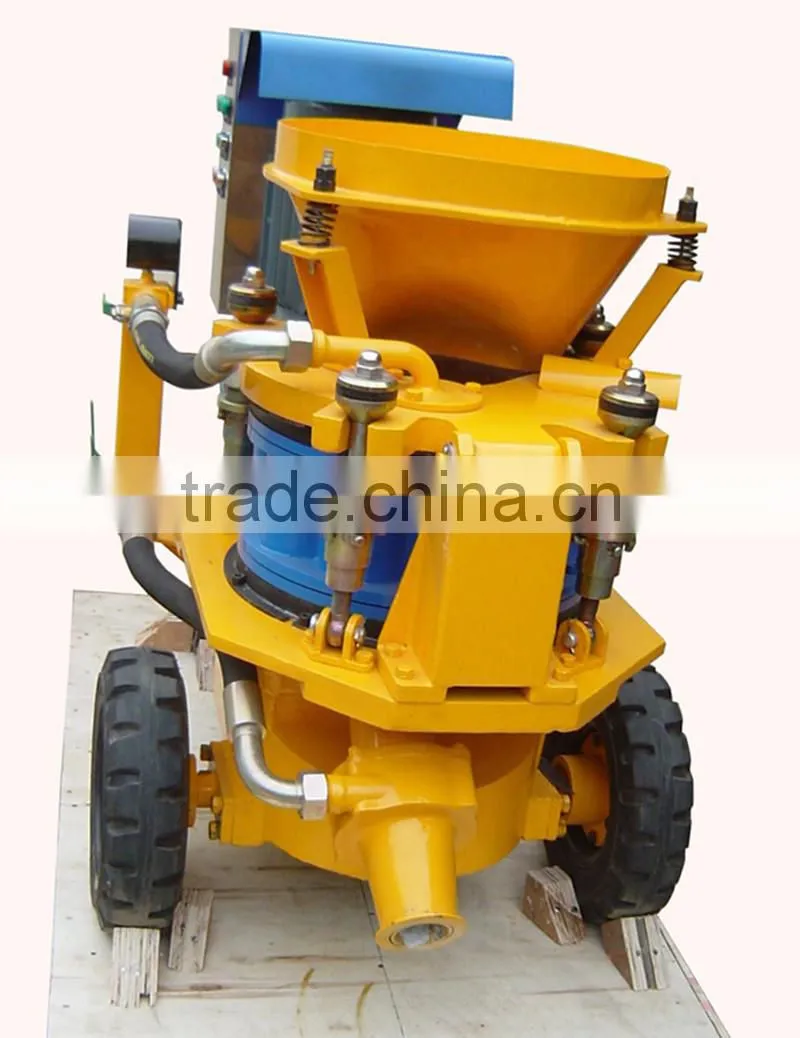

LSZ3000V variable output both dry and wet shotcrete spray machine
LSZ3000V variable output both dry and wet shotcrete spray machine description:
LSZ3000V wet / dry-mix concrete shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. Compared with the popular equipment, it has easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc.
LSZ3000V variable output both dry and wet shotcrete spray machine feature:
Ø For dry or wet mix shotcrete
Ø Mechanical speed control
Ø Durable spare parts
Ø Heavy duty solid wheels
Ø Function stable and reliable
Ø Can be customized
It can both for dry and shotcrete concrete spraying. Its spare parts are very durable.
For dry or wet mix shotcrete: The machine itself can be used as dry shotcrete machine. When it used with LH15 dosing pump, it can do wet shotcrete spraying.
LSZ3000V variable output both dry and wet shotcrete spray machine Application:
It’s mainly used for dry/wet spraying concrete. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
LSZ3000V variable output both dry and wet shotcrete spray machine technical data:
Rated output |
2-5m3/h |
Max. horizontal conveying distance |
35m(wet)/200m(dry) |
Max. aggregate size |
15mm |
Concrete slump |
8~15cm(wet) |
Conveying hose dia. |
50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
10~12m3/min |
Rotor Rev. |
5-12r/min |
Rebound |
≤10 % |
Main electric motor power |
7.5kW |
Variable gearbox: |
MBLY75 |
Overall dimension(L×W×H) |
1580×850×1250mm |
Weight |
950Kg |
Packaging & Shipping
Package:
Why choose us ?
1. We are China's leading shotcrete spray machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company:
