Help CenterStainless Steel Gas Filter Housing
Related Products

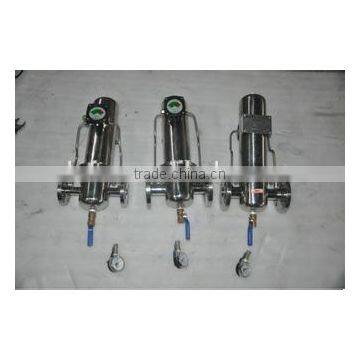

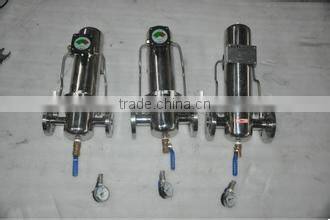

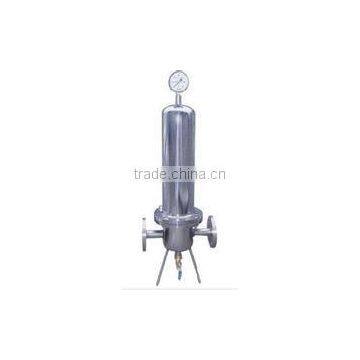

Gas Filter housing Introduction
DF's gas filter housing is designed to help remove both moisture and solid particles,such as pipe scale and rust from the steam supply.It is an stainless steel element.A single closure nut allows for ease of maintenance.while a cleanable element ensures optimum efficiency and prolonged life.
The main use of the gas filter housing is to clean up factory or plant steam to reduce levels of contamination, such as boiler feed chemicals carried carried over from the boiler off take, so that the end products not adversely affected.
Gas Filter housing Applications
1.Highly corrosive pure steam for sterilization of products and equipment in the biotechnology and pharmaceutical industries.
2.Steam for direct cooking of food products and sterilization of food and beverage containers
3.Clean steam for humidification of clean rooms in The pharmaceutical.biotechnology and electronic
4.Filtered /pure steam for autoclaves in the health care/pharmaceutical industries.
Gas Filter housing Order Information :
Product Drawings
Gas filter housing Main parmeters
Item | NO.OF Cartridges | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
ZTKQ-1R5 | 1*5" | 150 | 102 | 65 | 90 | 60 | 95 |
ZTKQ-1R10 | 1*10" | 300 | 102 | 65 | 90 | 60 | 95 |
ZTKQ-1R20 | 1*20" | 550 | 102 | 65 | 90 | 60 | 95 |
ZTKQ-1R30 | 1*30" | 800 | 102 | 65 | 90 | 60 | 95 |
ZTKQ-1R40 | 1*40" | 1050 | 102 | 65 | 90 | 60 | 95 |
