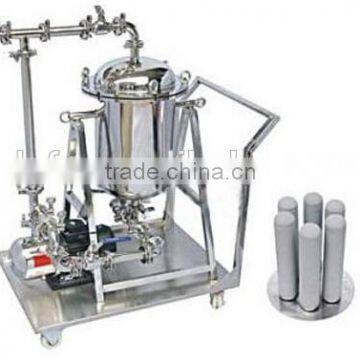

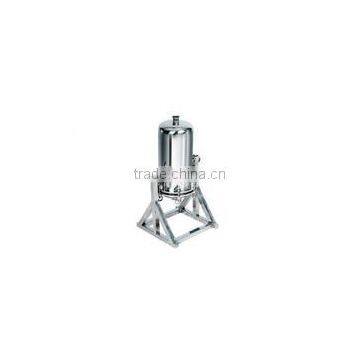

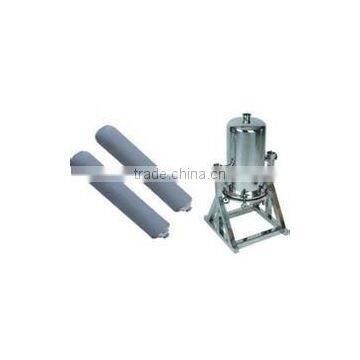

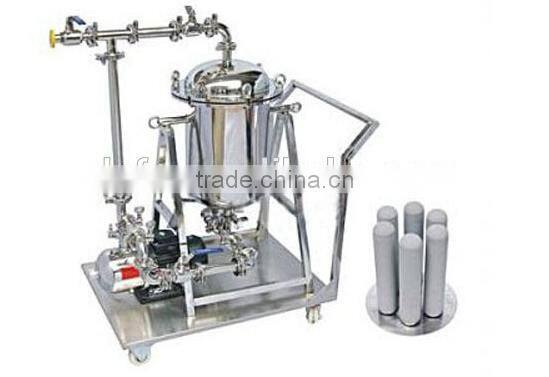

Medicine liquids decarbonization and gas filter.It can also replace sand core filter that is commonly used on large liquid infusion production lines.The shell of TL titanium rod filter of our company is made of SUS304 or SUS316 stainless steel .

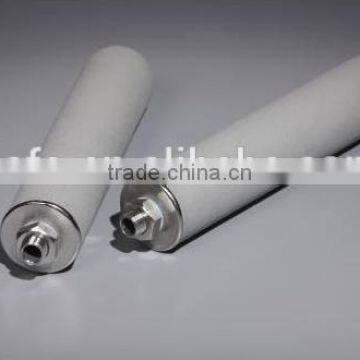

It has been proved to have good effects and technical indexes apply with GMP medical standard. The titanic stick is made of sintered titanium alloy powder.The products filtered by it have such characteristics as solid and liquid separation.
Main Technical Parameters
Filtration precision:4um-50um
Filtration efficiency:95%-99.99%
Working pressure:0.3mpa
Working temperature:230.c
Specification of titanic stick:60*300mm
Contrast Form Of Titanic Stick And Flow
| Model | TL-1 | TL-3 | TL-5 | TL-7 | TL-9 | TL-11 | TL-19 |
Specification core | 1 | 3 | 5 | 7 | 9 | 11 | 19 |
| Flow T/h | 0.3 | 0.9 | 1.5 | 2 | 2.5 | 3 | 5 |
Dimension L*W*H(mm) | 610*185 | 385*350*865 | 395*410*880 | 530*430*890 | 500*465*880 | 500*465*890 | 600*600*930 |
Technical Parameters
| Titanium rod number(core) | 1 | 3 | 5 | 7 | 9 | 11 | 19 |
| Theoretical flow (T/h) | 0.3 | 0.9 | 1.5 | 2 | 2.5 | 3 |
