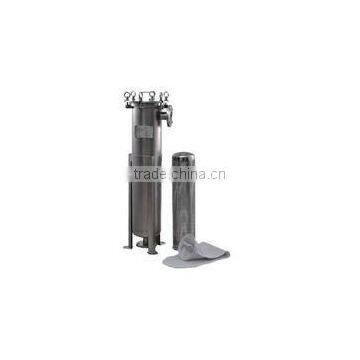

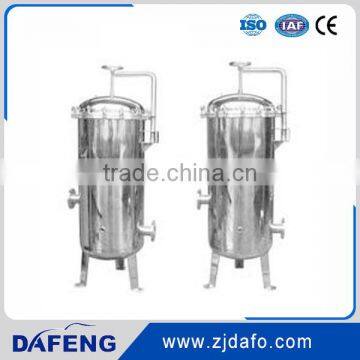

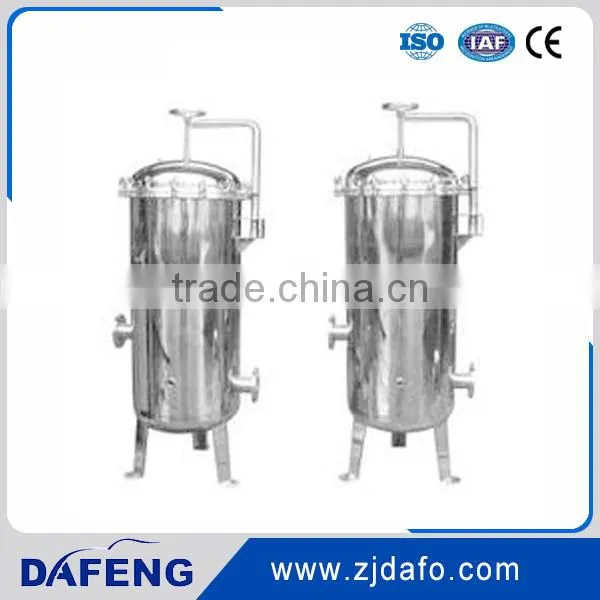

Side Entry Bag Filter
Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature.Effective filtering area is rather big,achieving more efficient filtering result.It is more convenient and swift to change the filter bag, thu to lower operating cost;The adjustable height makes the filter applicable to different occasions.
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
Bag filter characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter
trap into the basket, ensure 100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel
plate, with rarely fixtures materials after molding, polishing,.
3. Compact size and reasonable. Installation and operation is simple and
convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine
particulate material, the filters range from 1~800 micron;
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance,
high filtration efficiency. Function of one filter bag is 5-10 times than filter
core of the same type ,which can greatly reduce costs. Flow design can
meet the requirements of 1~500m3/h, down low the manufacture cost;
6. A wide range of uses, can be used for coarse filtration, middle Filter or
accuracy filter; It comes to lower investment cost, long life and low cost
when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment
7. In the same rational structure and operation of low-cost, effectiveness and
capacity of the filter, Bag filters takes lower price than foreign imports.
Technical Specification
| Name | Inner surface |
| max operate pressure | 1.0 |
| max operate temp | 110 |
| pressure tolerance on weld | 0.85 |
| corrosion by acid | 0 |

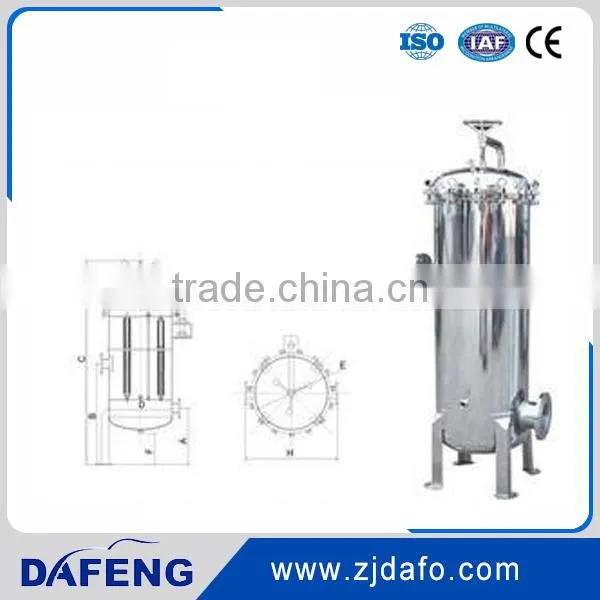

Main Parameters
| Item | A | B | C | D | E | H | |
| CD-1P1S | 540 | 410 | 140 | 45 | 190 | 550 | 206 |
| CD-1P2S | 880 | 730 | 140 | 45 | 190 | 800 | 206 |
| CD-1P3S | 380 | 100 | 40 | 150 | 450 | 133 | |
| CD-1P4S | 350 | 350 | 100 | 40 | 150 | 450 | 133 |
