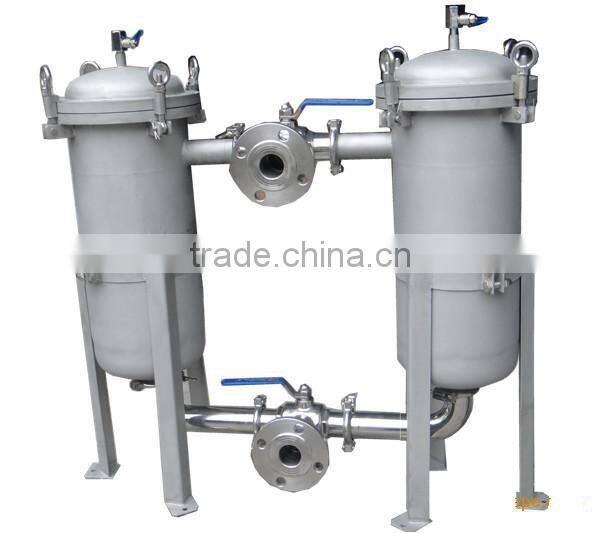

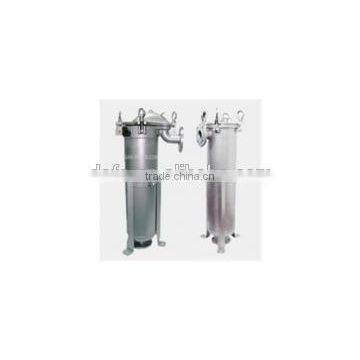

Help CenterSideline Bag Filter Housing
Related Products
Specifications
bag filter details
1.High operate pressure
2.Custom made service
3.High flow rate
4.Long service life
Bag Filter Housing Features
Top inlet with liquid flow through cover
Sizes for #01 single or #02 double-length filter bags
Cover positively seals filter bag
Stainless steel basket
Flanged connections or other type
Maximum operating pressure of 150 psi
Maximum operating temperature of 400F with Viton® seals
Domed cover with swing bolts
Mounting legs to adjust vessel height
Type 304 or 316 stainless steel, or carbon steel, bag filter housing
Bag Filter Housing Available Options
Steam jacket
Electro polishing
Heavy Duty Bag Filter Housings
Applications that require the installation of gauges, vents or pressurized air connections are easily accommodated by two 1/4"NPT(BSP) threaded cover taps. 316 stainless steel construction means superior corrosion resistance and consistent performance, year after year. A smooth, mirror finish, makes it easy to completely clean the interior of the vessel.
Bag filter housing Application: Automotive
Food and Beverage
Chemical Processing
Paints, Inks, Resins and Coatings
Electronics
Petrochemicals
Municipal Water Treatment
Industrial Water Treatment
Pulp and Paper
Pharmaceutical
Lubricants, Metalworking Fluids
Solvents
Bag Filter Housing drawing for refering
| Filter bag vessel Specification | |
| Material: | SS304 SS316L 904L or lined |
| Bag Size : | 1 2 3 |
| Inlet&outlet : | DIN ANSI Tri clamp NPT |
| Seal media : | BUNA N EPDM VITON SILCONE PTFE |
| Maximum Operating Pressure : | 150psi |
| Maximum Operating Temperature | 400F |
| Surface Finish | Bead blasted or polished |
