Help CenterMulti Bag Filter
Related Products
Specifications
1.Large liquid treat capacity
2.High filter efficiency
3.Simple operation
4.Low cost maintenance
5.High precision
Working Principle
Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
Characteristics
1,Unique design to prevent the bag sunk into basket under pressure,it ensure 100% no spills.
2,Rational allocation of seals on both single bag and multi-bag filter.It ensures the reliability of the sealing system.We can use ordinary steel ring sewn bag, or weld melt bag, to ensure no spill phenomenon.
3,Basket is made of perforated mesh, with molding, polishing, the impurities won’t stick with it.
4,A variety of optional material for basket, such as high-quality stainless steel SS304,SS316, we can also provide a variety of special metal filter container. Peide water treatment company provides economical filters, can provide users with a more affordable option.
5,Compact structure, reasonable size. Simple to install and operate, convenient, small occupation.
6,High filtration accuracy, for any fine particles or suspended matter, Range from 1 to 800 microns;
7,Unit filter area is large, a smaller filtration resistance, high filtration efficiency. A bag filter function is equivalent to 5-10 times of filter element of the same function,it can greatly reduce the cost; Range of flow rate: 1 ~ 1000m3 / h.
8.Extensive application:it can be used for coarse filtration, medium filter or fine filter.Compared with frame fine filter, cartridge filter, raw water pre-filter and fine filter and other devices,it is with low investment, longer lifetime and low operation cost, filter bag can be used repeatedly. 9.In the same reasonable structure, low operating costs, filter effectiveness and treatment capacity, the price is far lower than imported bag filter.
Application
1 Food and beverage industry: beer, wine, wine, sake, liquor, wine,
fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP.
2 Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered.
3 Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration.
4 Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration
5 Textile, printing and dyeing, paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter.
6 Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration.
7 Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration.
8 The electronic and electroplating industry: a variety of plating solution and water filtration.
9 Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
10 Other liquid filtration.
Since the bag filter using the company's products in Europe and America standard production, matching the imported materials, processing technology and standards of the bag, so that the user can ensure the accuracy of the final filter. Users can filter according to different needs, matching different shapes, different apertures, different structures and different material of the bag, in order to obtain the most economical and effective filtering effect.

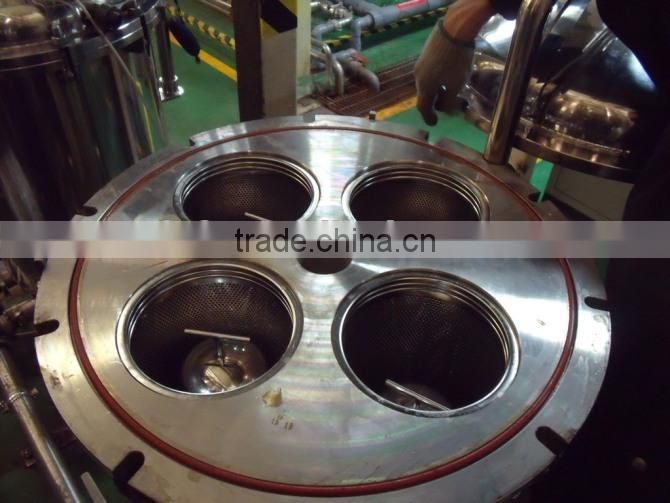

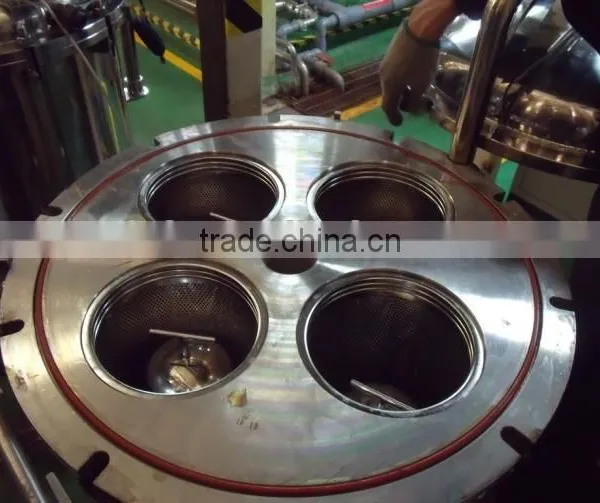

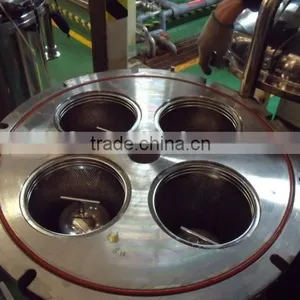

Internal structure
1. Each bag has a separate locking device with no side leakage opportunities.
2. Integrated design of precision without distortion.

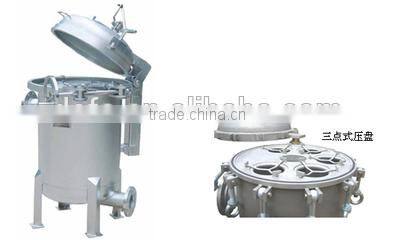

3. Integrated precision with lifting device.
4. O-ring seal, high-strength and quick bolts.
Application
Paint, Beer, Vegetable oil, Pharmaceuticals, Cosmetics, Chemicals, Petroleum products, Chemicals, Electroplating solution, Milk, Mineral water, Hot solvents, Latex, Industrial water, Coatings and paints, Sugar, Molasses, Resins, Inks, Industrial waste water, Juice, Cooking oil, Wax, Precision filters and other industries.
Parameter
Working pressure: 0.05MPa-0.6MPa
Working temperature: 5 ℃ -40 ℃ (special temperature can be customized)
Filtering Accuracy: 1μm-800μm
single bag Flow: 6.0 m3 / h-12.0 m3 / h
Operation mode: manual or automatic control
cylinder Material: 304,316L
Many bags filter parameter
Model | Filter diameter | Filter bag quantity | Filter area | Inlet and outlet diameter | Treat liquid capacity(m3/H) | Withstand pressure MPA |
DF02-2# | φ400 | 2 | 1m2 | DN80mm | 80 | 0.6-1.6 MPA |
DF03-2# | φ500 | 3 | 1m2 | DN100mm | 120 | 0.6-1.6 MPA |
DF04-2# | φ600 | 4 | 2m2 | DN125mm | 160 | 0.6-1.6 MPA |
DF05-2# | φ650 | 5 | 2.5m2 | DN125mm | 200 | 0.6-1.6 MPA |
DF06-2# | φ700 | 6 | 3m2 | DN150mm | 240 | 0.6-1.6 MPA |
DF08-2# | φ800 | 8 | 4m2 | DN200mm | 320 | 0.6-1.6 MPA |
DF10-2# | φ1000 | 10 | 5m2 | DN250mm | 400 | 0.6-1.6 MPA |
DF12-2# | φ1000 | 12 | 6m2 | DN250mm | 480 | 0.6-1.6 MPA |
DF16-2# | φ1200 | 16 | 8m2 | DN300mm | 640 | 0.6-1.6 MPA |
DF20-2# | φ1400 | 20 | 10m2 | DN300mm | 800 | 0.6-1.6 MPA |
DF24-2# | φ1400 | 24 | 12m2 | DN350mm | 1000 | 0.6-1.6 MPA |
