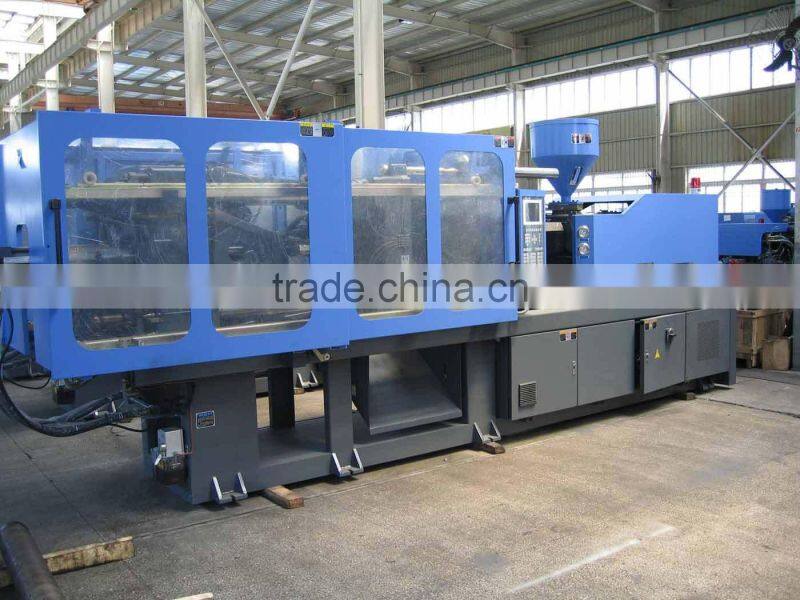

Injection Moulding Machine
This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
CLAMPING 1. FEA designed double-toogle five-joint clamping machinery.
2. High rigidity mould platen with enlarged space between tie bar, fit for larger scope of the moulds.
3. Large moving die stroke with smooth & fast motio.
4. Electrical & mechanical safety protection device 5. Automatic centralized lubrication system 6. Gear regulating the mould driven by oil motor
INJECTION UNIT -Twin cylinder balanced injection system -High torque oil motor directly drives screw to complete the pre-injection -Specific screw and barrel designs are available for processing different material requirements to ensure the production quality -Multiple-stage control for pressure, speed, position to inject, keep pressure, charge material
CONTROL UNIT -It utilizes the plastic injection moulding machine special-purpose computer with rapid response, interactive interface -Regulate barrel temperature deviation automatically -Multiple-unit plastic moulding data memory system -Main electric components with world famous brand ensuring safety performance of electric devices -It real-timely monitors various actions and gives automatic warning for its defects -Clamp, injection, ejection action can choose linear displacement sensor for its control
HYDRAULIC UNIT -Main hydraulic components with world famous brand, ensuring stable quality of the machine -Low noise & rapid response oil pump system. -Adopt the cooling water flow distributor, controlling the cooling temperature easily.
| ITEM | UNIT | DATA | |
| ZS3280 | C | ||
| Injection Unit | Screw Diameter | mm | 70 |
| Screw L/D Ratio | L/D | 19.5 | |
| Cylinder head Volume | cm 3 | 1070 | |
| Shot Weight | g | 1000 | |
| Plastic Rate(PS) | g/s | 62 | |
| Injection Rate(PS) | g/s | 350 | |
| Injection Pressure | Mpa | 135 | |
| Clamping Unit | Clamping Force | KN | 3280 |
| Max mould Opening Stroke | mm | 585 | |
| Mould Thickness(Min-Max) | mm | 220-620 | |
| Distance Between Tie-Bars | mm | 630×630 | |
| Ejection Force | KN | 70 | |
| Ejector Stroke | mm | 150 | |
| Others | Pump Motor Power | KW | 30 |
| Heating capacity of screw cylinder | KW | 16.55 | |
| Oil tank capacity | L | 620 | |
| Rated Pressure of Oil pump | Mpa | 16 | |
| Machine Dimensions (L*W*H) | m | 6.33×1.59×2.2 | |
| Machine Weight | T | 11 | |
| Mould Orientation Ring Diameter | mm | Φ160H7 | |
| Sphere Diameter of Nozzle | mm | SR15 | |

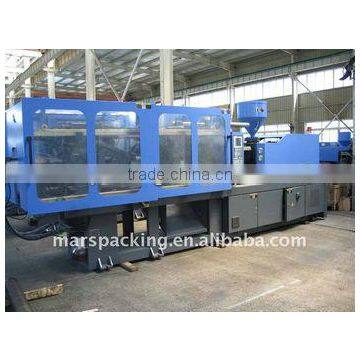

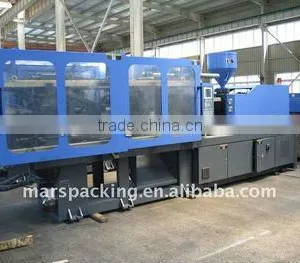

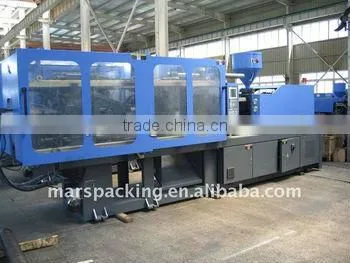

Product show
