Plastic bottle blowing machine/ Semi-Automatic Bottle Blow Moulding Machine/ PET bottle making machine
Features:
1) pet bottle machine manufacturers is mainly used for the production for PET,PP,PE,PVE,PA,PS,and other plastic containers,can produce various shape of container.
2)a fully automated system design.Can greatly save you labor costs.
3) pet bottle machine manufacturers automatic production,low investment,high efficiency,safe,fast,easy to operate,,and is conductive to troubleshooting and maintenance.
Specification:
semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment,easy and safe to operate
Main parameter: | ||
Model |
HY-B-II |
|
|
Main machine
|
Product material |
PET/PC |
Volume |
10ML-2000ML |
|
Theoretical output |
1600-1900PCS/H |
|
Preform length |
15mm-260mm |
|
Preform inner diameter |
Φ15mm-100mm |
|
Max. mould plate Dimension(L x W) |
400x450mm |
|
Max.mould thickness |
370mm |
|
Clamping force |
100KN |
|
Mould opening stroke |
350mm |
|
Blowing Air Pressure |
<=3.0 Mpa |
|
Working Pressure |
<=1.0mpa |
|
size and weight |
Main machine (L x W x H) |
160×62×165cm×2 |
Main machine weight |
550Kg×2 |
|
Heater (L x W x H) |
187×63×145cm |
|
Heater weight |
250Kg |
|
Power |
14 kw |
|

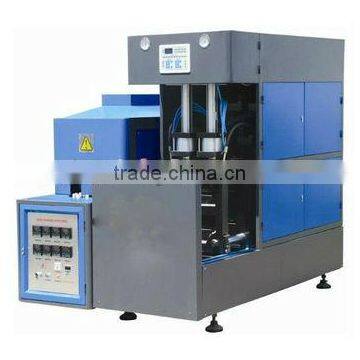

Product show
