4 Gallon PET Bottle Blowing Machine

blow moulding machine is used for making PVC,ABS,PC,HDPE,LDPE,EVOH PE PP,PC,EVA,bottle,can,tank,etc,

it can use the granule to make directly

4 gallon pet bottle blowing machine features:

PLC+touch screen, making the operation easy. Automatic malfunction alarm with self-diagnosis, making the malfunction clear at a glance.

Center input die head, eliminating the knit line completely and making it easy to change the material and color.

Double linear rolling motion guider in moving, opening and closing mold, making the clamping force equally distributed,

so the cut is smoother.

Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving.

High speed and efficient plasticizing system, mixing well and ensuring the produce purity.

4 Gallon PET Bottle Blowing Machine
Technology parameter:

Material: PE.PP.PA....

Max container capacity L: 2

Number of die set: 1.2.3.4.

Output(Dry Cycle) Pc/hr: 900×2

Machine dimension(L×W×H) M: 2.8×2.2×2.4

Total weight ton: 4

Clamping unit

Clamping force KN: 40

Platen opening stroke mm: 128-368

Platen size mm :300×320

Max mould size(W×H) mm: 300×320

Mould thickness mm: 153-300

Power

Max drive KW: 20.5

Total power KW: 26

Fan power for screw KW: 0.14×3

Air pressure Mpa: 0.6

Air consumption m³/min: 0.5

Average energy consumption KW: 15

Extruder unit

Screw diameter mm: 60

Screw L/D ratio L/D: 24

Plasticizing capacity Kg/hr: 70

Number of heating zone zone: 3

Extruder heating power KW: 6.5

Extruder driving power KW: 15

Die-head

Number of heating zone Zone: 3

Power of die heating KW: 1.8

Max die pin diameter mm :100

Center distance of double die mm: 130

Center distance of tri-die mm: 110

Center distance of tetra-die mm: 60/80

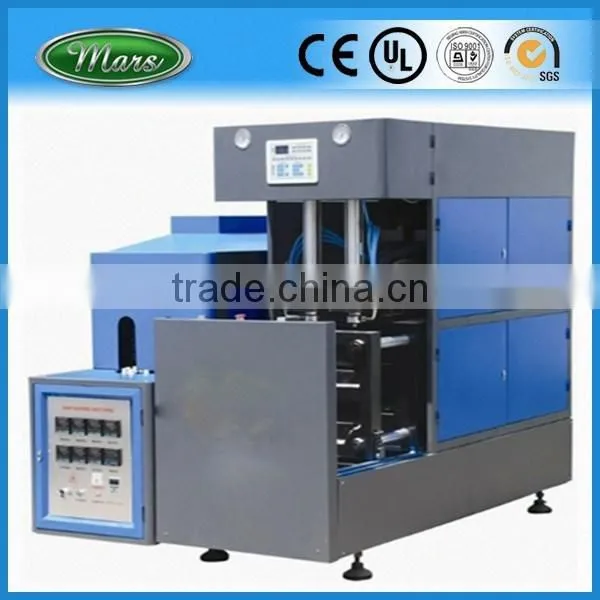

4 Gallon PET Bottle Blowing Machine Product show
