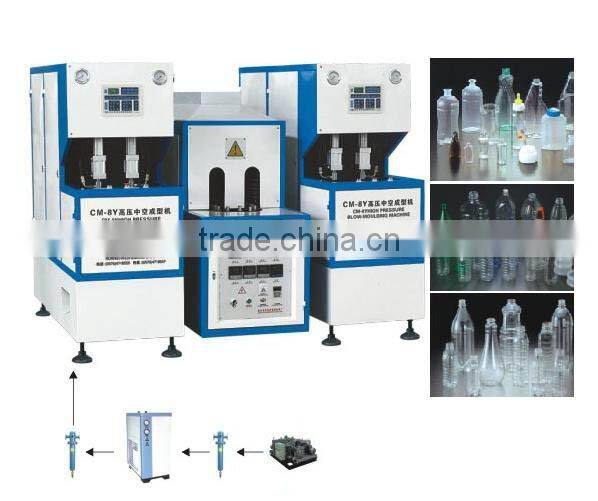

Semi-auto 5 Gallon Plastic Barrel Blow Moulding Machine
US$ 11,000 - 12,000
/ Set
1 Set(Min. Order)
- Shanghai
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | No | Place of Origin | Jiangsu, China | |
| Brand Name | Mars | Model Number | BM-S5 | |
| Voltage | 380V | Power(W) | 35Kw | |
| Dimension(L*W*H) | 2200*700*22500mm | Weight | 1500Kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Feature
- Adopt the new type double bend arm and four pull rod-clamping structure(won the patent). Cross direction; middle mould board is move parallel;the distance between two mold board is adjusted by the chain wheel. Thus the clamping force is very strong.
- The machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
- Adopt the straight slide way, reduce the friction and lengthen the life of the machine.
- Double start working button, which is designed for avoiding for you injury.
- Power saving design that can increase your profits.
- The single direction of pre-form placing and bottle picking , which increase the output.
- Sepregate type air controlling system, which is designed for avoiding waste pollution.
- The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
General Specifications
| Model No. | JN20L-C |
| Theoretical output | 120pcs/hr |
| Heating capacity | 35kw |
| Max bottle volume | 30L |
| Blowing pressure | <3.5Mpa |
| Motion pressure | <1.0Mpa |
| Max diameter*height | Φ280*H450mm |
| Mould thickness | 300-400mm |
| Weight | 1500kg |
| Main machine | 2200*700*2250mm |
| heater | 2200*700*1700mm |

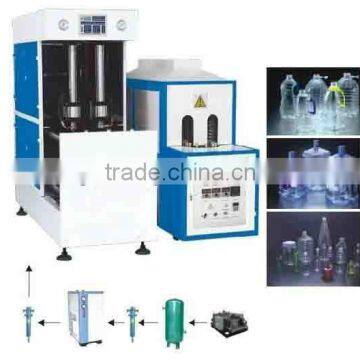

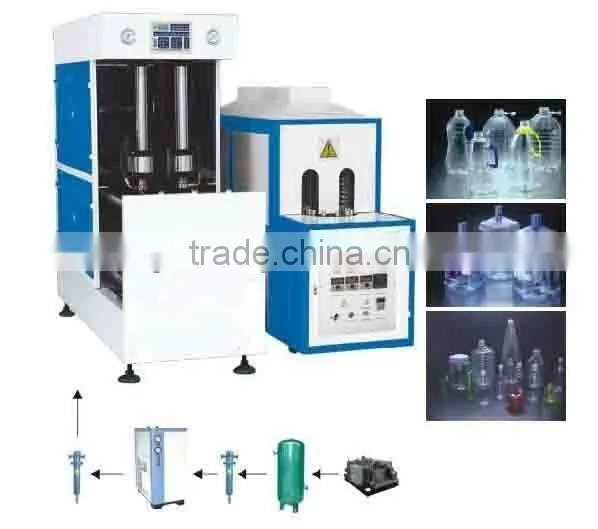

Product show
