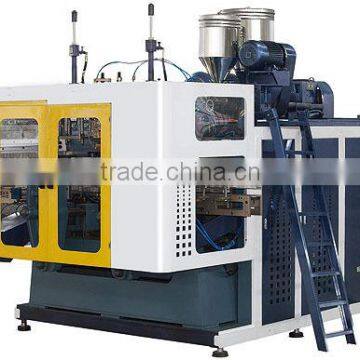

PE Full Automatic Bottle Blow Moulding Machine
Features:
I.Electrical-control system:Japanese Mitsubishi PLC + touchscreen control system ,
All process setting,alteration,search, monitoring and fault detection can be realized
via the touch screen,in the wprking principleof no-point contact,the elements are
very durable.
II.Hydraulic system:under proprtional pressure control,the system is equipped
with international famous-brand hydraulic elements,thus working stably and
reliably.
III.Plasticizing system:highly-efficient plasticized and mixed bolt ensures
plastics are plasticized fully and evenly.
IV.Soeed regulator:frequency cintrol+reduction box,enjoying steady
regulation,low noise and long life.
V.Mold opening,closing and moving system:large beam arm,3-point position,
and mold opening,closing system with central mold clanping,as to ensure long
life.Molds are clamped in balance,enjoying no deformation,high precision,
small resistance and high speed.
Purpose:
It is designed for 3-layer compounded bottles below 1000ml .high barrier composite bottle compound-formed with PE+AC+EVOH.
item |
unit |
data |
||
Main screw |
diameter |
MM |
70+30+30+20 |
|
screw L/D ratio |
L/D |
25:1 |
||
driving power |
KW |
15+3+3+1.5 |
||
heating capacity |
KW |
18.5 |
||
Max products capacity |
MM |
300 |
||
Plasticization capacity |
KG/HR |
80 |
||
Oil pump power |
KW |
11 |
||
Clamping power |
Ton |
11 |
||
Mold plate size |
MM |
410x410 |
||
Min. mold thickness |
MM |
250 |
||
Range of mold plate |
MM |
250~600 |
||
Mold plate stroke |
MM |
500 |
||
Heating zone |
---- |
13 |
||
Center distance |
MM |
-- |
||
Total power |
KW |
52 |
||
Average power |
KW |
36 |
||
Air pressure |
MPA |
0.5~0.8 |
||
Machine size(L*W*H) |
M |
3.1x1.8x2.7 |
||
Total weight |
TON |
7.5 |
||
|
|
|||

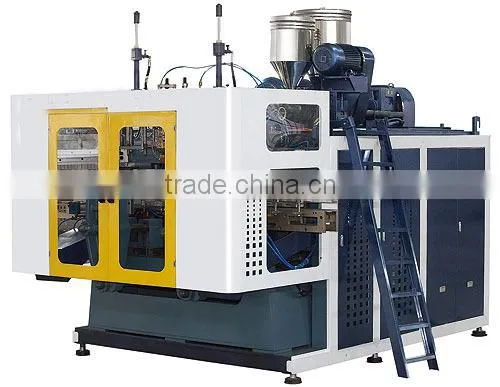

Product show
