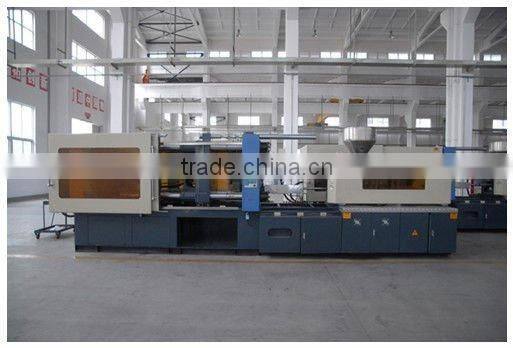

Plastic parts making machinery manufacturer
Feature:
1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container
Main Parameter for Plastic parts making machinery manufacturer
Specification Table | CZ-500 | ||
A | B | ||
Injection Unit | Screw Diameter (mm) | 28 | 32 |
Screw L/D Ratio (L/D) | 21.5 | 20 | |
Shot Size(Theoretical) (cm³) | 63 | 82 | |
Injection Weight ( g) | 57 | 73 | |
Injection Rate (g/s) | 55 | 66 | |
Plasticizing Capacity (g/s) | 6.9 | 8.4 | |
Injection Pressure (Mpa) | 168 | 129 | |
Screw Speed (rpm) | 175 | ||
Clamping Unit
| Clamping Force (KN) | 500 | |
Toggle Stroke (mm) | 245 | ||
Space Between Tie-Bars (mm) | 280X260 | ||
Max.Mould Height (mm) | 280 | ||
Min. Mould Height (mm) | 100 | ||
Ejector Stroke (mm) | 55 | ||
Ejector Tonnage (KN) | 18 | ||
Other
| Max.Pump Pressure (Mpa) | 16 | |
Pump Motor Power (KW) | 5.5 | ||
Heating Power (KW) | 3.1 | ||
Machine Dimensions(LxWxH) (m)
| 2.9X1.1X1.5 | ||
Machine Weight(Approximate ) (t )
| 1.5 | ||
plastic rack parts making machine
INJECTION MOLDING MACHINE
PLASTIC MACHINE
