Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > LIANJI Plastic Extrusion Blow Molding Machine

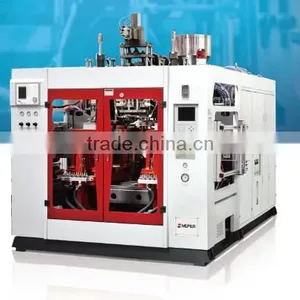

LIANJI Plastic Extrusion Blow Molding Machine
US$ 99 - 199
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Extrusion Blow Molding MachineUS$ 99 - 199MOQ: 1 Set -
Plastic Extrusion Blow Molding MachineUS$ 99 - 199MOQ: 1 Set
-
50T Plastic Injection Molding Machine SupplierUS$ 11,800 - 11,800MOQ: 1 Set
-
Hopper Dryer for Plastic Industry for Injection Molding MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
Plastic Blow Moulding MachinesUS$ 99 - 199MOQ: 1 Set
Condition
New
Application
Pipe
Plastic Processed
PP
Screw Design
Single-screw
Automatic Grade
Fully Automatic
Place of Origin
Zhejiang, China
Brand Name
LianJi
Model Number
MP70F
Voltage
380V 50HZ
Power(W)
49.14 kw
Dimension(L*W*H)
3.6*2.2*2.36 m
Weight
5.5T
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Parameters
SPECIFICATIONS |
material |
PE PP PVC PA |
Max hollow product volume |
5 L |
|
Diehead amount |
1,2,3,4,6 Set |
|
Size(LXWXH) |
3.6×2.2×2.36 m |
|
Machine Weight |
5.5 Ton |
|
CLAMPING |
Clamping stroke |
75 kN |
Template distance |
180-480 mm |
|
Template stroke |
300 mm |
|
Max template size(LXWXH) |
430×400 mm |
|
EXTRUDER UNIT |
Screw Dia |
70 mm |
Screw L/D ratio |
24 L/D |
|
(HDPE)Plasticizing capacity(HDPE) |
70 Kqh |
|
Screw heating zone |
3 zone |
|
Screw heating power |
14.1 kw |
|
Screw fan’s power |
0.18 kw |
|
Extrusion motor’s power |
18.5 kw |
|
DIE HEAD |
Diehead heating zone |
2 zone |
Diehead heating power |
6.5 kw |
|
ENERGY-CONSUMPTION |
General power |
49.14 kw |
Oil-pump motor power |
9.5 kw |
|
Air pressure |
0.6-0.8 Mpa |
|
Average power |
28 kw |
|
Compressed air dosage |
1.2 m3/min |
|
Cooling water dosage |
40 L/min |

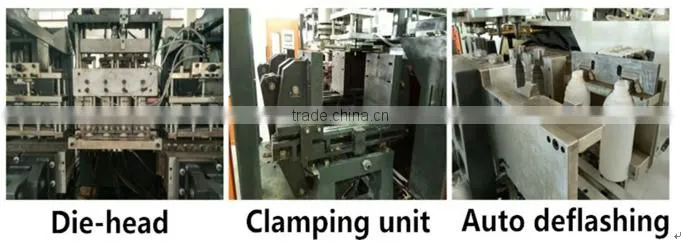

Model display

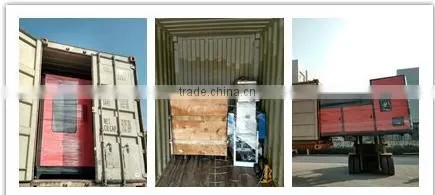

Packaging & Shipping
