1.Good quality, low price.2.World famous brand,professional service
3.Max.lifting capacity:20t.

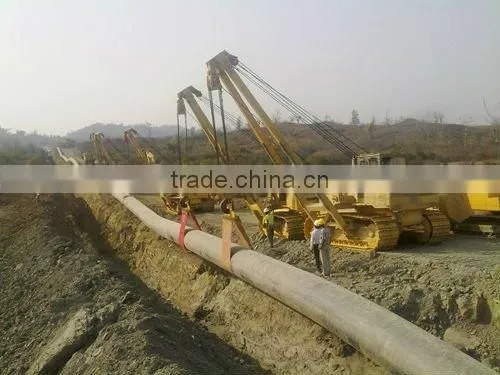

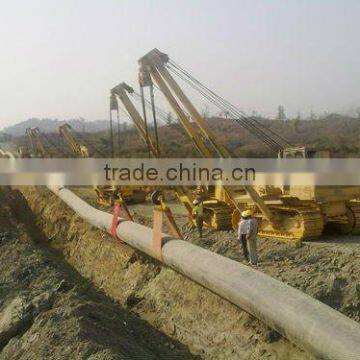

1.PMG20(D)sideboom is of bulldozer chassis. The counterweight assembly, boom assembly as well as relevant hydraulic/electrical systems are equipped on its platform. It is handle controlled which features simple operation and excellent power performance.
2.The electricity generating function is realized by timing belt transmission device installed between rear output shaft of chassis rear axle box and the generator.
3.Lifting system adopts hydraulic system transmission which is manually controlled, boom and hook's up & down is controlled through 3 handles. Single/double pump oil supplying method makes the hook jiggling (inching) performance better and a wider range for hook speed changes.
Item | Main Parameters | ||
Model | PMG20D | ||
Max lifting capacity t | 20 | ||
Rated lifting capacity t | 17 | ||
Rated lifting capacity of auxiliary boom t | 4 | ||
Overall weight ( approximate) t | 23.6 | ||
Delivery dimensions L*W*H mm | 5540*3008*3055 | ||
Transportation weight of main set t | 22.3 | ||
Average ground pressure kPa | 80 | ||
Min ground clearance mm | 355 | ||
Max slope-climbing capability ?? | 20 | ||
Ambient conditions | Ambient temperature -20 -50 ; Altitude below 3000m | ||
Engine | type | Weifang Diesel WD615.T1 - 3A Shanghai Diesel D6114 | |
Rated power/rated rotating speed kW/rpm | 128/1850 | ||
Travelling system | Chassis | T140-2 | |
Operational Mode | Joystick
| ||
Theoretical travel speed km/h | 2.5/3.55/5.68/7.53 (Forward) | ||
3.53/4.96/7.94 (Backward) | |||
Length of track on ground mm | 2570 | ||
Track width mm | 560 | ||
Number of track rollers | 6*2 S/F 4*2 pieces D/F 2*2 pieces | ||
Lifting system | Luffing type | Wire rope luffing | |
Operational mode | Hydraulic handle | ||
Main boom | Length mm | 6000 | |
Max lifting height mm | 5000 | ||
Auxiliary boom | Length mm | 2600 | |
Max lifting height mm | 7125 | ||
Boom luffing angle?? | 0 - 84 | ||
Hook speed 6MF m/min | 0 - 11 | ||
Luffing time 4MF | 17 | ||
Execution standard | Q/GDR 009-2008 ISO8813-92 | ||
