Home > Products > Pipelayers > 90t Pipelayer PMG90
90t Pipelayer PMG90
- any port in China
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Pipelineman | |
| Model Number | PMG90 | Condition | New | |
| Moving Type | Other, Crawler | Machine Weight | 55t | |
| Dimension(Long * Breadth * High) | 5906*3354*3100 |
Product Description
Specifications
1.Good quality,low price.2.World famous brand,and professional service.
3.Max.lifting capacity:90t
PMG90 Side boom

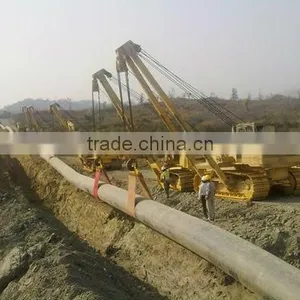

PMG90 side boom adopts the KOMATSU technology special side boom chassis, mainly used in pipe laying, carrying, lowering-in works. The equipment can be used from -20 to + 50 , 3000 m altitude, under 5% containing of sand in the air, and other rainy, snowy, foggy condition. It can work with 20°slope in safety. With rational design, compact structure, the equipment is easy for dispatch and transfer.
Items | Parameters | ||
Model | PMG90 | ||
Max. lifting capacity | 90 t | ||
Rated lifting capacity | 76.5 t | ||
Total weight(approx.) | 55t | ||
Shipping dimensions(L×W×H) | 5906×3354×3100 mm | ||
Shipping weight of main set | 38.9 t | ||
Average ground pressure | 86.6 KPa | ||
Min. ground clearance | 550 mm | ||
Max. climbing capacity | 20° | ||
Ambient conditions | Temperature: -20°C~+50°C; | ||
Engine | Model | Cummins NTA855-C360 | |
Rated power | 257 kW | ||
Rated rotating speed | 2000 rpm | ||
Travelling System | Chassis | specialized chassis for side boom | |
Control type | Control rod | ||
Theoretical travelling speed | 3.6/6.6 km/h (Forward 2 gear) | ||
4.4/7.8 km/h (Reverse 2 gear) | |||
Track length on ground | 3620 mm | ||
Track width | 860 mm | ||
Number of track rollers | 9×2 | ||
Lifting system | Luffing type | Wire rope | |
Operation type | Joy stick | ||
Boom | Length | 7600/8600 mm( 9000mm boom can be supplied upon special order ) | |
Max. lifting height | 6000/7000 mm | ||
Boom luffing angle | 0~86 ° | ||
Hook speed( 8 MF) | 0~6.3 m/min | ||
Luffing time | 40 s | ||
Application standard | Q/GDR 008-2008,ISO8813-92 | ||
