Help CenterDouble Action Rear Blade
Related Products
Specifications
Land leveling, yard cleaning, farm road grading, snow cleaning, ditching and terracing, backfilling, and earth moving
tractor bladeMulti purpose Rear Blade.
Land leveling, yard cleaning, farm road grading, snow cleaning, ditching and terracing, backfilling, and earth moving: these are some of the many jobs that you can do with this versatile tool.
Ø With the grader wheel installed, Hyd.position control holds the blade at the chosen depth for the fine leveling.
Ø Angle and pitch of blade adjustable from tractor seat.
Ø Blade pitch is adjustable from 0 to 40 Degree by the screw lever in reach of the tractor seat.
Ø The blade can be completely reversed for back filling.
Ø For access to awkward place, it can be offset to either side.
Ø An alternative hitch pin for the right hand lower link allows the blade to be tilted for digging ditches or irrigation channels.
Specifications;
- Mounting Category I, Three point linkage
- Construction Entirely steel frame, reversible light carbon Steel Cutting edge.
- Blade angle Adjustable 070 degree in two increments to either Side & similarly with blade facing. Rearward.
- Blade pitch Adjustable from 0-40 degree
- Blade width 7 ft.
- Overall length 5ft.(with grader wheel)
- Weight 170 Kg.
- Accessories Grader wheel kit
- Tractor Compatibility 35-85 Hp
|
Aeco Export Company deals in farm Tractors and Agricultural machineries. Our main Products are Massey Ferguson Tractors (Brand new / Used Tractor), MF tractor spare parts, FIAT New Holland Tractor (Brand new / Used Tractor), Fiat NH tractor spare parts AND many farm machineries & agriculture implements. We strive with our high quality International standard products, Most feasible Prices , fastest delivery and communication services, AECO is also well renowned due to its best after sales services back up by qualified engineers and spare parts availability. Aeco Export company main products include;
Aeco Export Company is the biggest exporter for tractors Manufactured in Pakistan. Our Exported Tractors are used for farm cultivation, transportation, industry and commercial purposes. Massey Ferguson tractors and Fiat New Holland tractors, Aeco farming machineries made in Pakistan are world most powerful & durable tractors really worth to their cheap prices which caters all financial classes of any society all over the world. We Export Farm Machinery, Farm tools, Agricultural Machinery, Agricultural Implements, Farm Equipments Includes

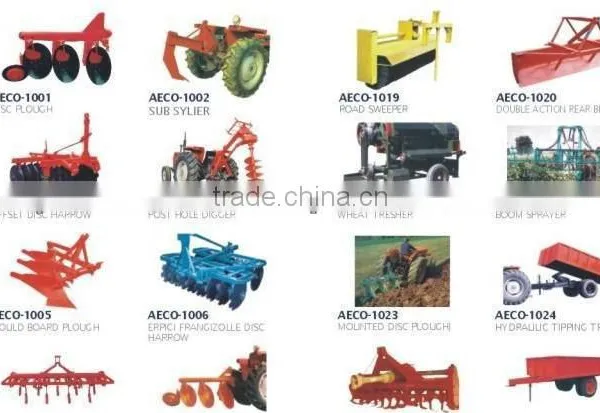

Disc ploughs Chisel Plough Mould Board plough Disc harrows Farm trailers Hyd. Tipping trailers Ridger Rotavitor/cultivator Digger Post hole digger, Maize Sheller Wheat thresher Potato planter & digger Lawn mower Chaff cutter Tine tiller Adjustable Pintle hook Swinging draw bar Front loader Front & Rear Blade And many others. Our Offered Agricultural Implements are manufactured according to Massey Ferguson's design and specifications. We provide most competitive prices and best quality Massey Ferguson tractors and agricultural implements. Aeco export Company is in Agricultural industry since last more than 20 years and servicing successfully to all major continents of the world such as Asia, Middle East ,Africa, North America, South America, Europe and Australia. AECO Export Company has opened its marketing office in Dubai, U.A.E as well in year 2013 we have our wide after sales services back up by full range of spare parts for Fiat tractors and Massey Ferguson tractors.
Our Offered Agricultural Implements are manufactured according to Massey Ferguson's design and specifications.
Our Tractors, Disc Harrows, Disc Ploughs, Front loaders, Trailers and other farm machines have won the international markets due to best quality & competitive prices. Pictures & specifications of all products & implements are available on our website.
WE ARE 6th year GOLD MEMBER OF TRADEKEY & Alibaba, WORLD LARGEST b2b NETWORK. WE ARE SPENDING HUGE MONEY JUST TO TAKE THE INTERESTE AND TRUST OF BUYERS. WE SPEND AND OFFER SERVICES WORTH TO IT.
Please reply to MY Email / RFQ on both (Alibaba and my Official Email ID). Thank you.
Please do feel free to contact us any time for any of your question regarding prices, quantity, quality, after sales services, payment terms, delivery terms, etc etc.
we are right here to serve you best Insha Allah. |
