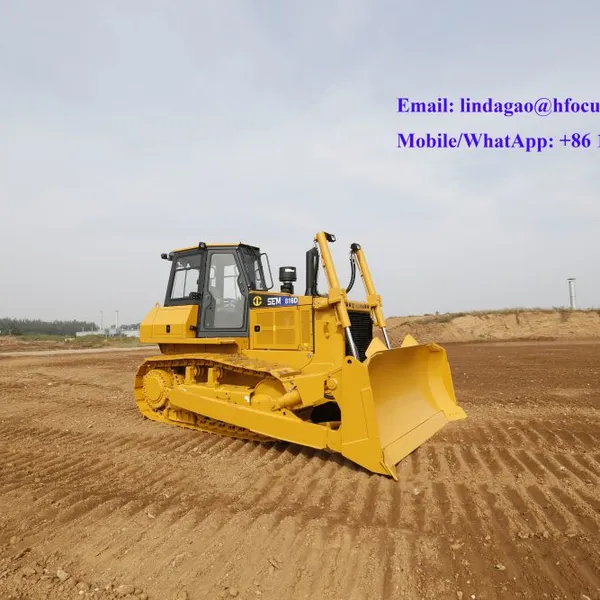

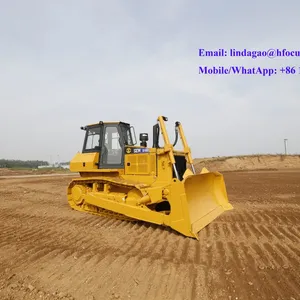

Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale

Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale thumbnail-1
Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale thumbnail-2
Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale thumbnail-3
Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale photo-1
Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale photo-2
Bull Dozer Crawler Bulldozer Machinery Price,178HP Track Type Tractor SEM816D Crawler Bulldozer Earthmoving Machinery for Sale photo-3
US$ 6000 - 99999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Focus
Place of Origin:
China
Model Number:
Focus 170
Contact Supplier Request Quote Chat Now
Henan Focus Vehicles Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Focus
Place of Origin China
Model Number Focus 170
After-sales Service Provided Overseas third-party support available
Condition New
Dimension(Long * Breadth * High) 4.35*3.4*3.11
Machine Weight 17250 - 17500 Kg
Moving Type Crawler Bulldozer
Product Description
Sem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for Sale
Product Description

Sem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for Sale The electronically controlled hydrostatic drive system and multi functional joystick provide high levels of performance and maneuverability.The cabin is ergonomically designed for increased operator comfort and visibility. The advanced monitoring system tracks machine operating conditions and keeps the operator informed of all vital machines functions.The proven hydrostat design along with world class pump and motors provide a highly reliable tractor. The undercarriage components are designed for longer life versus the leading competitor.The SEM tractors are designed for easy access to reduce overall maintenance time.The machines electronic control module allows for quick troubleshooting.

Detailed Photos

Sem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for SaleSem822D Sem Track Type Tractor Dozer with Different Types Construction Equipment Sem 220HP Crawler Bulldozer Dozer for Sale

Product Parameters

Model
Model SEM816D SEM816D LGP SEM816D DS SEM816D CH SEM816D FR
Main Configuration
Operating Weight 17,560kg 20,150kg 20,420kg 17,820kg 18,580kg
Ground Pressure 66.8kPa 31.1kPa 34.8kPa 61.8kPa 66.9kPa
Ground Clearance 410mm 410mm 410mm 410mm 410mm
Max. Slope 30 30 / 30 30
Engine
Engine Model WD10G178E25 WD10G178E25 WD10G178E25 WD10G178E25 WD10G178E25
Rated Power 131kW 131kW 131kW 131kW 131kW
Working Tool
Blade Type SU / S LGP LGP U SU Forestry / S Forestry
Blade Capacity 4.3m / 3.5m 3.4m 3.4m 5.6m 6m / 5.8m
Blade Width 3,180mm / 3,590mm 4,410mm 4,410mm 3,580mm 3,180mm / 3,590mm
Blade Height 1,240mm / 1,165mm 1,000mm 1,000mm 1,400mm 1,625mm / 1,625mm
Max. Blade Digging Depth 430mm / 430mm 470mm 470mm 430mm 430mm / 430mm
Max.Blade Lift Ground Clearance 1,041mm / 1,041mm 1,055mm 1,055mm 1,041mm 1,041mm / 1,041mm
Max.Output Rimpull 280kN 280kN 280kN 280kN 280kN
Max. Digging Depth of Ripper 584mm / / 584mm 584mm
Max. Clearance Under Tip 615mm / / 615mm 615mm
Powertrain
Type dual-path, closed loop electronically controlled hydrostatic drive system dual-path, closed loop electronically controlled hydrostatic drive system dual-path, closed loop electronically controlled hydrostatic drive system dual-path, closed loop electronically controlled hydrostatic drive system dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R infinitely variable speeds 0-10 km/h nfinitely variable speeds 0-10 km/h infinitely variable speeds 0-10 km/h infinitely variable speeds 0-10 km/h infinitely variable speeds 0-10 km/h
Steering & Brake hydrostatic steering; wet, multi-disc brake hydrostatic steering; wet, multi-disc brake hydrostatic steering; wet, multi-disc brake hydrostatic steering; wet, multi-disc brake hydrostatic steering; wet, multi-disc brake
Minimum Streeing Radius 3,610mm 3,740mm 3,740mm 3,610mm 3,610mm
Undercarriage
Track Shoe Width-Single 510mm / 950mm 560mm 560mm
Track Shoe Width-APEX / 1,050mm 950mm / /
Track Shoe Quantity 37 42 42 37 37
Track Length On Ground 2,430mm 2,925mm 2,925mm 2,430mm 2,430mm
Track Gauge 1,880mm 2,300mm 2,300mm 1,880mm 1,880mm
Track Roller Quantity 6 7 7 6 6
Carrier Roller Quantity 2 2 2 2 2
Hydraulic System
Type center close, pilot control center close, pilot control center close, pilot control center close, pilot control center close, pilot control
Implement Hydraulic System Pressure 19MPa 19MPa 19MPa 19MPa 19MPa
Service Refil Capacities
Fuel Tank 320L 320L 320L 320L 320L
Cooling System 45L 45L 45L 45L 45L
Hydraulic Tank 140L 140L 140L 140L 140L
Pivot Shaft Case(each side) 1.2L 1.2L 1.2L 1.2L 1.2L
Engine Crankcase 24L 24L 24L 24L 24L
Final Drive(each side) 30L 40L 40L 30L 30L
