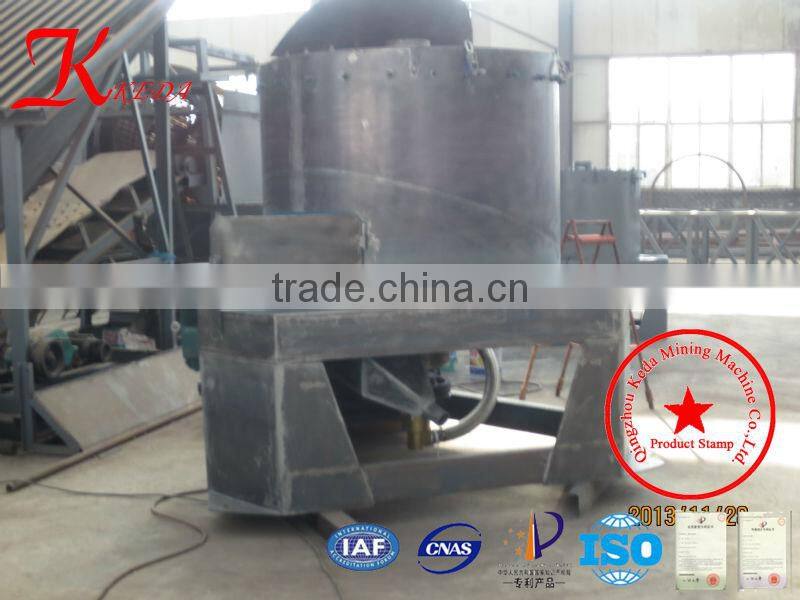

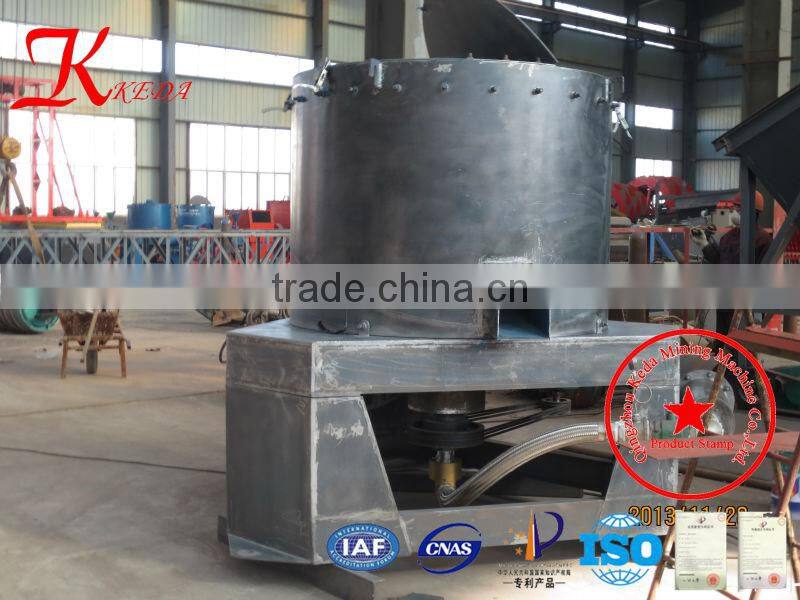

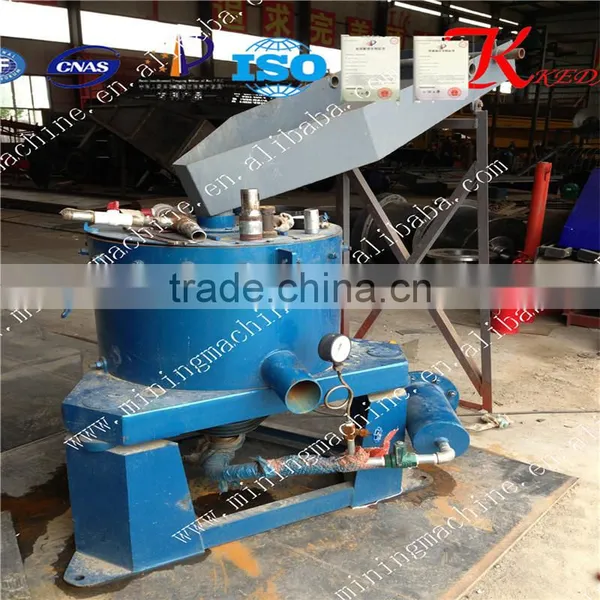

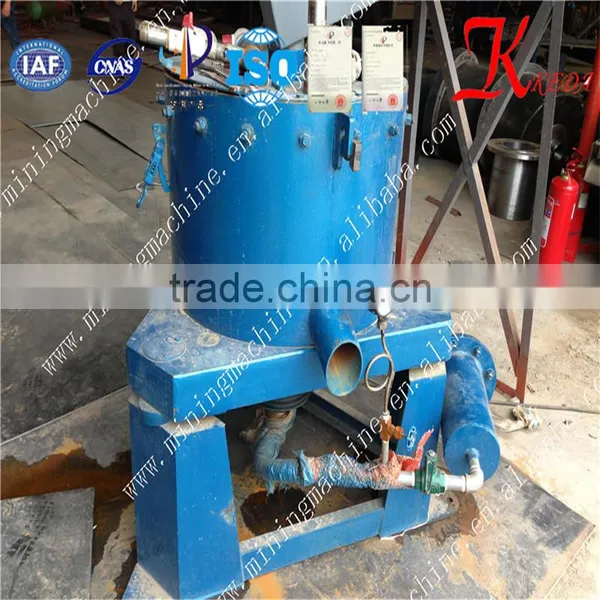

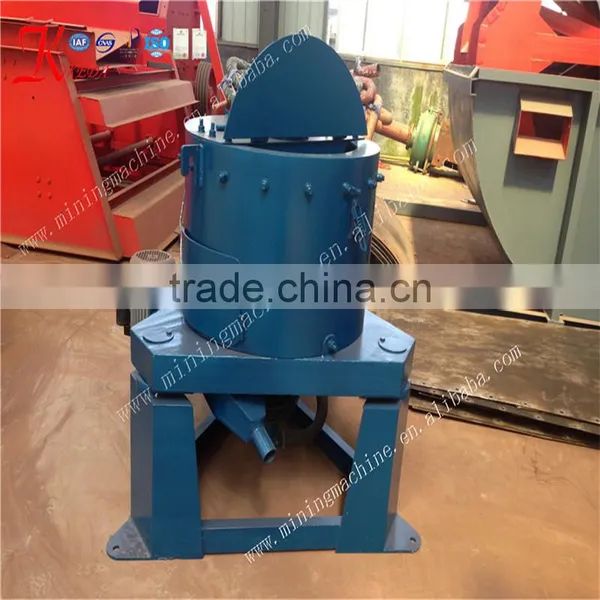

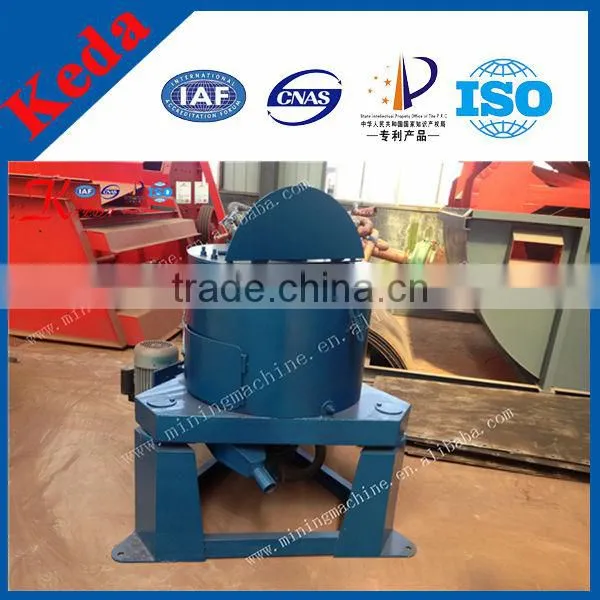

Water Jacket Alluvial Gold Concentrator For Sale
1. Gold concentrator parameter
Model | KDL19 | KDL30 | KDL60 | KDL80 | KDL100 |
Capapcity T/H | 0.25-0.30 | 3-5 | 15-20 | 40-50 | 80-100 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Concentrate production (kg per time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Overall Size mm | 790×785×790 | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
Weight | 300kg | 500kg | 1300kg | 1800kg | 2800 |
2.Features of gold concentrator
1) High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.
2) Easy to install: Only a small leveled place required. It's a complete machine, before starting it, only need to connect the fluidization water and power
3) Easy to adjust: there are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
4) No pollution: this machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
5) Easy to operate: after finishing the water pressure and feeding size adjust, what U have to do is to fetch the concentrates every 2-4 hours. (Depending on the grade of the mine)

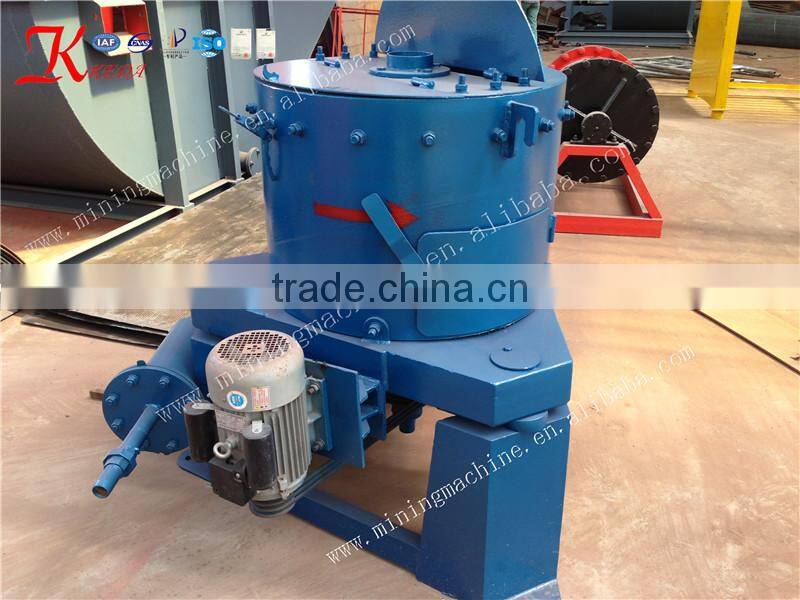

3.Structure of gold concentrator
Motors to drive hollow shaft by the belt transmission, the high speed rotating set within the slot, the mine materials by the feed tube into the inner sleeve slot insulation, ore material under the action of centrifugal force, make the sorting process intensification, heavy mineral, stay in the set of the slot, light minerals by tailings discharge tube, via a shift operation, downtime will concentrate to expel from concentrate, and then into the next cycle.

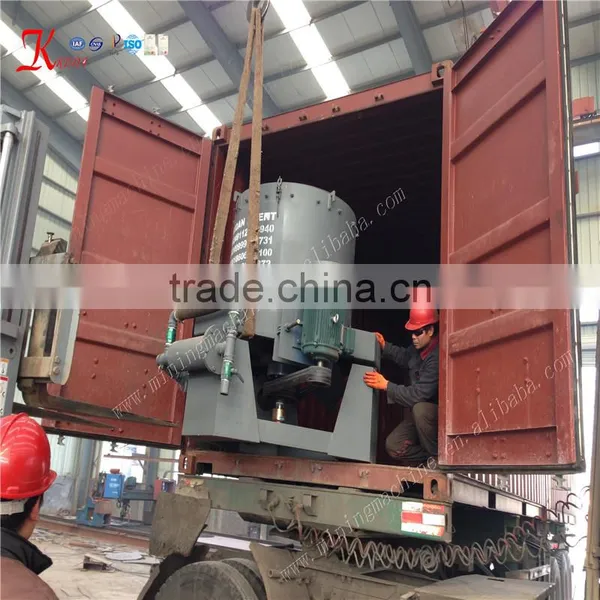

4.Production
5.Contact us
For more detailed information please feel free to contact:
Qingzhou Keda Mining Machine Co.,Ltd.
Miss. Lily Su
Tel:+86 536 2105419
Mob/whatsapp :+86 137 9362 0699
Email: sales01(at)
