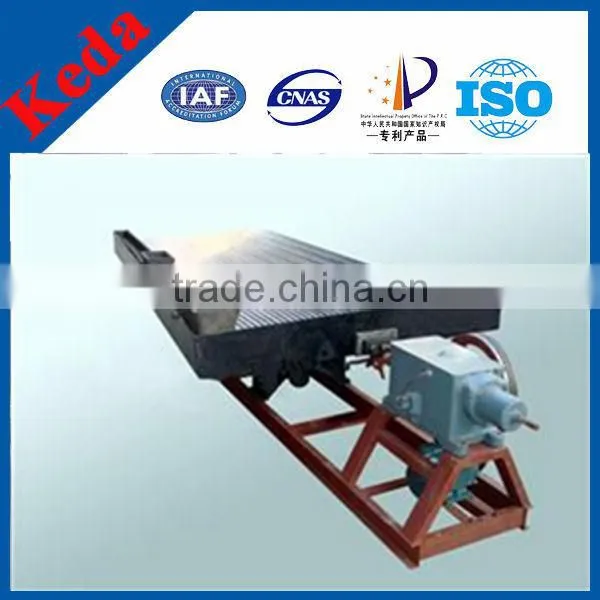

Best Price Gold Table Dimension
1.Instruction of gold table dimension
- 6-S gold table dimension is one of the main equipment of gravity concentration, it is widely used in separating tungsten, tin, niobium, gold and other rare metals and precious metal.
- Can be used for roughing, selection, and choose different operations, such as, selecting coarse sand (2-0. 5 mm), fine sand (0.5 0.074 mm).
- The slime different grade (0.074) and so on.
- Can also be used to choose don't iron, manganese ore and coal.
- When processing the minerals such as tungsten, tin, table of effective recycling granularity range is 2-0.22 mm.
2.Gold table dimension parameter
Name | Unit | Coarse sand table | Fine sand table | Slurry table | |
Table dimension | Length | mm | 4450 | 4450 | 4450 |
Driving end | mm | 1855 | 1855 | 1855 | |
Concentrate end | mm | 1546 | 1546 | 1546 | |
Max. approved grain size | mm | 2 | 0.5 | 0.15 | |
Working capacity | t/d | 30-60 | 10-20 | 15-25 | |
Concentration | % | 25-30 | 20-25 | 15-25 | |
Stroke | mm | 16-22 | 11-16 | 8-16 | |
Frequency | f | 45-48 | 48-53 | 50-57 | |
Water | t/d | 80-150 | 30-60 | 10-17 | |
Electric motor power | KW | 1.1 | 1.1 | 1.1 | |

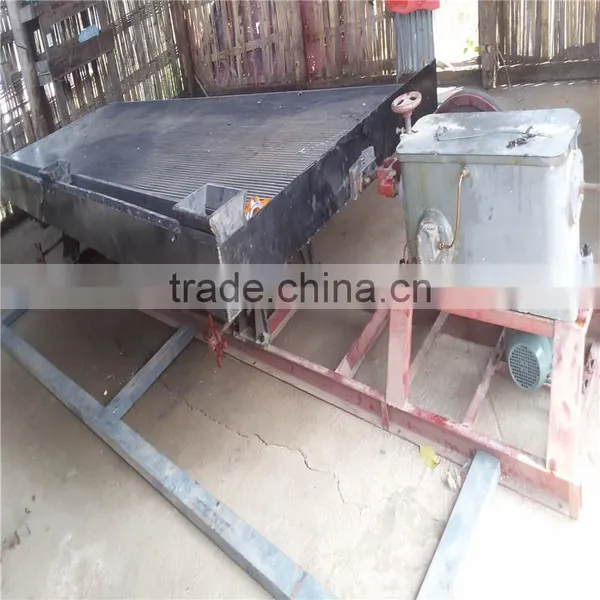

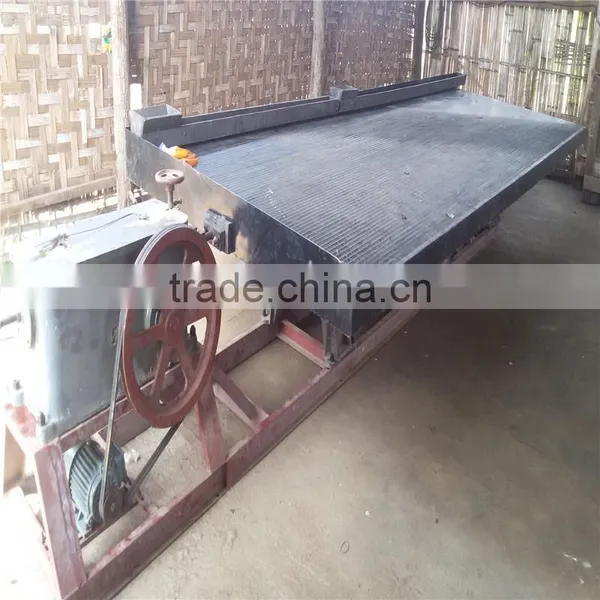

3. Structure

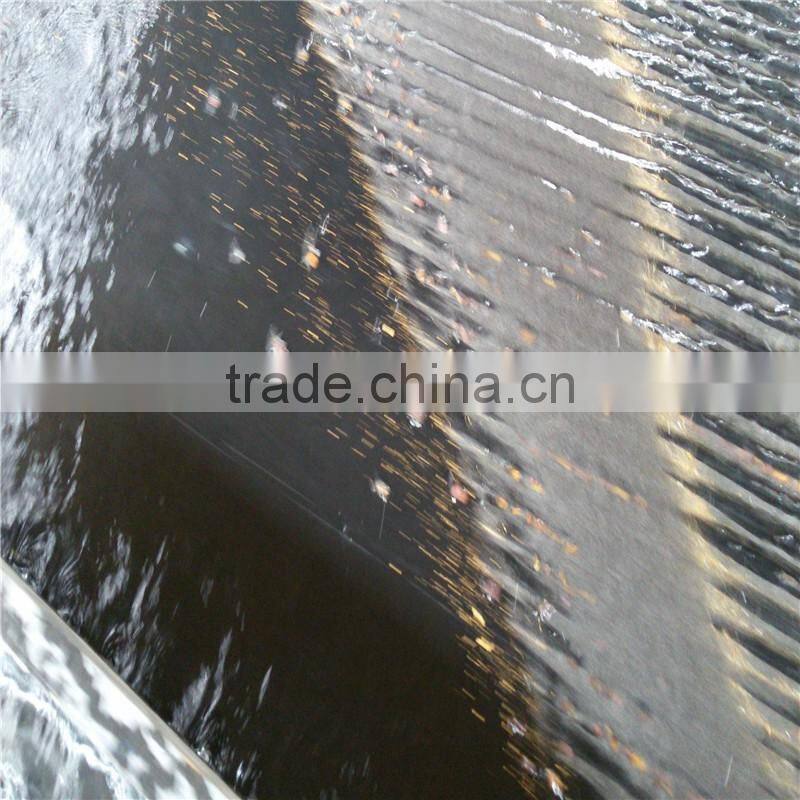

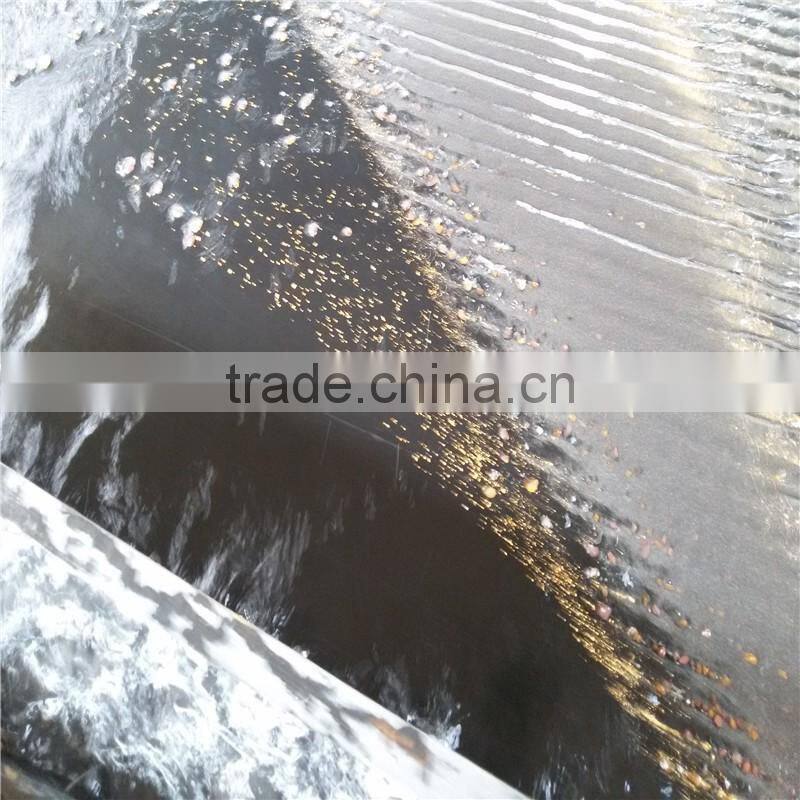

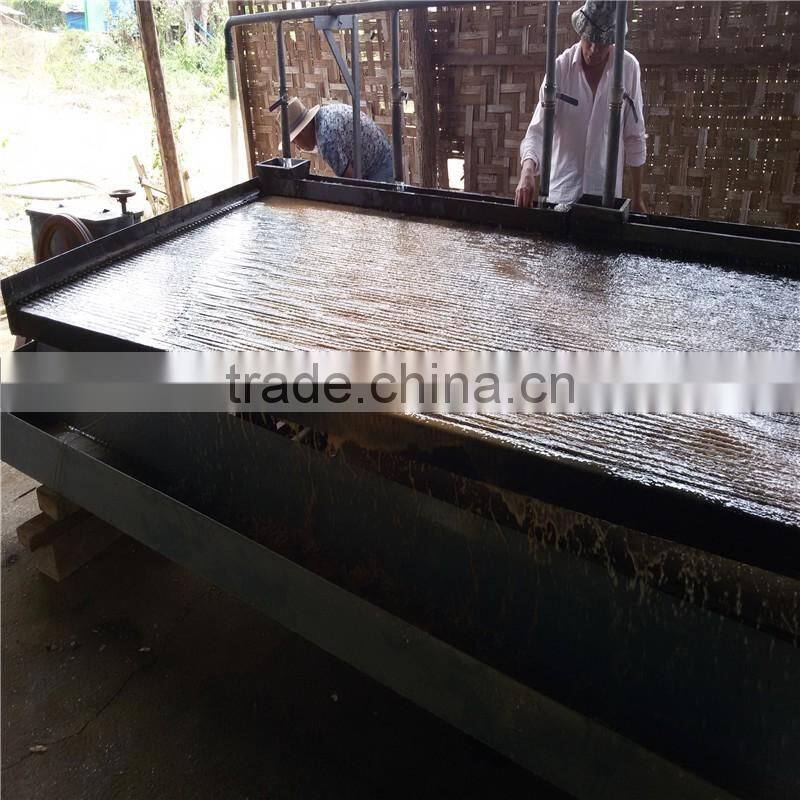

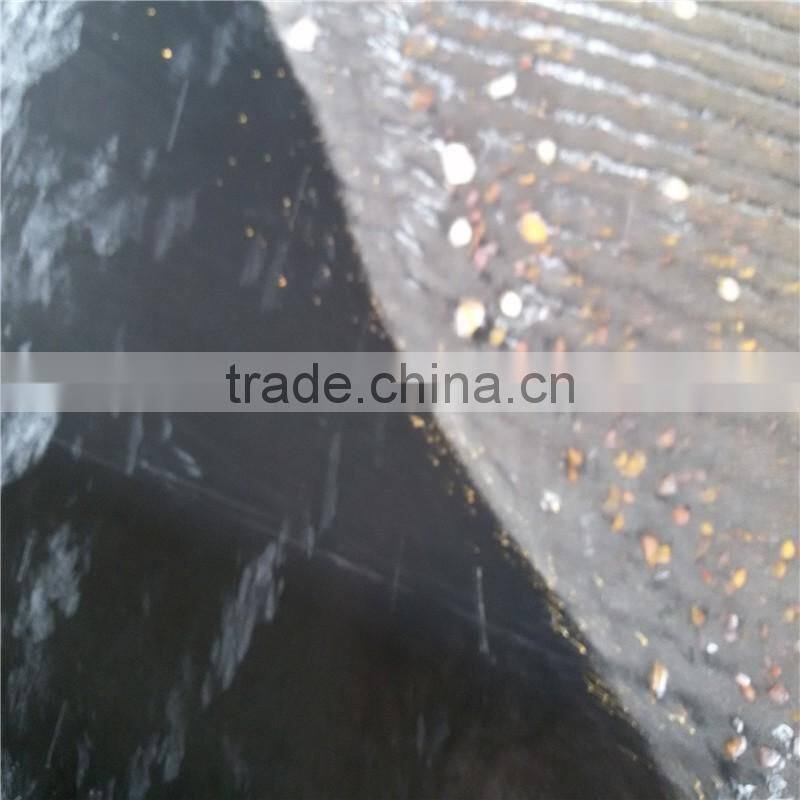

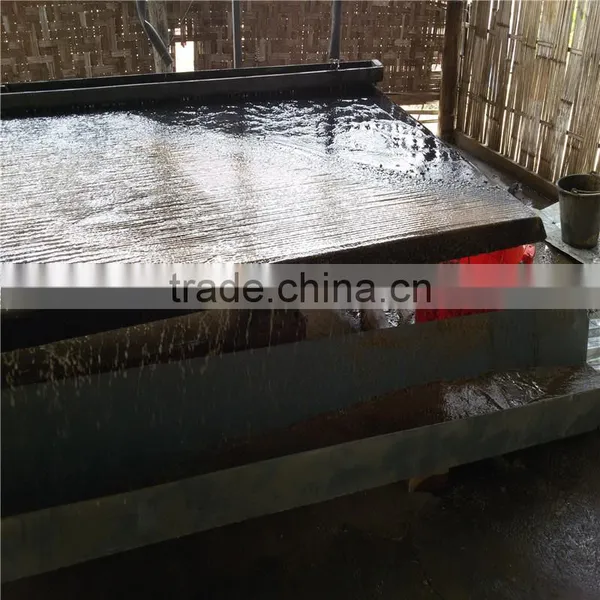

4.Production
6-S shaking table with high rich ore ratio, high efficiency, "easy, easy to adjust stroke. Changing transverse slope and stroke is still can keep the surface of bed movement balance, spring is placed in the casing, compact structure, and can, in turn, the final concentrate and tailings in the end.
5.Contact
For more detailed information please feel free to contact:
Lily Su
Qingzhou Keda Mining Machine Co.,Ltd.
Tel:+86 536 2105419
Mob/whatsapp :+86 137 9362 0699
Email: sales01(at)
