Specifications
Gold Centrifugal Separator Machinery1.5-10 years service life
2.Working Capacity>95%
3.Good after sales service
4.ISO9001

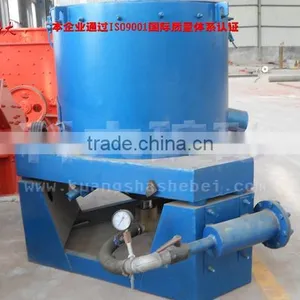

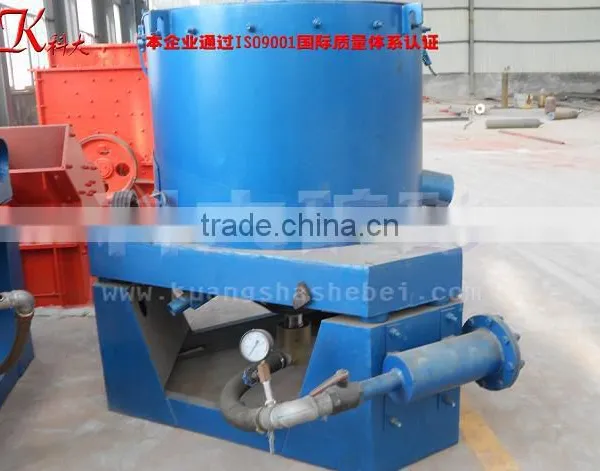

Conventient Gold Centrifugal Separator Machinery
1.Feature
a.Easy to move.
b.Easy to Control.
c.The purity of concentrate is high.
2.Basic Parameters
Model | STL19 | STL30 | STL60 | STL80 | STL100 |
Working Capapcity T/H | 0.25-0.30 | 3-5 | 15-20 | 40-50 | 80-120 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Concentrate production (kg per time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Dimensions mm | 790×785×790 | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
Weight kg | 300 | 500 | 1300 | 1800 | 2800 |

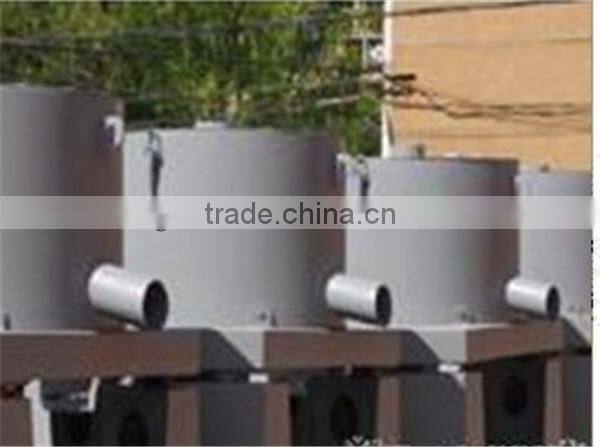

3.Product Show
KDTJ type gold centrifugal separator machinery is a kind of centrifugal separation machinery, it is gold, sand monomer gold in the mine and a variety of other metal recycling.
Placer gold recovery rate can reach more than 95%. MaiJin monomer of gold in the grinding fineness is less than 0.074 mm (65%), monomer recovery rate of gold can reach more than 98%.
4.Working Process
The equipment by the electric motor(2), through the belt transmission (1) drive shaft (11), made the inner sleeve (5) at high speed. Pulp by the feed tube (4), give inner sleeve (5), pulp under the action of centrifugal force field, the sorting process intensification. Heavy mineral stay, (5) in the cell,light minerals by tailing discharge chute (7). After each class working, the concentrate willexpel from row ore mouth after downtime (10).
5.Why choose us
1.We have our own plant and enginner ,we will design the gold wash equipment according to your situation and requirements.
2.We have rich experience in export,our customers from all over the word ,such as Ghana,Bengal and so on.
3. We have petent,we are alone in the China ,even in the world.
4.We have a great group,we will give you a most sincere service.
