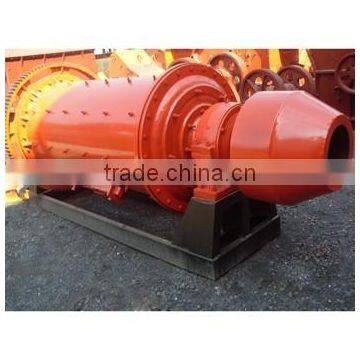

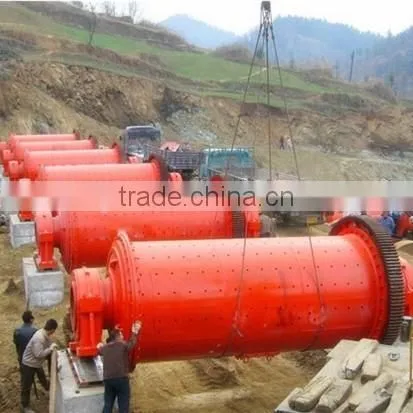

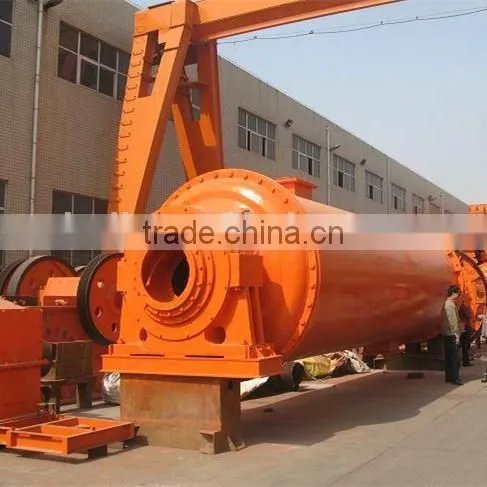

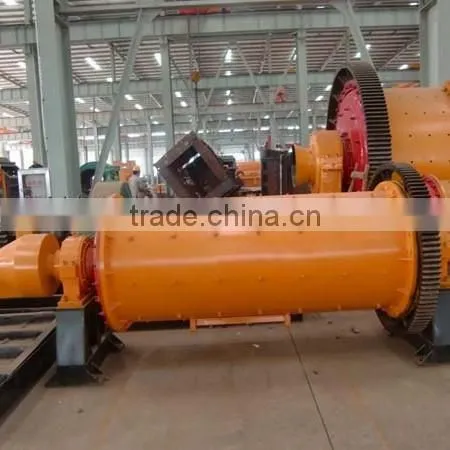

Chromite ball mill
1. Wide usage, simple structure, convenient maintenance;
2. Large capacity, continuous working;

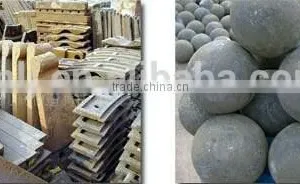

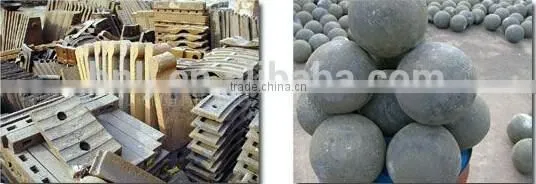

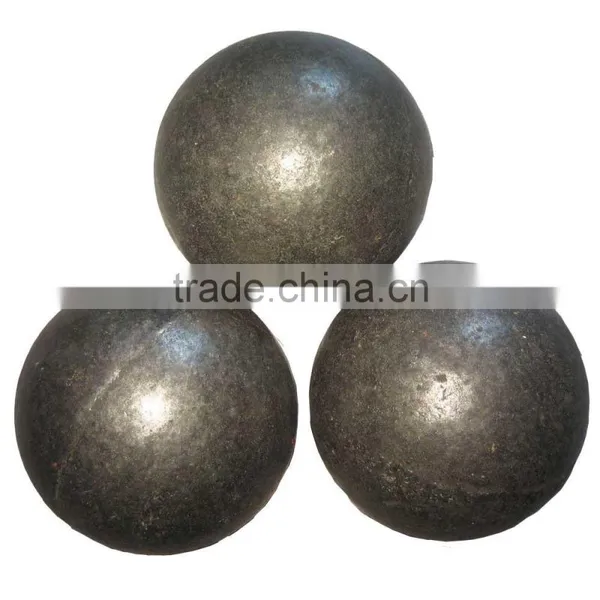

3. Body liners and grinding medium could be made of various of materials, good corrosion resistance;
4. Easy installation, adjustment, and operation.

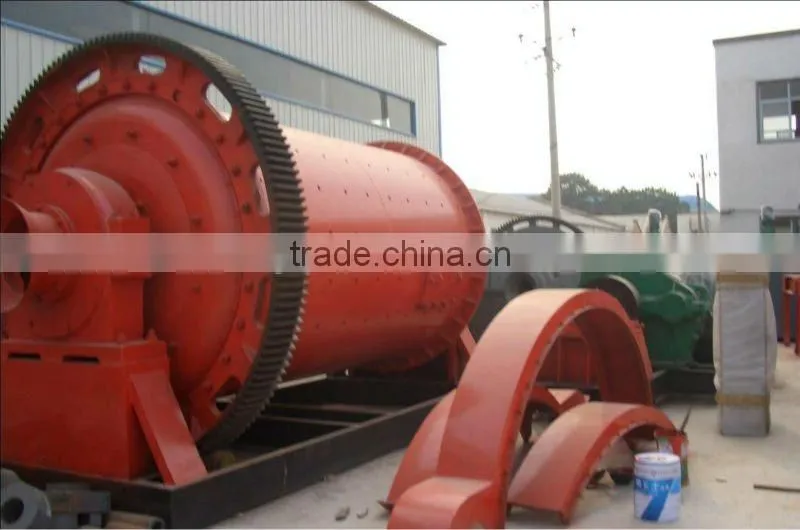

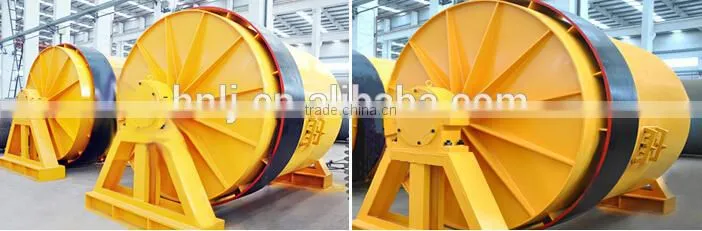

Chromite ball mill manufacturer with competitive price:
The ball mill is one kind of new high efficient grinding machine. This mill is mainly used for coarse powder and small size of sand producing. The ball mill is widely used in metallurgy, mining, chemical, cement, construction, industrial and mining industries etc.
Ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
Ball Mill Product Benefits
High production capacity and high crushing ratio.
Low power consumption, uniform particle size.
Simple structure, easy to operate.
Low investment cost, easy management.
Features of Ball Mill
1. This type of ball mill machine is a kind of traditional ball mill, with rolling bearings (Babbit metal bearing bushing seat)
2. Simple structure, and split installation.
3. It is easy to lift it while installing and maintaining.
4. Its feeders are classified into two types: combined feeder and cylinder feeder.

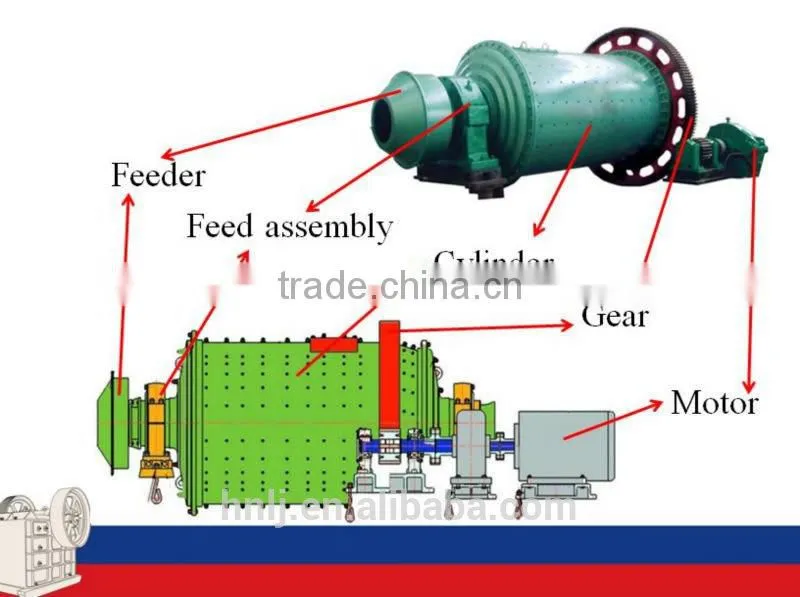

Working principle of Ball Mill
1. This ball mill is horizontal type and tubular running device, has two warehouses.
2. This machine is grid type and its outside runs along gear.
3. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.
Ball mill main technical parameters:
| Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) |
Motor power (kw) | Total weight (t) |
| 900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| 900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| 1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 58 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 69 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | As per process conditions | 630 | 137 |
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
1 What is your raw material ?
2 What is the production capacity?
3 What is your final powder size requirement?
4 When and where do you use our machinery?
5 Do you only need one ball mill or need the whole grinding line?
