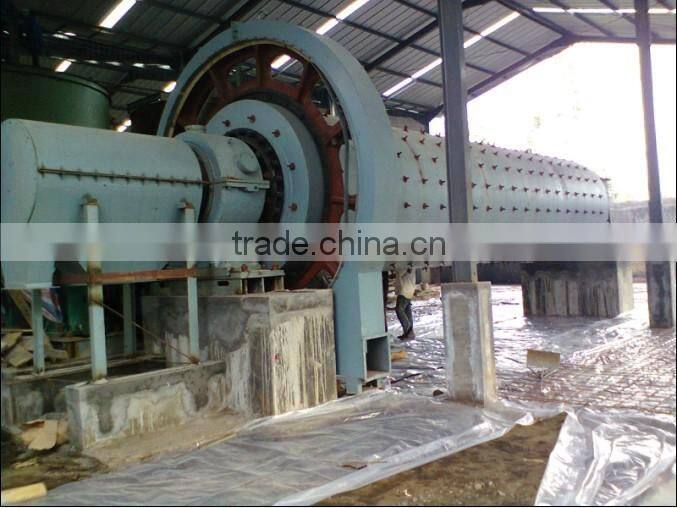

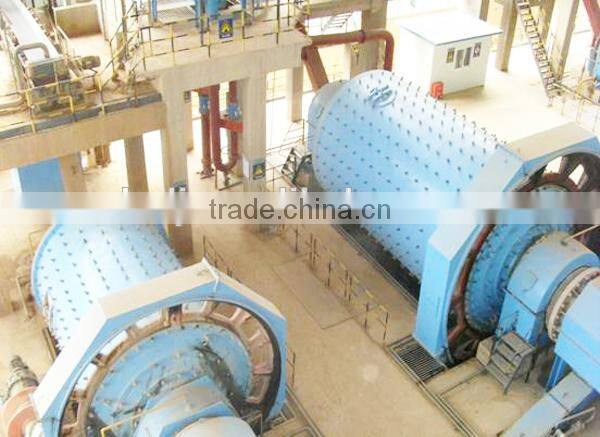

High Performance Cement Ball Mill For Clinker Grinding

High Performance Cement Ball Mill For Clinker Grinding thumbnail-1
High Performance Cement Ball Mill For Clinker Grinding thumbnail-2
High Performance Cement Ball Mill For Clinker Grinding thumbnail-3
High Performance Cement Ball Mill For Clinker Grinding thumbnail-4
High Performance Cement Ball Mill For Clinker Grinding photo-1

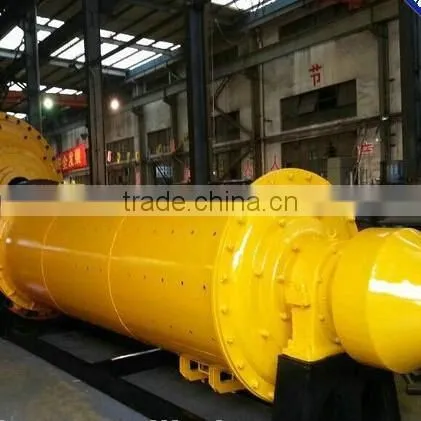

High Performance Cement Ball Mill For Clinker Grinding photo-2

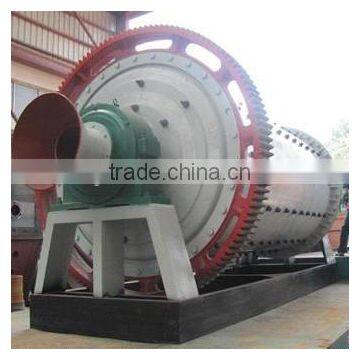

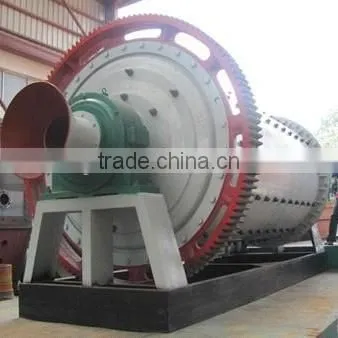

High Performance Cement Ball Mill For Clinker Grinding photo-3

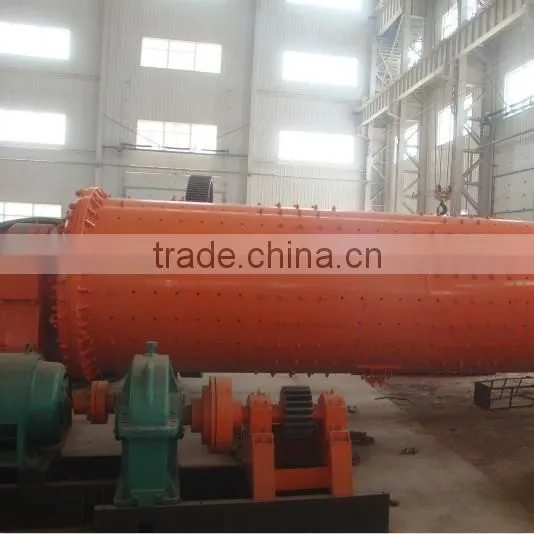

High Performance Cement Ball Mill For Clinker Grinding photo-4
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, small ball mill for sale
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, small ball mill for sale
Motor Type AC Motor
Power(W) refer to specification
Capacity(t/h) 1-50t/h
Place of Origin Henan, China
Brand Name Lanji
Model Number 900*1800mm-3200*4500mm
Dimension(L*W*H) refer to specification
Weight refer to specification
Certification ISO9001:2000
Warranty 1 year including wearing parts
After-sales Service Provided Engineers available to service machinery overseas

High Performance Cement Ball Mill For Clinker Grinding

1. Rational structure, high grinding efficiency.

2. Low investment, few electricity and energy consumptions.

3. Simple and safety operation, reliable and steady performance.

4. Low noise, large capacity, and high economic benefits.

In the techniques of cement production process, people usually choose limestone and clay as the main raw materials to crush, concoct and grind them into cement raw meal, feeding them into cement kiln. Additionally, cement clinker is usually ground using a ball mill. After being calcined, add appropriate amount of gypsum and sometimes add some admixture, then they will be grinded, and the cement will be formed.

Cement mill type:

( 1) open circuit grinding

Ball mill open circuit grinding is the simplest form of technology. Open system has the advantages of simple process, less investment, easy operation and maintenance. Disadvantage is a serious of the over mill grinding phenomenon, low efficiency, high power consumption, difficult fineness adjustment.



( 2) closed circuit grinding

Closed circuit grinding is widely used all over the world in cement production process, United States, Germany, France, Japan and other developed countries almost all large grinding system with closed circuit grinding. For example, more than 95% of total Japanese cement output is by closed circuit grinding system.

Closed- circuit system consists of ball mill, separator and transmission equipment, dust collection equipment and other auxiliary components. Closed- circuit system can eliminate the over-grinding phenomenon,and have the characters of high efficiency, low power consumption ,output than the same specifications of open circuit grinding improved 5% to 50%, convenient fineness adjustment. But the defects are complex process, large investment, inconvenient operation and maintenance.



(3) pre-grinding system

Before the material into the ball mill ,it is pre-crushed by other grinding equipment so as to minify particle size, improve the yield and reduce power consumption of grinding system.

High Performance Cement Ball Mill For Clinker Grinding



Specifications of Energy-Saving Cement Ball Mill



Model Capacity (t/h) Form of Mill Form of Transmission Power (kw) Reducer Weight (T) Remark
Model Ratio
Ø 2.2x7m 8-9 Open Flow Edge 380 ZD70 5 54 Without motor
Ø 2.2x7.5m 10-11 Open Flow Edge 380 ZD70 5 63
Ø 2.2x8m 10-12 Open Flow Edge 380 ZD70 5 65
Ø 2.2x9.5m 14-16 Open Flow Edge 475 ZD70 5 70
Ø 2.4x10m 19-19 Open Flow Edge 630 JR75 5.64 94.5
Ø 2.4x11m 19-21 Open Flow Edge 630 RZD80 6.3 99.2
Ø 2.4x13m 21-23 Open Flow Edge 800 MBY710 7.1 115.2
Ø 2.6x13m 28-32 Open Flow Edge 1000 MBY800 7.1 148
Ø 2.6x13m 28-32 Open Flow Center 1000 MBY100 19.5 101.73
Ø 3x12m 32-35 Open Flow Edge 1250 MBY900 7.1 168.6
Ø 3x13m 34-37 Open Flow Edge 1400 MBY900 7.1 172.26
Ø 3.2x13m 45-50 Open Flow Edge 1600 MBY1000 7.1 196.26
Ø 3.8x13m 60-62 Open Flow Center 2500 MFY250 16.5 204
Ø 4.2x13m 85-87 Open Flow Center 3530 JQS3550 15.6 254








Model Capacity (t/h) Form of Mill Form of Transmission Power (kw) Reducer Weight (T) Remark
Type Ratio
Ø 2.2x7m 12-13 Circle Flow Edge 380 ZD70 5 54 Without motor
Ø 2.4x7m 15-17 Circle Flow Edge 475 JR75 4.74 70.5
Ø 2.4x8m 16-18 Circle Flow Edge 475 JR75 4.74 78.5
Ø 3x9m 42-47 Circle Flow Edge 1000 MBY800 7.1 156.5
Ø 3.2x9m 62-65 Circle Flow Edge 1250 MBY900 7.1 184.5
Ø 3.8x7.5m 80 Circle Flow Edge 1600 JDX900 5.6 233
Ø 4.6x10+3.5m 190 Circle Flow Center 3550 JQS3550 15.1 358
Ø 4.6x10.5+3.5m 210 Circle Flow Center 3550 JQS3550 15.1 360
