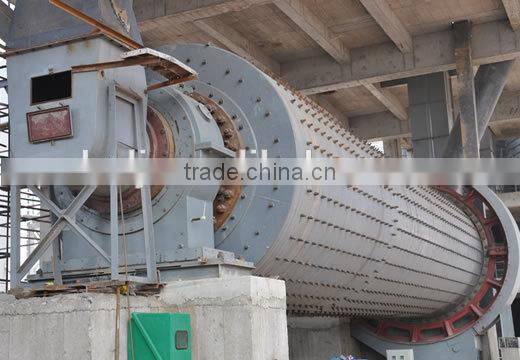

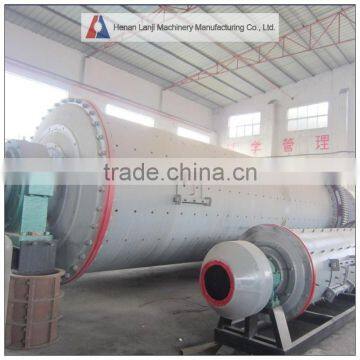

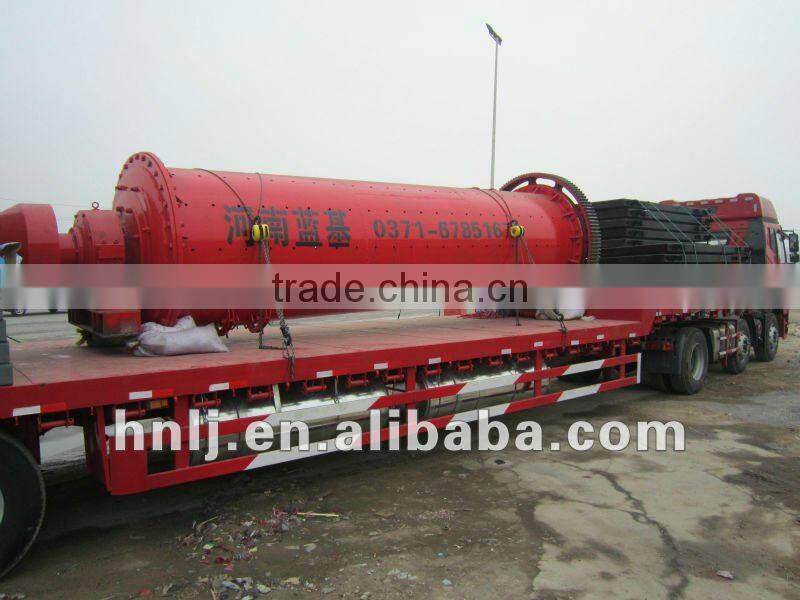

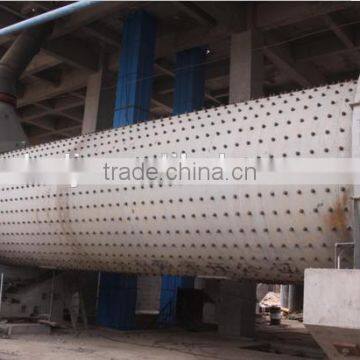

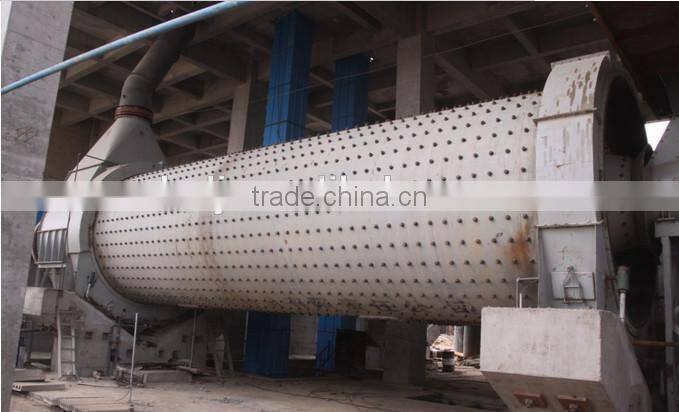

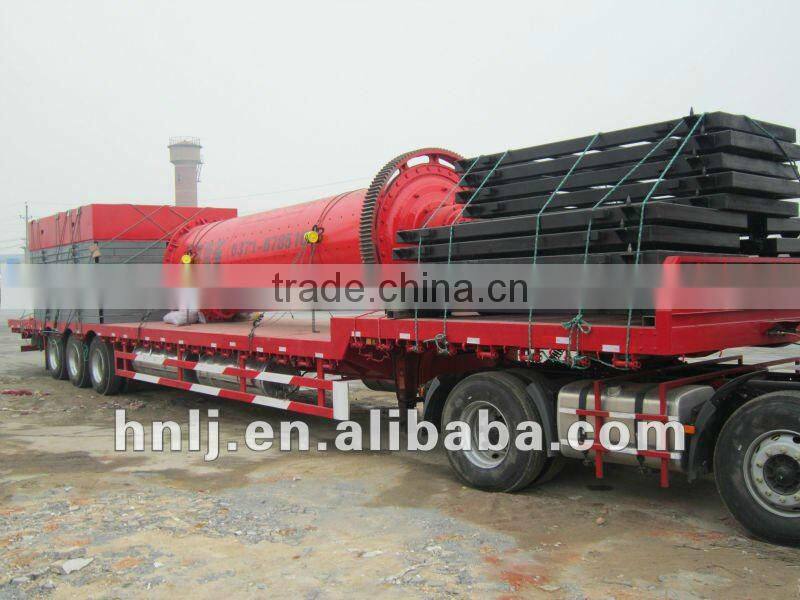

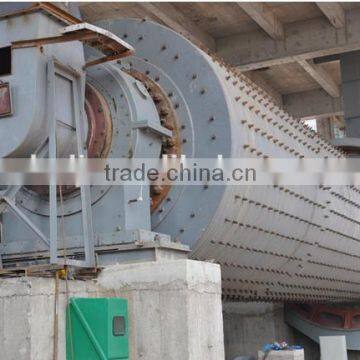

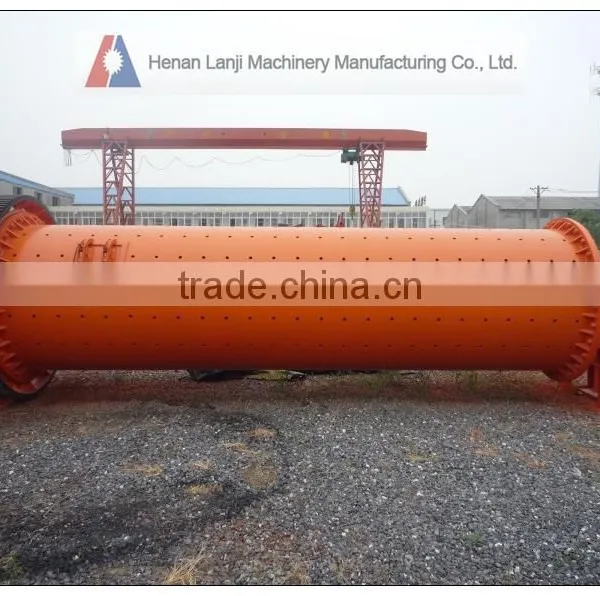

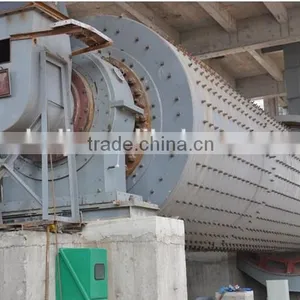

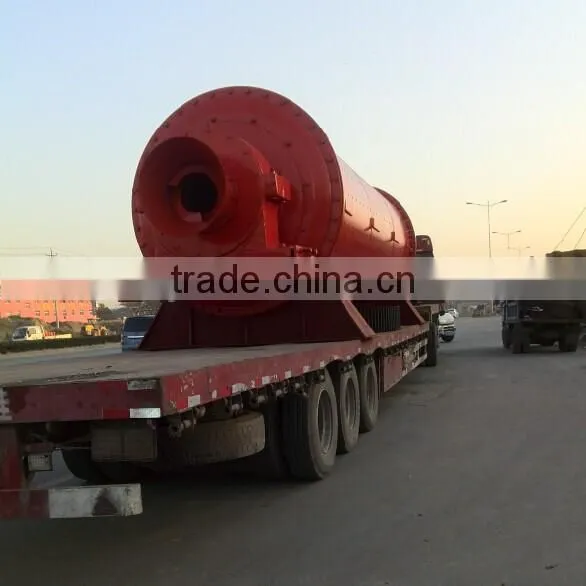

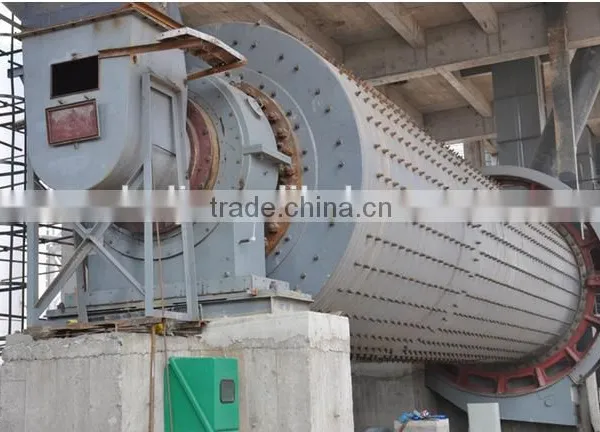

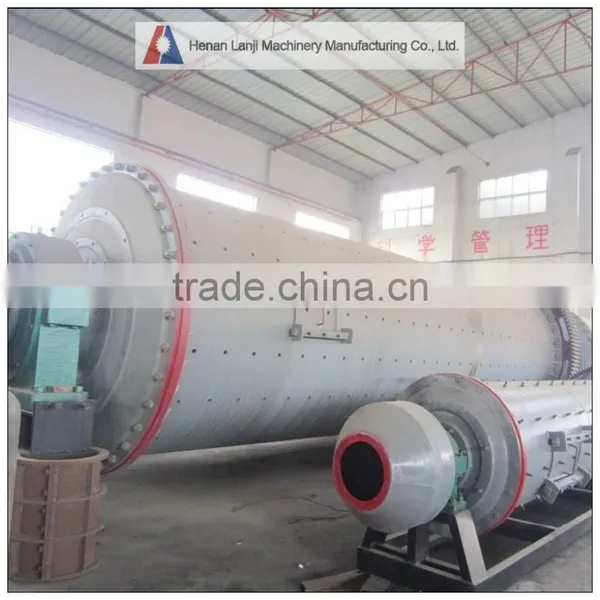

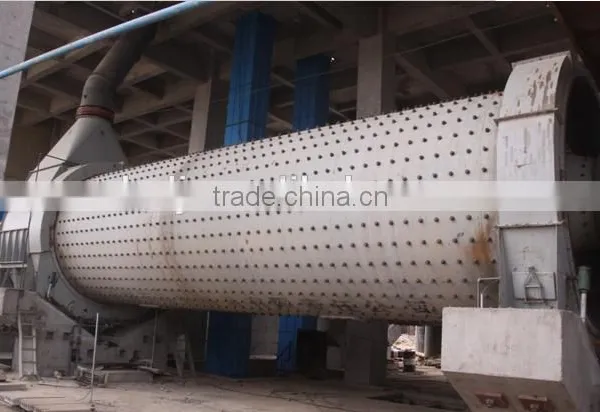

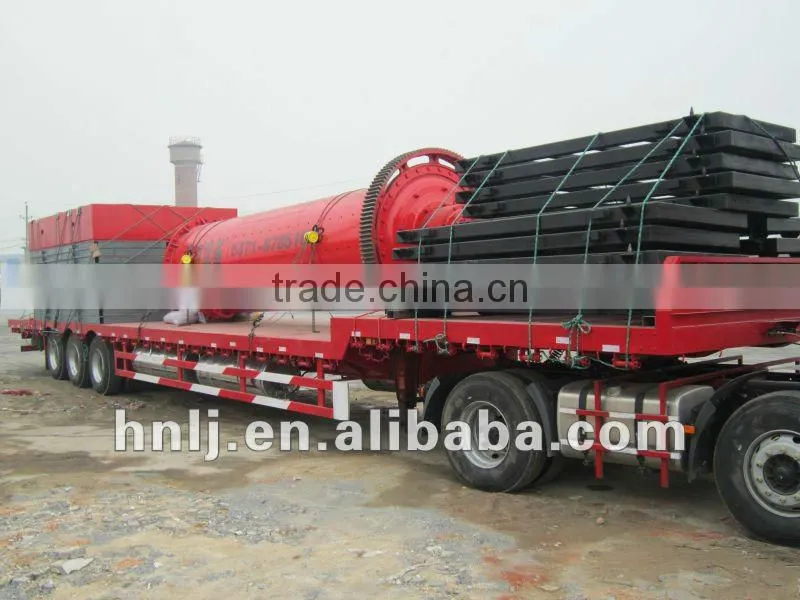

Good quality Cement mill machine with nice price direct on selling
Cement mill Application:
Cement mill is LanJi machinery company for grinding ball mill can break the characteristics of the new building materials production, is the key equipment for grinding after the crushing process. Mill widely used in cement, Portland products, new building materials, refractory material, chemical fertilizer, black and non-ferrous metal processing and glass ceramics production industry, of all kinds of ores and other materials may be grinding of dry or wet grinding. And the appearance of the cement mill, speeding up the building construction pace, promote the development of the construction industry.
Cement mill characteristics:

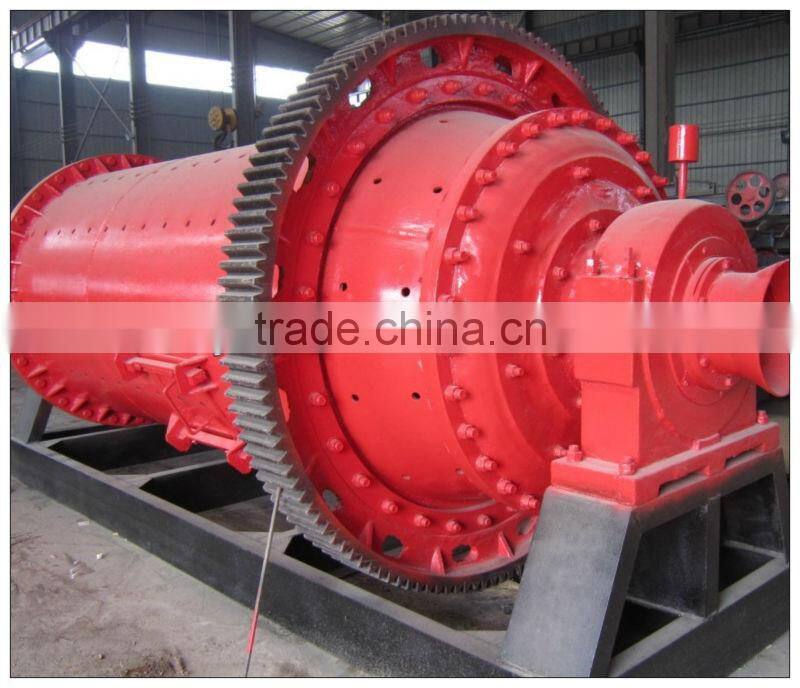

Cement mill is mainly formed by the feeding part, discharging part, Rotary Department, Transmission Division (reducer, small transmission gear, motors, electrical control) and other major components. Hollow axis adopts cast steel, lined with removable, rotary gear hobbing using castings, cylinder liner wear studded body, has good wear resistance. The machine running smooth, reliable work .
Cement mill Principle:
Cement mill for horizontal cylinder rotating device, the outer gear transmission, two storehouse, grate ball mill. The material is feeding device into the hollow shaft for the spiral evenly into the mill first storehouse, the warehouse liner or there were ladder corrugated linings, in a different specifications steel ball, cylinder rotation will produce centrifugal force steel ball to a certain height down after, to material produce slams and abrasive. The material in the first storehouse reach coarse grinding, through the single diaphragms in the second class, in the warehouse with flat liner, with steel ball that will further grinding materials. Powder which through the unloading Bi board eduction, finish grinding homework..
Note: according to material and row ore way, can choose dry type ball mill and wet grate ball mill.
Technical data:
| Item | Model(m) |
Capacity (T/H) |
Milling type |
Transmission type |
Power (KW) |
Reducer | Weight (T) |
Remaks | |
| model | speed ratio |
||||||||
| 1 | Φ2.2×7m | 8-9 | open flow | brim | 380 | ZD70 | 5 | 54 | |
| 2 | Φ2.2×7.5m | 10-11 | open flow | brim | 380 | ZD70 | 5 | 63 | |
| 3 | Φ2.2×8m | 10-12 | open flow | brim | 380 | ZD70 | 5 | 65 | |
| 4 | Φ2.2×9.5m | 14-16 | open flow | brim | 475 | ZD70 | 5 | 70 | |
| 5 | Φ2.4 ×10m | 18-19 | open flow | brim | 630 | JR75 | 5.64 | 94.5 | without motor |
| 6 | Φ2.4×11m | 19-21 | open flow | brim | 630 | RZD80 | 6.3 | 99.2 | without motor |
| 7 | Φ2.4×13m | 21-23 | open flow | brim | 800 | MBY710 | 7.1 | 115.2 | without motor |
| 8 | Φ2.6×13m | 28-32 | open flow | brim | 1000 | MBY800 | 7.1 | 148 | |
| 9 | Φ2.6×13m | 28-32 | open flow | brim | 1000 | MFY100 | 19.5 | 101.73 | |
| 10 | Φ3×12m | 32-35 | open flow | brim | 1250 | MBY900 | 7.1 | 168.6 | |
| 11 | Φ3×13m | 34-37 | open flow | brim | 1400 | MBY900 | 7.1 | 172.26 | |
| 12 | Φ3.2×13m | 45-50 | open flow | brim | 1600 | MBY1000 | 7.1 | 196.26 | |
Technical data of raw mill:
| Item | Model(m) |
Capacity (T/H) |
Milling type |
Transmission type |
Power (KW) |
Reducer | Weight (T) |
Remaks | |
| model | speed ratio |
||||||||
| 1 | Φ2.2×7m | 12-13 | ring |
brim | 380 | ZD70 | 5 | 54 | |
| 2 | Φ2.4×7m | 15-17 | ring |
brim | 475 | JR75 | 4.74 |
70.5 | |
| 3 | Φ2.4×8m | 16-18 | ring |
brim | 475 | JR75 |
4.74 |
78.5 | |
| 4 | Φ3×9m | 42-47 | ring |
brim | 1000 | MBY800 |
7.1 | 156.5 |
without motor |
| 5 | Φ3.2×9m |
62-65 | ring |
brim | 1250 | MBY900 |
7.1 | 184.5 | without motor |
| 6 | Φ3.8×7.5m |
80 | ring |
brim | 1600 | JDX900 |
5.6 | 233 | |
| 7 | Φ4.6×10+3.5m |
190 | ring |
brim | 3550 | JQS3550 |
15.1 | 358 | |
| 8 | Φ4.6×10.5+3.5m |
210 | ring |
brim | 3550 | JQS3550 |
15.1 | 360 | |
