High Capacity Ball Mill for AAC Block Plant With Competitive Price

High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-1
High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-2
High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-3
High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-4
High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-5
High Capacity Ball Mill for AAC Block Plant With Competitive Price thumbnail-6

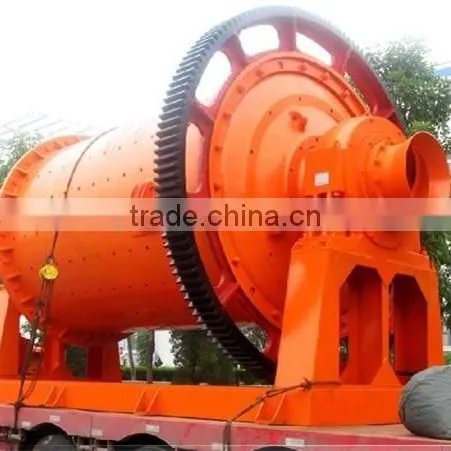

High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-1
High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-2

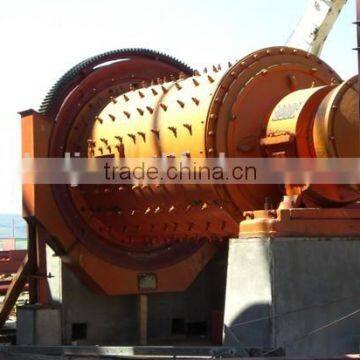

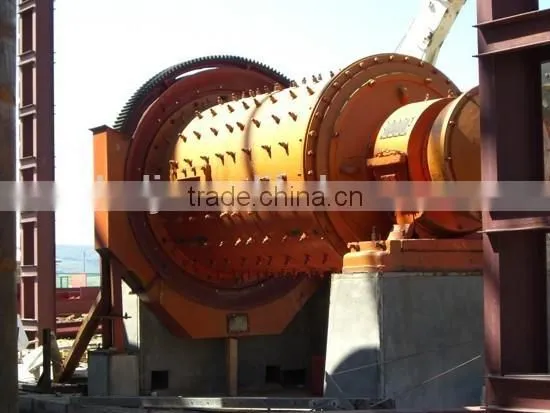

High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-3

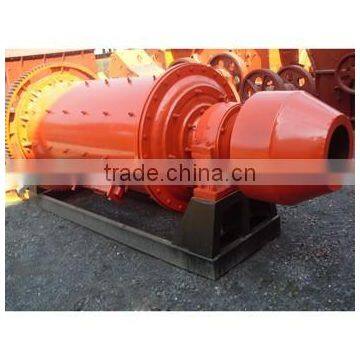

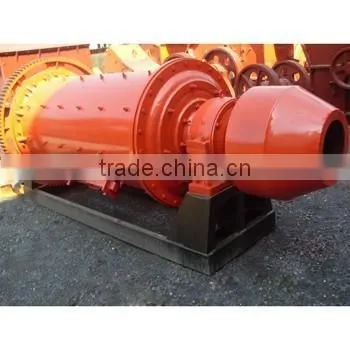

High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-4

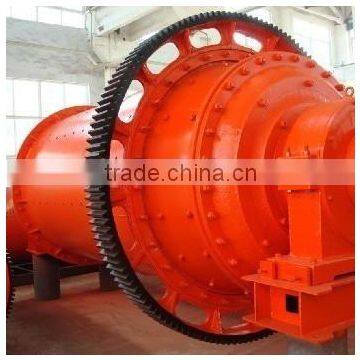

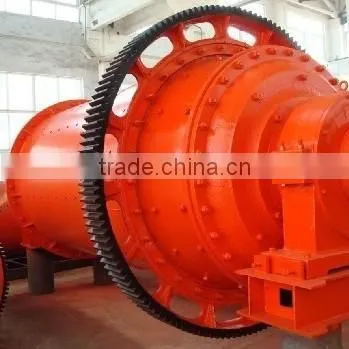

High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-5

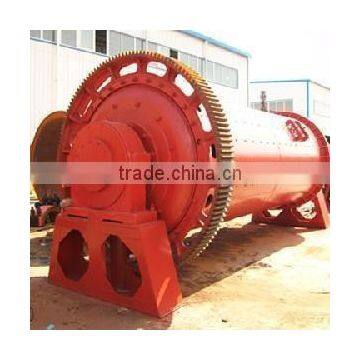

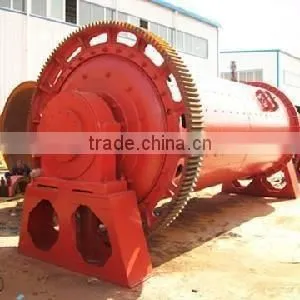

High Capacity Ball Mill for AAC Block Plant With Competitive Price photo-6
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, ball mill machine,ball grinding mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, ball mill machine,ball grinding mill
Motor Type AC Motor
Power(W) 1250
Capacity(t/h) according to different technology
Place of Origin Henan, China
Brand Name Lanji
Model Number dia900-dia3200mm
Dimension(L*W*H) according to models
Weight according to models
Certification ISO9001:2008
Warranty 1 year including wearing parts
After-sales Service Provided Engineers available to service machinery overseas

ball mill machine:

1.Large application range, simple structure and convenient maintenance;

2.Large capacity and continuous work are very obvious;

3.Barrel lining and grinding media can apply various abrasive materials;

4.Installation and adjustment are very convenient and easy to be operated.

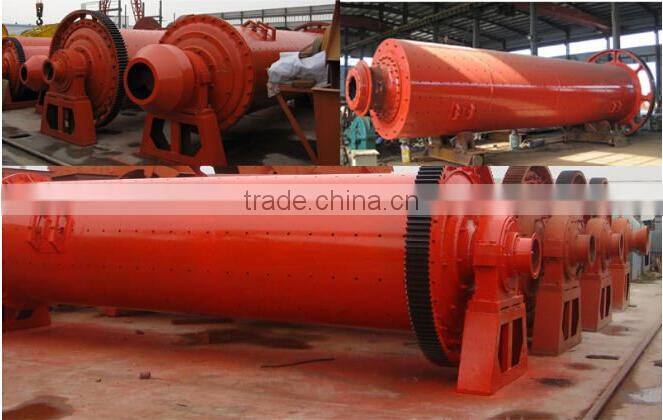

High capacity ball mill for AAC block plant with competitive price

  This ball mill machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

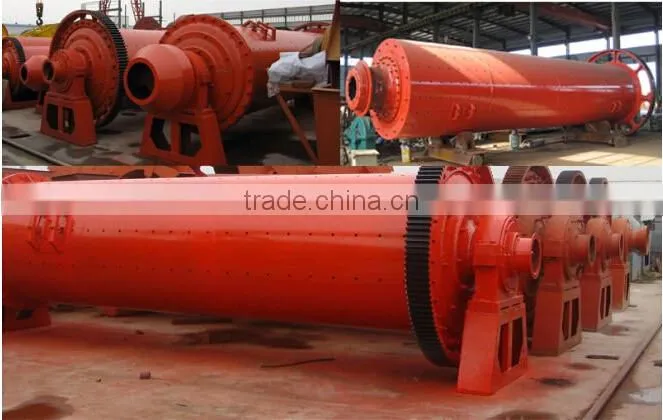

High capacity ball mill for AAC block plant with competitive price

High capacity ball mill for AAC block plant with competitive price

Ball mill machine application:

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.



Ball mill structure:

ball mill is composed of feeding part, discharging part, turning and driving part (reducer, small drive gear, motor, electric control) and other parts. Wet and dry ball mill have some differences in structure: dry ball mill outlet is cylindrical-shaped, and has blower unit. Wet ball mill outlet is trumpet-shaped, built in screw device to facilitate discharge. wet ball mill has high grinding fineness.

High capacity ball mill for AAC block plant with competitive price





 High capacity ball mill for AAC block plant with competitive price



 Ball mill machine main technical data:



Model

Shell rotation speed(r/min)

Ball load(t)

Feeding size(mm)

Discharging size(mm)

Capacity

Motor power(kw)

Weight(t)

(t/h)

Ø900*1800

36-38

1.5

<=20

0.075-0.89

0.65-2

18.5

4.6

Ø900*3000

36

2.7

<=20

0.075-0.89

1.1-3.5

22

5.6

Ø1200*2400

36

3

<=25

0.075-0.6

1.5-4.8

30

12

Ø1200*3000

36

3.5

<=25

0.074-0.4

1.6-5

37

12.8

Ø1200*4500

32.4

5

<=25

0.074-0.4

1.6-5.8

55

13.8

Ø1500*3000

29.7

7.5

<=25

0.074-0.4

2-5

75

15.6

Ø1500*4500

27

11

<=25

0.074-0.4

3-6

110

21

Ø1500*5700

28

12

<=25

0.074-0.4

3.5-6

130

24.7

Ø1830*3000

25.4

11

<=25

0.074-0.4

4-10

130

28

Ø1830*4500

25.4

15

<=25

0.074-0.4

4.5-12

155

32

Ø1830*6400

24.1

21

<=25

0.074-0.4

6.5-15

210

34

Ø1830*7000

24.1

23

<=25

0.074-0.4

7.5-17

245

36

Ø2100*3000

23.7

15

<=25

0.074-0.4

6.5-36

155

34

Ø2100*4500

23.7

24

<=25

0.074-0.4

8-43

245

42

Ø2100*7000

23.7

26

<=25

0.074-0.4

8-48

280

50

Ø2200*4500

21.5

27

<=25

0.074-0.4

9-45

280

48.5

Ø2200*6500

21.7

35

<=25

0.074-0.4

14-26

380

52.8

Ø2200*7000

21.7

35

<=25

0.074-0.4

15-28

380

54

Ø2200*7500

21.7

35

<=25

0.074-0.4

15-30

380

56

Ø2400*3000

21

23

<=25

0.074-0.4

7-50

245

54

Ø2400*4500

21

30

<=25

0.074-0.4

8.5-60

320

65

Ø2700*4000

20.7

40

<=25

0.074-0.4

12-80

400

94

Ø2700*4500

20.7

48

<=25

0.074-0.4

12-90

430

102

Ø3200*4500

18

65

<=25

0.074-0.4

-----

800

137





High capacity ball mill for AAC block plant with competitive price

 High capacity ball mill for AAC block plant with competitive price
