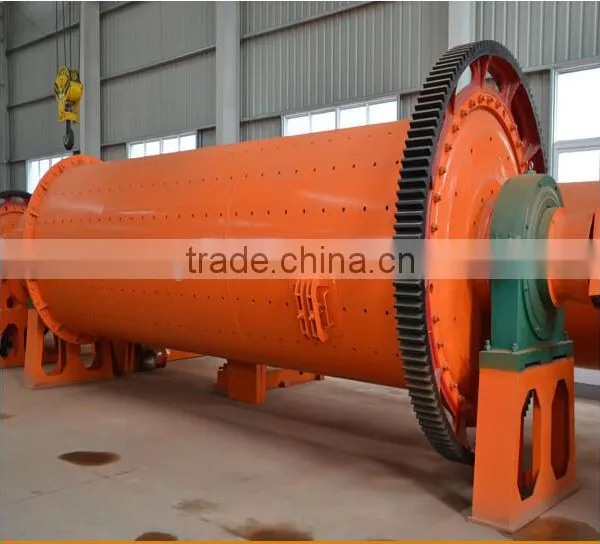

Wet Process Beneficiation Ball Mill

Wet Process Beneficiation Ball Mill  :

1.Large application range, simple structure and convenient maintenance;

2.Large capacity and continuous work are very obvious;

3.Barrel lining and grinding media can apply various abrasive materials;

4.Installation and adjustment are very convenient and easy to be operated.

Wet Ball mill structure:

  This ball mill machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.  please feel free to ask our grinding ball mill price .

 Wet Ball Mill  Features:

1) ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

Wet Ball mill working principle:

This machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

When the ball mill works, motor and speed reducer transmit torque force to big and small gears of ball mill, so the barrel rotates.When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the ball mill rotates continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished application range, simple structure and convenient maintenance.

Ball mill structure:

ball mill is composed of feeding part, discharging part, turning and driving part (reducer, small drive gear, motor, electric control) and other parts. Wet and dry ball mill have some differences in structure: dry ball mill outlet is cylindrical-shaped, and has blower unit. Wet ball mill outlet is trumpet-shaped, built in screw device to facilitate discharge. wet ball mill has high grinding fineness.

 Ball mill main technical data:

wet ball mill working site:
