Rubber Liner Overflow Ball Mill for Silica Sand

Rubber Liner Overflow Ball Mill for Silica Sand thumbnail-1
Rubber Liner Overflow Ball Mill for Silica Sand photo-1
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, ball mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, ball mill
Motor Type AC Motor
Power(W) 18.5-1250
Capacity(t/h) 0.65-2
Place of Origin Henan, China
Brand Name Lanji
Model Number 900*1800
Dimension(L*W*H) 5.0*2.0*2.1 m
Weight 3.6 t
Certification ISO9001:2000
Warranty 1 year including wearing parts
After-sales Service Provided Engineers available to service machinery overseas
Rubber liner  overflow ball mill for silica sand :
Ball mills are generally used to grind material 14 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize continuously being recalculated back to the mill to be reduced.

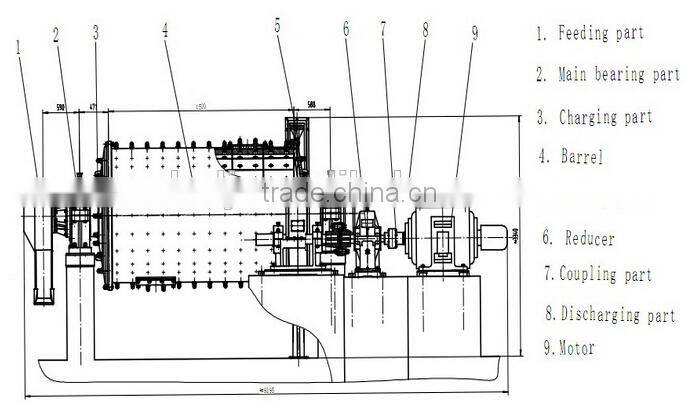

Wet ball mill structure:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Rubber liner overflow ball mill for silica sand
 Rubber liner overflow ball mill for silica sand
Wet ball mill main technical parameters:




Model

Rotation

speed

(r/min)

Grinding media loading (t)

feed size(mm)



Discharge size (mm)

Output

(t/h)

Power (kw)

Weight (t)

Φ900×2100

38

1.5

≤15

0.075-0.89

0.5-2

15

3.9

Φ900×2400

38

1.8

≤15

0.075-0.89

0.7-2.8

18.5

4.5

Φ900×3000

38

2.51

≤15

0.075-0.89

0.8-3.5

22

5.0

Φ1200×2400

32

3.8

≤20

0.074-0.4

0.9-4.8

30

9.2

Φ1200×2800

32

4.0

≤20

0.074-0.4

1.0-5.0

30

9.5

Φ1200×3000

32

4.5

≤20

0.074-0.4

1.2-5.6

37

11.5

Φ1200×4500

30

5.5

≤20

0.074-0.4

1.5-6.0

55

13.6

Φ1500×3000

27

7.0

≤25

0.074-0.4

2.5-6.5

75

15.0

Φ1500×3500

27

8.5

≤25

0.074-0.4

3.0-8.2

75

15.6

Φ1500×4500

27

11

≤25

0.074-0.4

4-10

95

21

Φ1500×5700

27

12

≤25

0.074-0.4

4-13

110

23.5

Φ1830×3000

24

12

≤25

0.074-0.4

5-15

130

31

Φ1830×3600

24

13

≤25

0.074-0.4

5-16

130

32

Φ1830×4500

24

14

≤25

0.074-0.4

5-18

155

33.5

Φ1830×7000

24

21

≤25

0.074-0.4

6-20

210

36

Φ2100×3000

24

18

≤25

0.074-0.4

7-26

210

38

Φ2100×3600

24

21

≤25

0.074-0.4

7-35

215

39.5

Φ2100×4500

24

26

≤25

0.074-0.4

8-42

245

43.5

Φ2200×3000

21

28

≤25

0.074-0.4

8-43

245

46

Φ2200×4800

21

35

≤25

0.074-0.4

9-45

285

48

Φ2400×3000

21

23

≤25

0.074-0.4

8-60

285

55

Φ2700×4500

21

48

≤25

0.074-0.4

12-83

475

79



Rubber liner overflow ball mill for silica sandRubber liner overflow ball mill for silica sand
