Limestone Grinding Ball Mill Plant With Dust Collector

Henan Lanji Machinery Manufacturing Co., Ltd.
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-1
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-2
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-3
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-4
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-5
Limestone Grinding Ball Mill Plant With Dust Collector thumbnail-6
Limestone Grinding Ball Mill Plant With Dust Collector photo-1

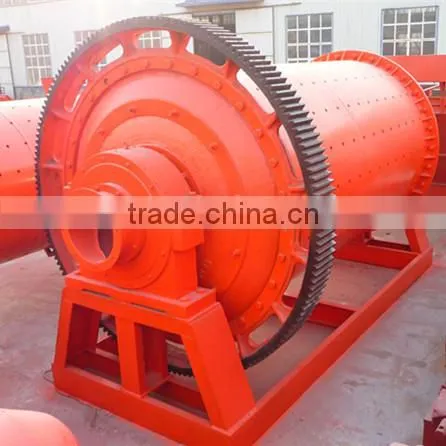

Limestone Grinding Ball Mill Plant With Dust Collector photo-2

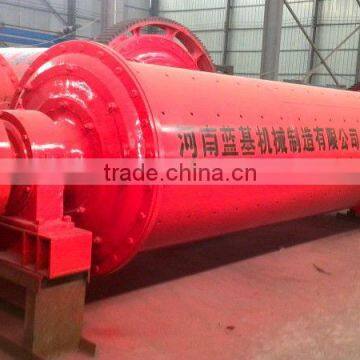

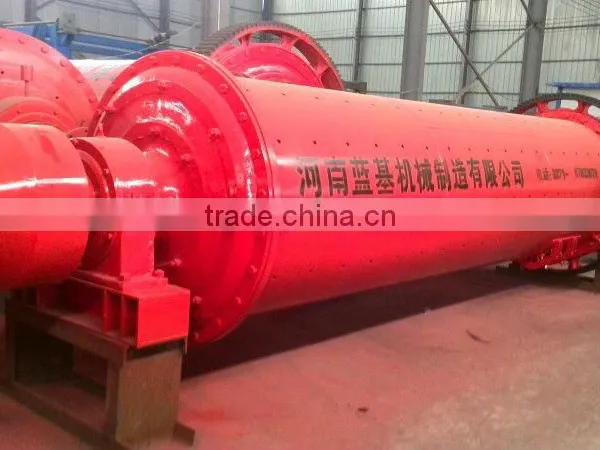

Limestone Grinding Ball Mill Plant With Dust Collector photo-3

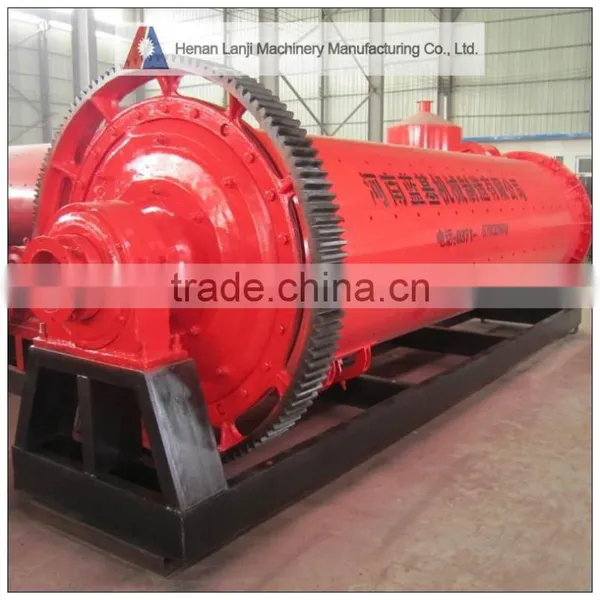

Limestone Grinding Ball Mill Plant With Dust Collector photo-4

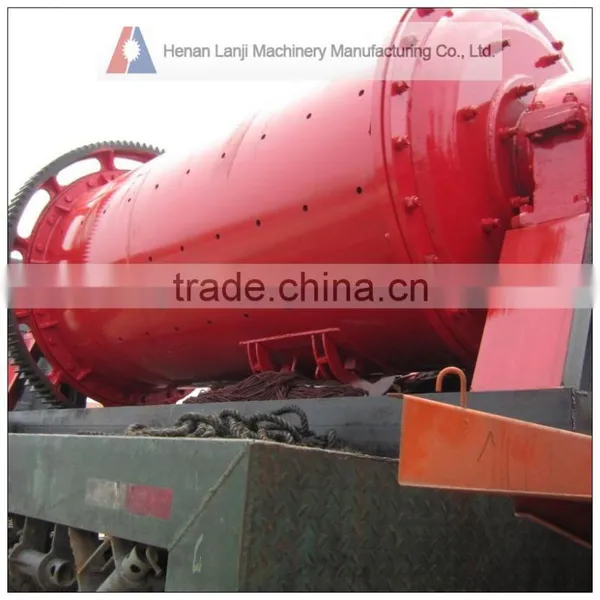

Limestone Grinding Ball Mill Plant With Dust Collector photo-5

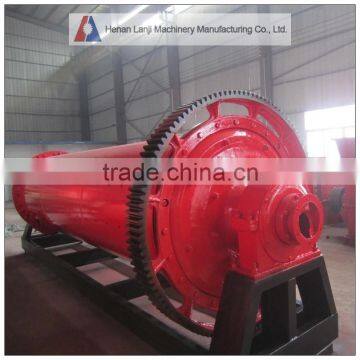

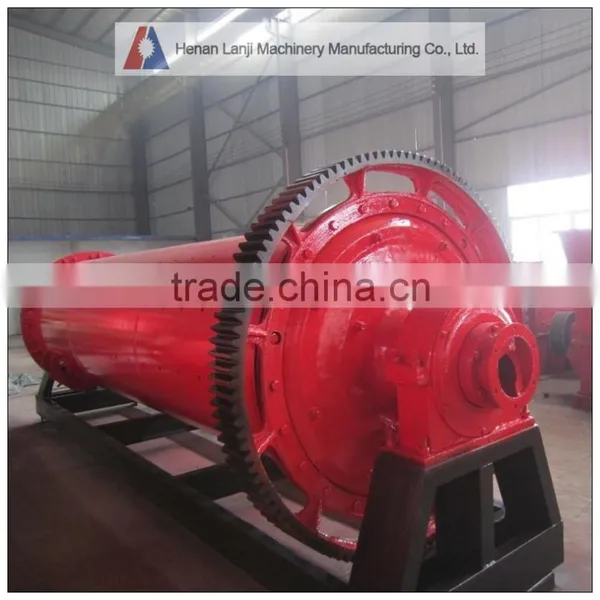

Limestone Grinding Ball Mill Plant With Dust Collector photo-6
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, ball mill machine
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, ball mill machine
Motor Type AC Motor
Power(W) 18.5-1250
Capacity(t/h) 8.5-60
Place of Origin Henan, China
Brand Name Lanji
Model Number 2400*4500
Dimension(L*W*H) 6.5*2.2*2.5 M
Weight depending on model
Certification ISO9001:2000
Warranty 1 year including wearing parts
After-sales Service Provided Engineers available to service machinery overseas

Limestone grinding ball mill plant with dust collector :



Our limestone  ball mill use antifriction bearing to take the place of the sliding bearing in order to reduce the force of friction, and make it more easy to be easy-start and energy-saving.

Limestone mill design the discharge end as a cone, which can increase volume and classify steel balls in the cone. The shorter it nears to discharge end, the smaller diameter of steel balls are. The function of repeated grinding rises, and the fine degree of material is accordingly increased.

Lime mill adopts grooved annular liner. It can not only increase the touch surface of the steel ball and the materials but also enhance the grinding function and reduce the power it need.

Lime mill adopts overall frame, which is convenient to civil construction and equipment installation.

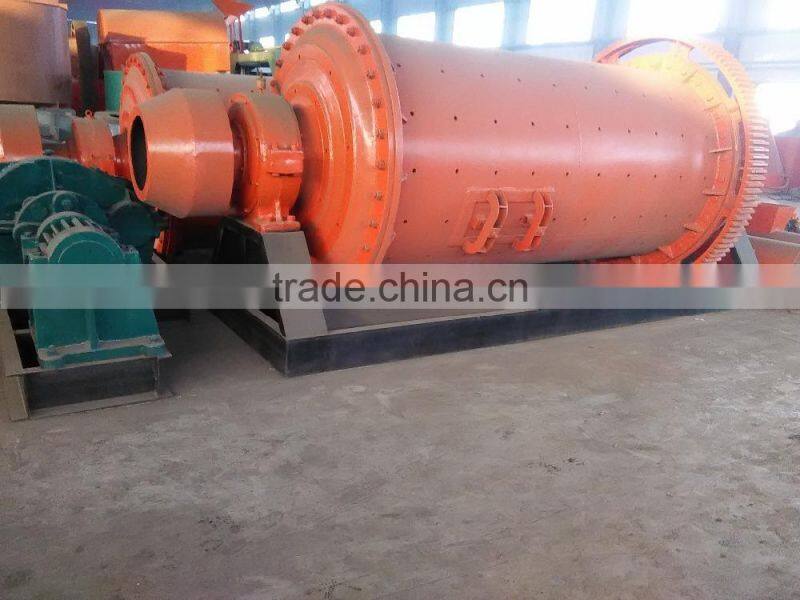

Limestone grinding ball mill plant with dust collector

Limestone ball mill working principle:



The material spirally and evenly enters into the first warehouse of the ball mill along the input material hollow axis by input material device. In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board. When the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to grind and strike the materials. After being grinded coarsely in the first warehouse, the material then enter into the second warehouse for regrinding with the steel ball and scale board. In the end, the power is discharged by output material board and the end products are competed.

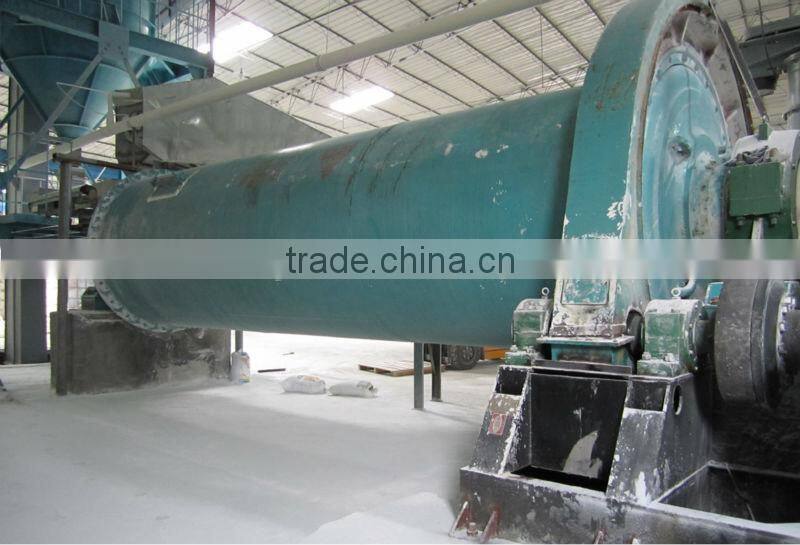

Limestone grinding ball mill plant with dust collector

Limestone ball mill main models:

Model Shell rotation speed
(r/min)		Ball load
(T)		Feeding size
(mm)		Discharging size
(mm)		Capacity
(t/h)		Motor power
(kw)		Weight
(T)
Φ900×1800381.3-1.4≤200.075-0.890.65-218.53.6
Φ900×2100381.5≤150.075-0.830.7-3.518.53.9
Φ900×3000382.7≤200.075-0.891.1-3.5224.5
Φ1200×2400323.3-3.5≤250.075-0.61.5-4.83011.5
Φ1200×2800323.8≤250.075-0.61.6-5.83013
Φ1200×4500327≤250.074-0.42-64513.8
Φ1500×3000296.75-6.4≤250.074-0.42-57517
Φ1500×3500298≤250.074-0.43-77517.5
Φ1500×45002914≤250.074-0.43.5-1211021
Φ1500×57002915≤250.074-0.43.5-811524.7
Φ1830×30002410.6-11.35≤250.074-0.44-1013028
Φ1800×36002418≤250.074-0.45-1713033.5
Φ1830×70002425≤250.074-0.47.5-2221036
Φ2100×36002219≤250.074-0.415-2237046.8
Φ2200×55002130≤250.074-0.410-3021048.5
Φ2200×65002131≤250.074-0.414-3238052.8
Φ2200×75002133≤250.074-0.416-3638056
Φ2400×300020.622≤250.074-0.422-4424559
Φ2400×45002130≤250.074-0.48.5-6038065
Φ2700×360020.639≤250.074-0.412-7040091.3
Φ2700×400020.740≤250.074-0.412-8040094
Φ2700×450020.748≤250.074-0.412-90430102
Φ3200×45001865≤250.075-0.460-125800137
Φ3500×450015.6-19.5 ≤250.075-0.475-1301000156
Φ3600×450014.8-19.2 ≤250.075-0.480-1501250165
Φ4000×600013.9-16.8 ≤250.075-0.4120-2001600248
