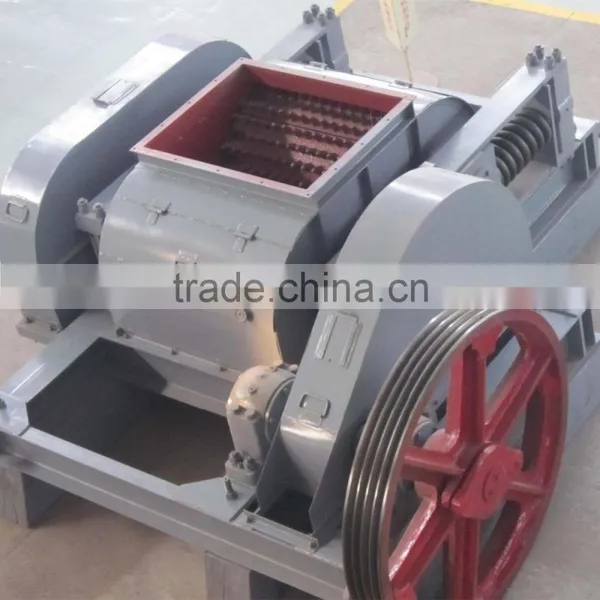

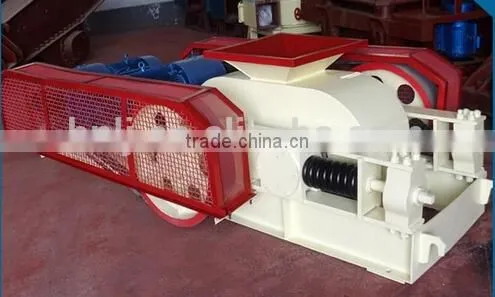

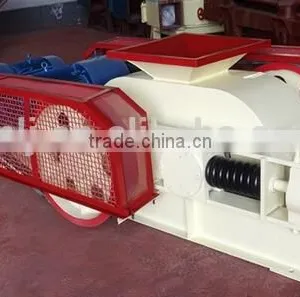

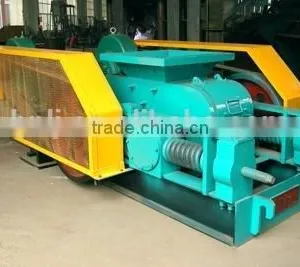

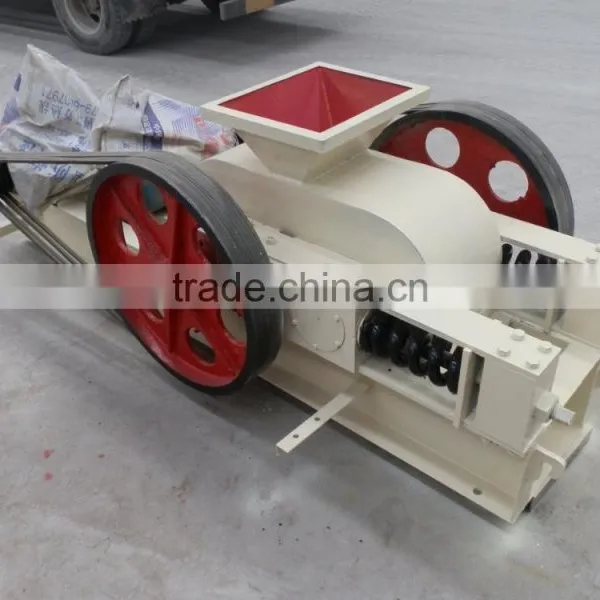

Help CenterRod Teeth Crusher for Rock Ore 2PGC600*500
Related Products
-
Diesel Engine Portable Small Jaw Crusher PE150*250&PE250*400US$ 4,300 - 90,000MOQ: 1 Set -
High Efficiency Secondary Rock Impact Crusher With Competitive PriceUS$ 100 - 99,999MOQ: 1 Set
-
Construction Waste Sand Crusher Machine for SaleUS$ 2,500 - 40,000MOQ: 1 Set
-
Small Jaw Crusher PE150*250,PE200*300 With Competitive PriceUS$ 4,500 - 30,000MOQ: 1 Set
-
Small Jaw Crusher for Mining Plant and Quarry Crushing PlantUS$ 4,500 - 90,000MOQ: 1 Set
Double rod toothed crusher application:

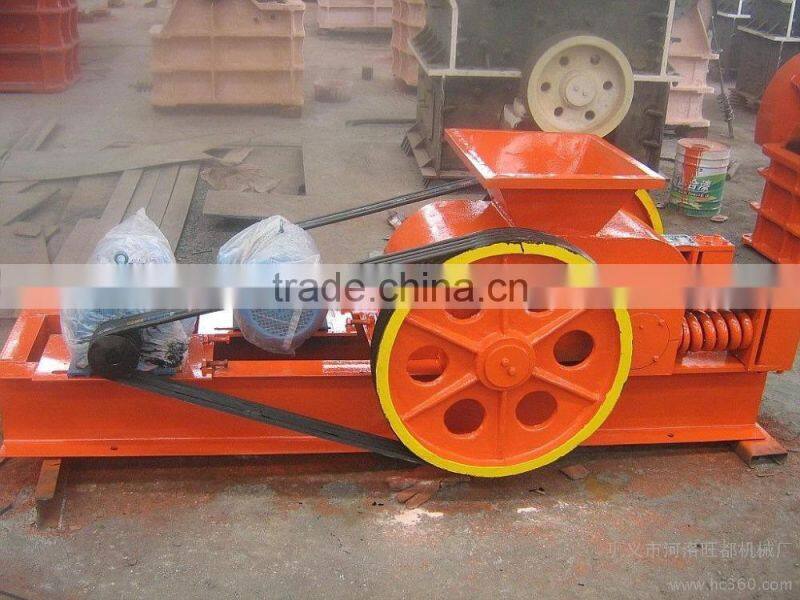

Toothed crusher is driven by one or more motors, and then, the pulley on its both sides drives the rolls turn in opposite direction, finally, the materials lower than the two automatic roll gap fall down, and the materials lower than the two automatic roll gap will be crushed on the rolls, so as to achieve the desired grain size requirements.
Double rod toothed crusher working principle:

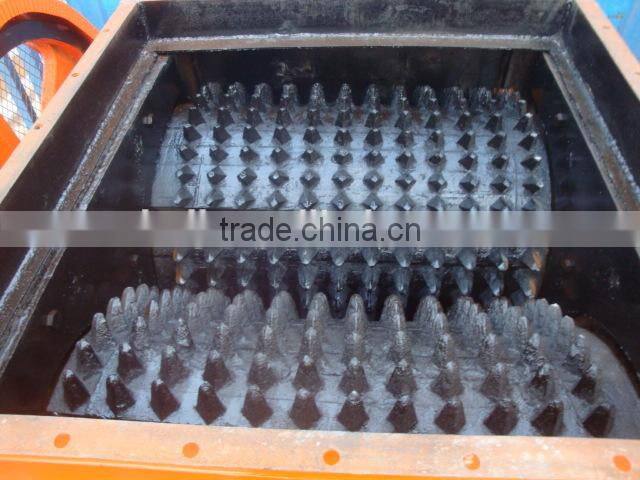

Toothed-roll crusher crushes materials using the high squeezing extrusion force generated by relative rotation of wear-resistant rolls. After materials being fed into the roll gap (V-shaped crushing cavity), materials will be crushed into required size under extrusion force and shear stress, and then, be discharged and then sent out by conveyor equipment.
Double rod toothed crusher main features:
The double toothed roll crusher has a big reduction ratio, without any requirements on moisture of to-be-crushed materials, and double-geared roller crusher is with no adhesion or blocking, large capacity, low noise, little vibration, less dust, low energy consumption, small footprint, simple and convenient maintenance and so on.
Double rod toothed crusher main technical data:
| Model | Roller diameter (mm) |
Roller length (mm) |
Max.Feeding size(mm) | Discharging Size(mm) | Output (t/h) |
Motor model (kw) |
Total weight (kg) |
Dimensions (L×W×H) (mm) |
| 2PGC600 ×500 | 600 | 500 | 200-500 | 25-125 | 46-60 | 11.5×2 | 5500 | 2450×1800 ×950 |
| 2PGC600 ×800 | 600 | 800 | 300-600 | 300-150 | 80-120 | 18.5×2 | 9800 | 4500×1900 ×1350 |
| 2PGC800 ×1050 | 800 | 1050 | 500-800 | 30-150 | 100-160 | 22×2 | 12600 | 2550×2050 ×1100 |
| 2PGC900 ×900 | 900 | 900 | 600-900 | 30-150 | 150-200 | 22×2 | 13500 | 2780×4100 ×1550 |
| 2PGC1015 ×760 | 1015 | 760 | 700-950 | 30-200 | 150-200 | 45×2 | 18000 | 2780×3200 ×1980 |
| 2PGC1200 ×1500 | 1200 | 1500 | 800-1050 | 30-200 | 200-300 | 55×2 | 52000 | 8010×4500 ×2050 |
