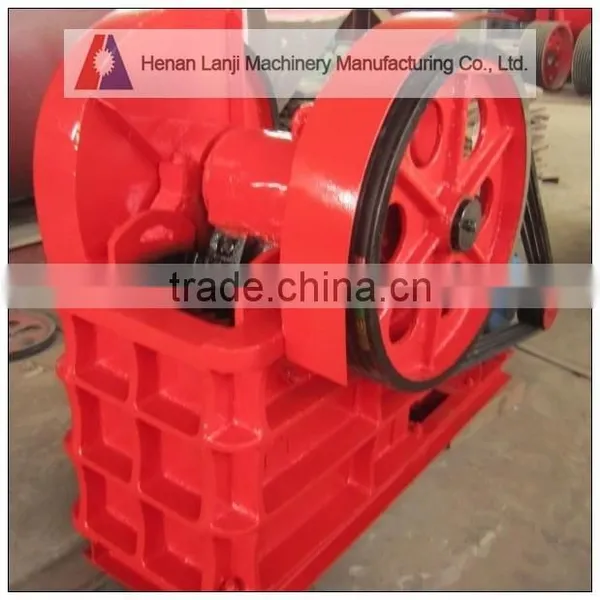

Diesel Engine Portable Small Jaw Crusher PE150*250&PE250*400
Diesel engine portable small jaw crusher PE150*250&PE250*400
Small jaw crusher/portable jaw crusher :
1. High productivity; 2. Low build in height; 3. Short toggle;
4. Sharp nip angle; 5. Long life; 6. Cost effective;
7. Easy operation; 8. Simply maintenance;

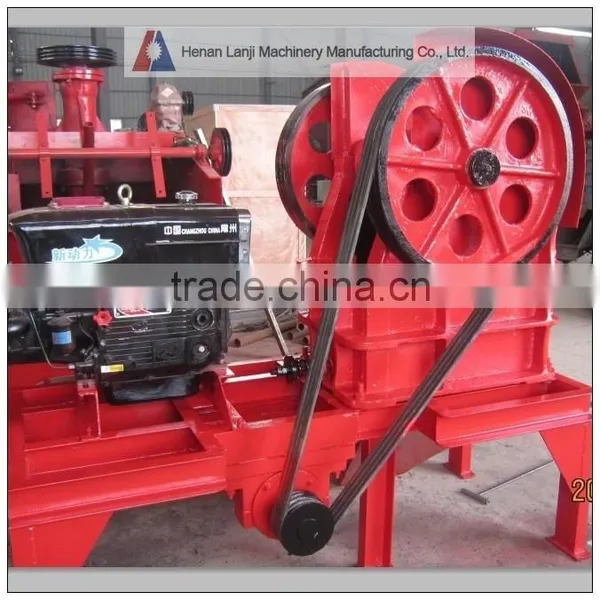

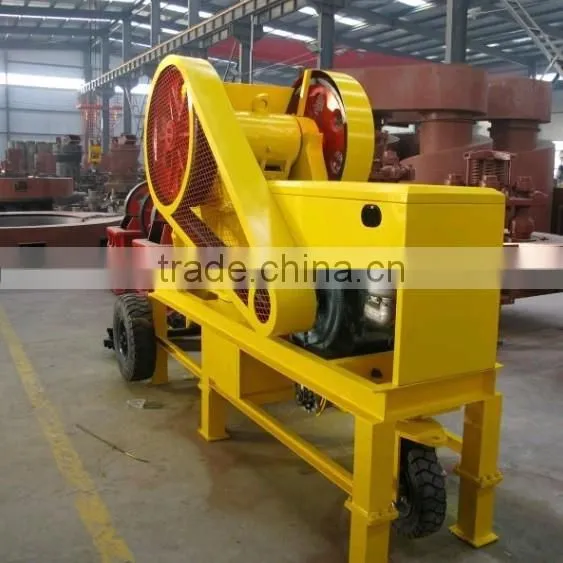

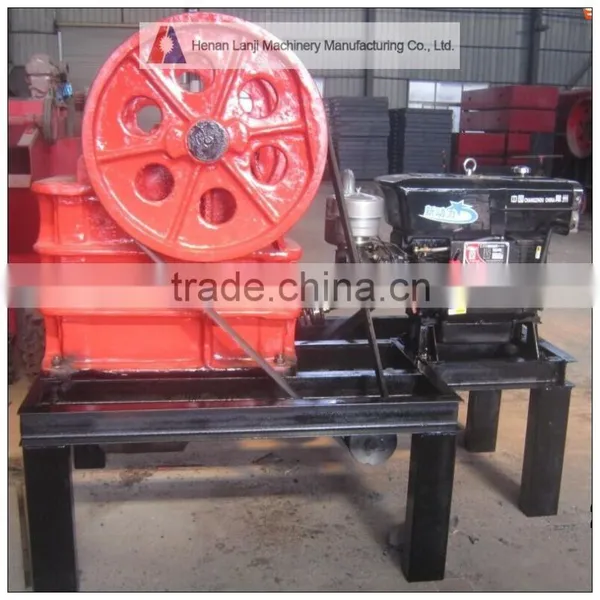

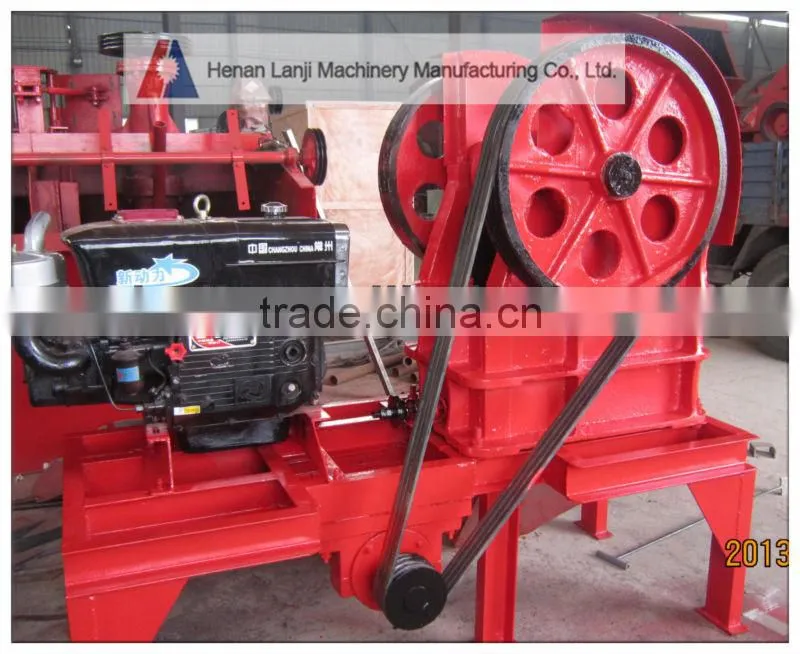

The diesel engine small jaw crusher is mainly used in some place that don't have enough electricity or without electricity. They can do the middle or fine crushing for every kind of rocks and stones. This kind of crusher is in compact structure, easy usage and simple operation. We also can do portable (mobile) ones as clients' request.

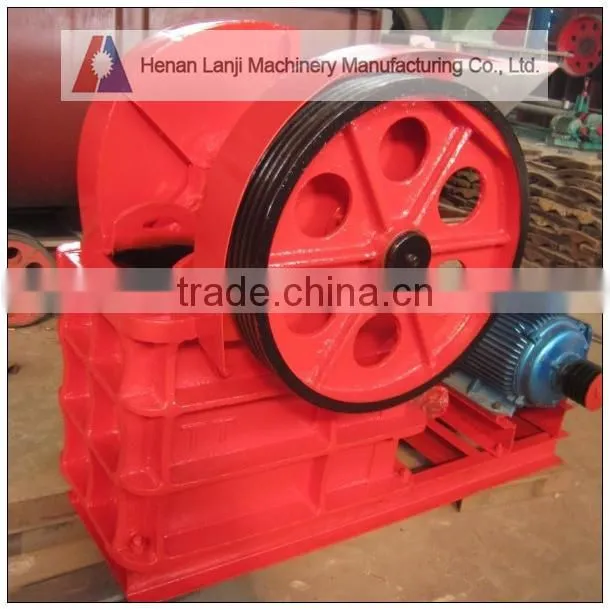

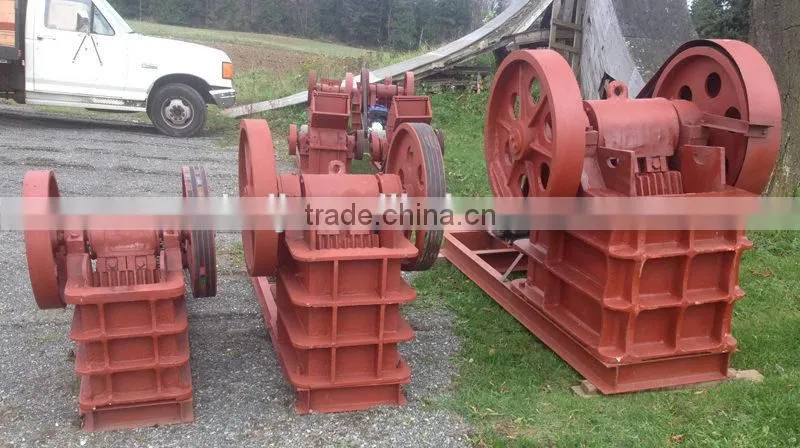

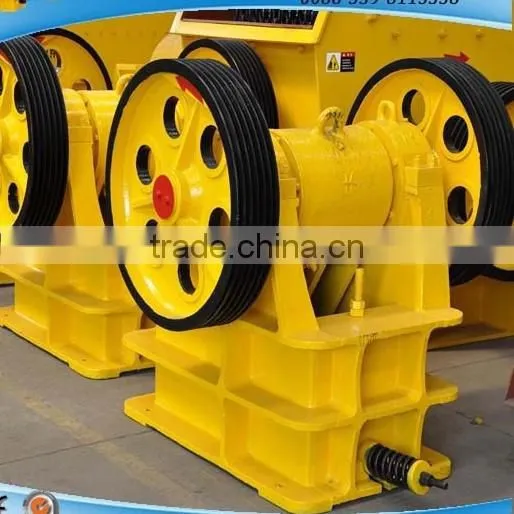

Small jaw crusher /portable jaw crusher PE150*250,PE200*300
Applications:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
As a manufacturer of Small Jaw Crusher machinery for sale, we can supply all kinds of Small Jaw Crushers such as Small Jaw Crusher , mini Jaw Crusher, mobile Small Jaw Crusher or portable Small Jaw Crusher etc.
PE Small Diesel Engine Jaw Crusher for sale is our traditional crusher machines such as small Small Jaw Crusher: PE-150×250 and PE200X300,and PE250X400.
Diesel engine portable small jaw crusher working principle:
The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.
Diesel engine portable small jaw crusher main technical parameters:
Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power for Diesel engine (kw) | Weight (kg) | Overall Dimension (mm) |
PEC1525 | <125 | 10-40 | 1-3 | 5.7 | 920 | 1836×1030×1408 |
PEC2540 | <200 | 20-50 | 5-20 | 15.5 | 3150 | 2805×1210×1860 |
PCC3040 | <70 | ≤12 | ≤8 | 11.5 | 960 | 2210×1195×1360 |
PCC4060 | <100 | ≤15 | ≤15 | 23 | 1650 | 2612×1205×1670 |

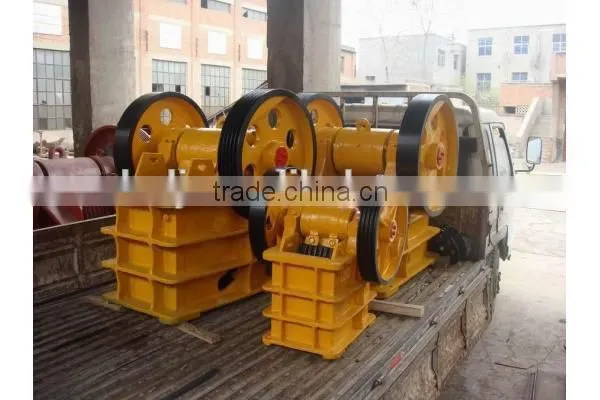

Small potable Jaw Crusher Package and shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
