High Efficiency Secondary Rock Impact Crusher With Competitive Price

impact crusher:

1.cubic shape of the final products

2.Energy saving

3.Low consumption

4.Negotiable price

High efficiency secondary rock impact crusher with competitive price:

Type:Secondary Crushing Machine

Input Size:400mm--1520mm

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Capacity:30-5000TPH

Impact crusher Application:

Impact crusher can process granite,basalt,limestone,etc,which the granularity is not bigger than 120-300mm and crushing compression strength is not more than 320mp. It is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and demolition debris. This cube shaped fineness product is the first-class device used in high grade road surface,railway,water conservancy and electricity industry.

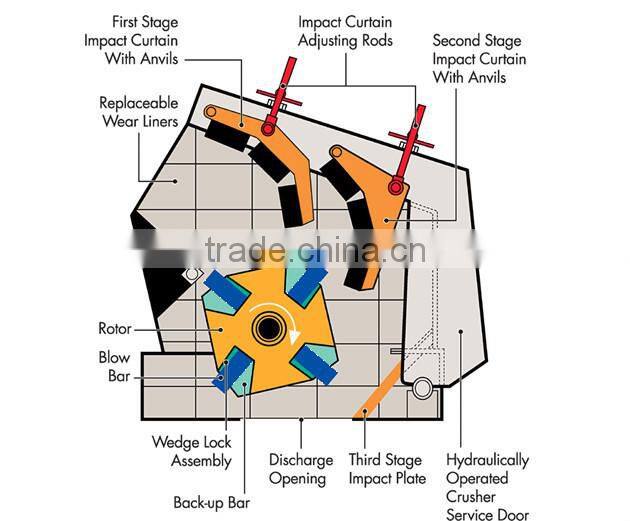

Impact crusher working principle:

1.This impact crushes materials with impact force.

2.When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush.

3.Then the materials will be shot back to the blow bar again for the third crush.

4.This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine.

The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.

Impact crusher Specification:

Features:

1,Many cavities to crush, suitable for crushing hard rock

2,Reasonable design of leveling plate making charge finer and cubic without interior cracks

3,Low and big feed opening makes the production line easy to arrange and increase the size of feeding material

4,Use the hydraulic to open, easy to maintain and change wear-parts

5,New anti-abrasive material makes longer service life of impact bar, impact plate and liner.

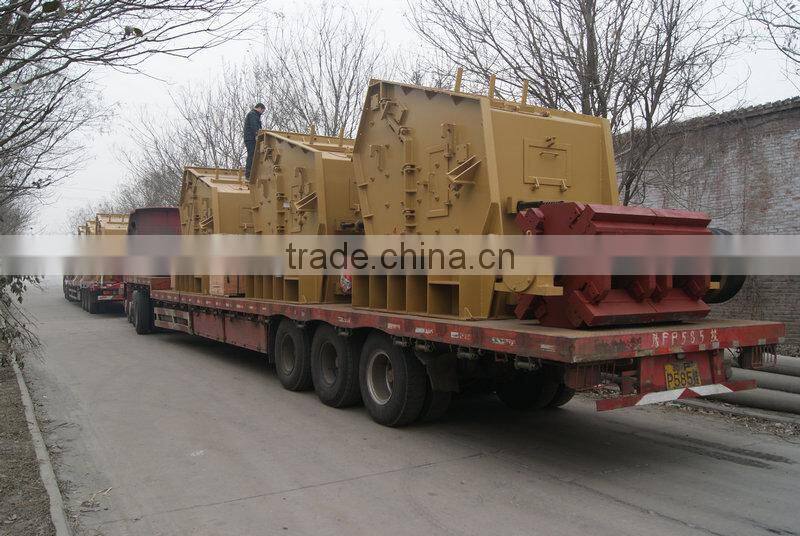

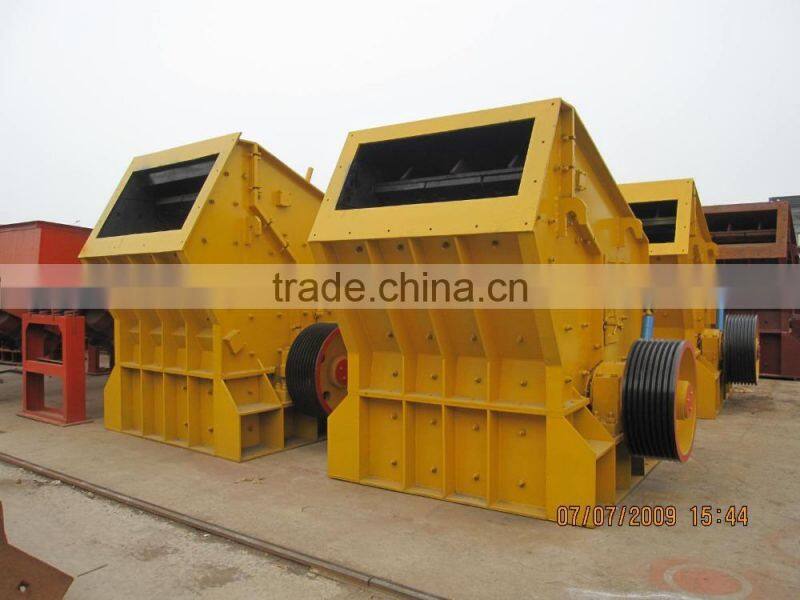

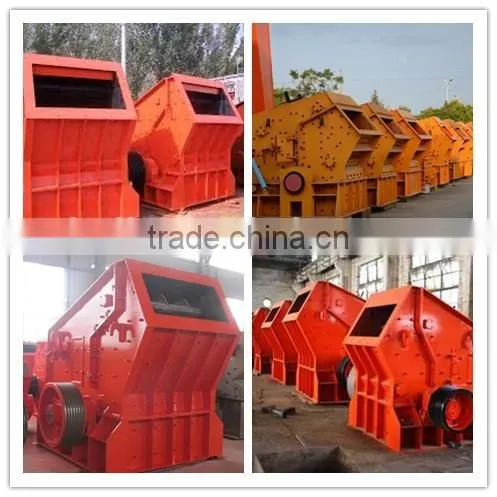

Factory photo and delivery :
