Small jaw crusher PE150*250,PE200*300 with competitive price
Small jaw crusher:
1. High productivity; 2. Low build in height; 3. Short toggle;
4. Sharp nip angle; 5. Long life; 6. Cost effective;
7. Easy operation; 8. Simply maintenance;
Small jaw crusher PE150*250,PE200*300
Applications:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
As a manufacturer of Small Jaw Crusher machinery for sale, we can supply all kinds of Small Jaw Crushers such as Small Jaw Crusher , mini Jaw Crusher, mobile Small Jaw Crusher or portable Small Jaw Crusher etc.
PE Small Jaw Crusher for sale is our traditional crusher machines such as small Small Jaw Crusher: PE-150×250 and PE200X300,and PE250X400.
Small jaw crusher introduction:
Small jaw Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry.rock jaw cursher has primary PE aw crusher and PEX secondary jaw crusher.
Small jaw crusher working principle:
Small Manual Stone Crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller, the materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber

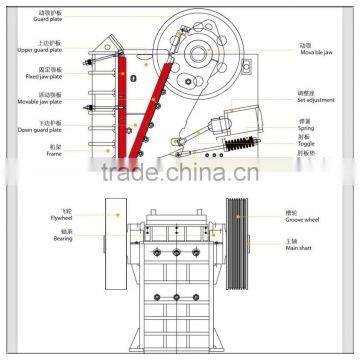

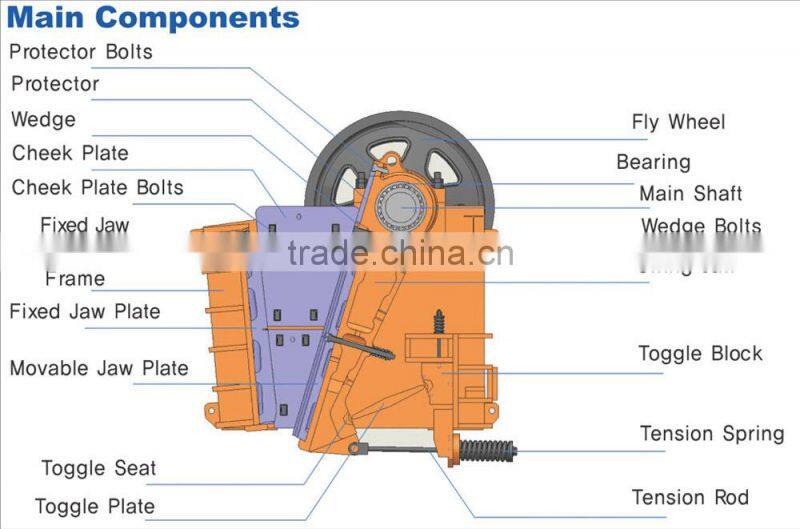

Small jaw crusher structure:

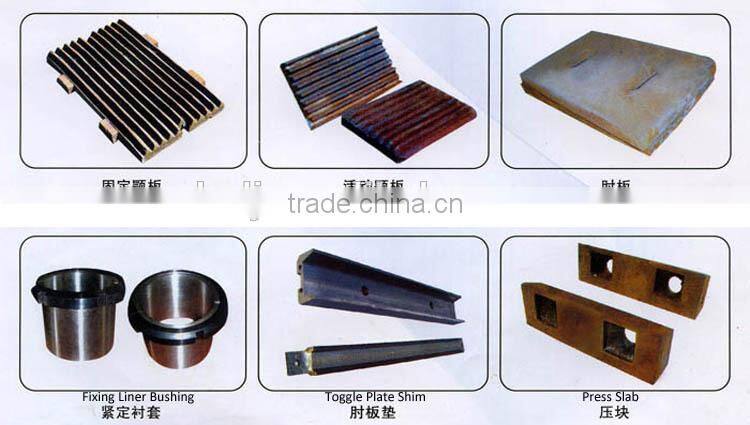

jaw crusher main spare parts:
jaw crusher main technical parameters:
| Model | Feed opening size(mm) | Max feed Size (mm) |
Adjustment range of outlet (mm) |
Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimension (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720×660×850 |
| PE-250×400 | 400×250 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 600×400 | 340 | 40-100 | 16-60 | 30 | 7 | 1730× 1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-80 | 55 | 12.5 | 1980×2080×1870 |
| PE-600×900 | 900×600 | 500 | 65-140 | 50-150 | 75 | 17 | 2190×2206×2300 |
| PE-750×1060 | 1060×750 | 630 | 80-160 | 110-260 | 90 | 30 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 220-550 | 110 | 54 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1100 | 220-350 | 450-900 | 355 | 123 | 5300×4700×4300 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 5-20 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 30 | 5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-50 | 37 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-65 | 37 | 8 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 20-90 | 55 | 12 | 2720×1950×1600 |
Small Jaw Crusher Package and shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
