sand crusher::
1.PCX Series Impact Fine Sand Crusher
2.Max feed size:190mm
3.Max out size:5mm
4.Capacity:20-320t/h
5.ISO9001:2008

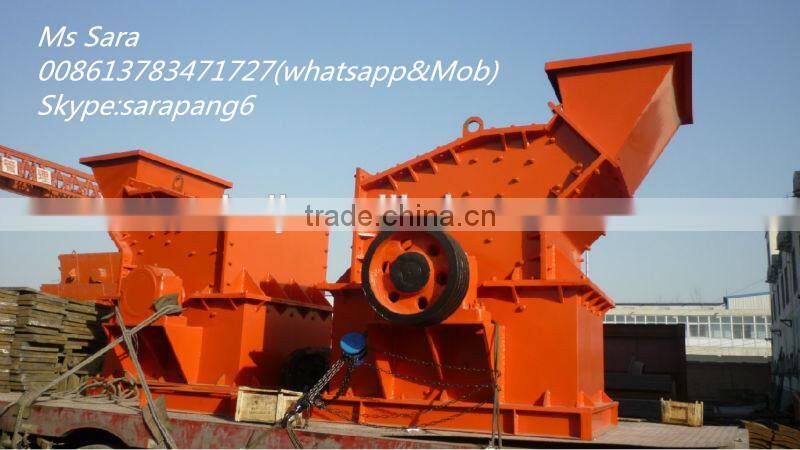

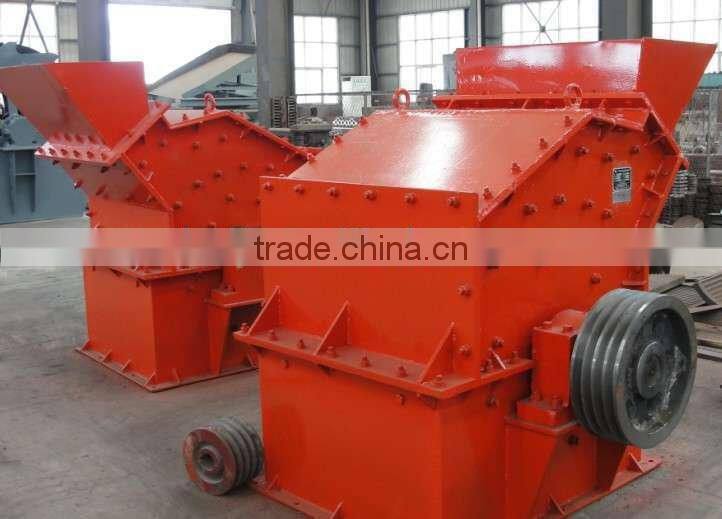

Construction waste sand crusher machine for sale:
This series fine sand crusher is with such advantages: Reliable and stable running, Simplified technology, Simple structure, Easy maintenance, large capacity and long life hammers. It is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz stone, iron ore, bauxite and other minerals. The mechanism is also used for artificial sand, high-grade highways, railways, water conservancy, airport, construction, cement, refractory, metallurgical and other industries producing high-quality stone.
The series single-stage fine sand crusher is developed based on the single-stage (counter-attack) hammer crusher to crush raw materials for industry such as limestone, gypsum, raw coal and so on and further to simplify the work flow of smashing. The product granularity is small (80% <5mm) in comparison with the ordinary single stage hammer crusher. The equipment investment is lower about 35~50% than that of the same scale traditional process. The charge of long-term movement is lower about 30% than that of the same scale traditional process equipment system. It has widely applied in cement, sand and stone material, electric power professions and so on.
PCX series sand crusher main technical parameters:
Model | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
PCX800×400 | ≤60 | ≤5(96%) | 20-25 | 37 | 2.5 |
PCX800×600 | ≤60 | ≤5(94%) | 35-50 | 45 | 4.7 |
PCX800×800 | ≤70 | ≤5(92%) | 40-60 | 75 | 6.5 |
PCX1000×1000 | ≤80 | ≤5(91%) | 60-90 | 90 | 8.8 |
PCX1000×1200 | ≤90 | ≤5(88%) | 75-110 | 110 | 13.6 |
PCX1200×1200 | ≤100 | ≤5(86%) | 120-145 | 160 | 19.5 |
Advantages:
Peculiarity: The new type high efficiency and energy-saving sandstone-making machine of the third generation has the special structure, counterattackinglinerflat hammer with high chromium which can adjust the particle size and simplifythe procedure.
High efficiency: The new types sand production rate is more than the traditional impact sandstonemachine about 40-60%.
Power saving: The new type machine can save electric 50-70% which is more than the traditional sandstone machines.
High quality: The finished product of sandstone with cubic shape has the strong ability of anti-pressure which is applied to the high-standard architecture. And the 85% sandstones product particle size is less than 5mm.
Save money: The new type machine can save money 50-60% than traditional one.
Maintenance: The new type machines maintenance ratio is lower 50-60% than traditional ones.
