Competitive price hydraulic colorful paver brick machine from China manufacturer
- 40 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Competitive price small/mini concrete brick machine from China manufacturer
-
Batch type sand mixer /sand muller for brick making production line
-
QT4-25 Semi-automatic concrete /cement hollow block making machine
-
Full-automation concrete block making machine model QT8-15
-
Unburned Fully automatic concrete block making machine QT6-15
-
Fully automatic concrete block making machine QT4-15
Product Details
| Condition | New | Type | Other, Paving Block Making Machine, colorful paver brick machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 8000-12000 pcs /8hours | Place of Origin | Henan, China | |
| Brand Name | Lanji | Model Number | QT3-35 | |
| Voltage | customization | Power | 11.5 Kw, 11.5 Kw | |
| Dimension(L*W*H) | 4.0*3.5*2.3 m | Certification | ISO | |
| Warranty | 2 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Competitive price hydraulic colorful paver brick machine from China manufacturer

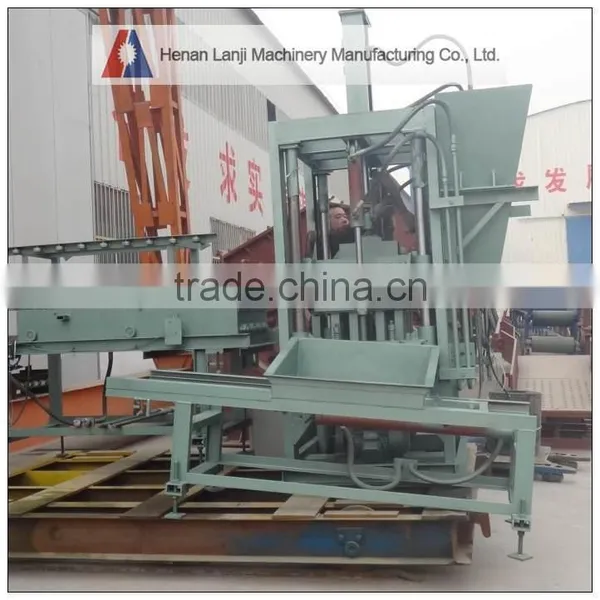

QT3-35 Hydraulic paving brick making machine:

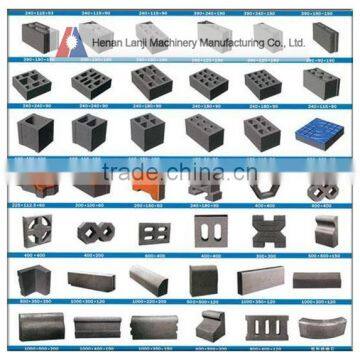

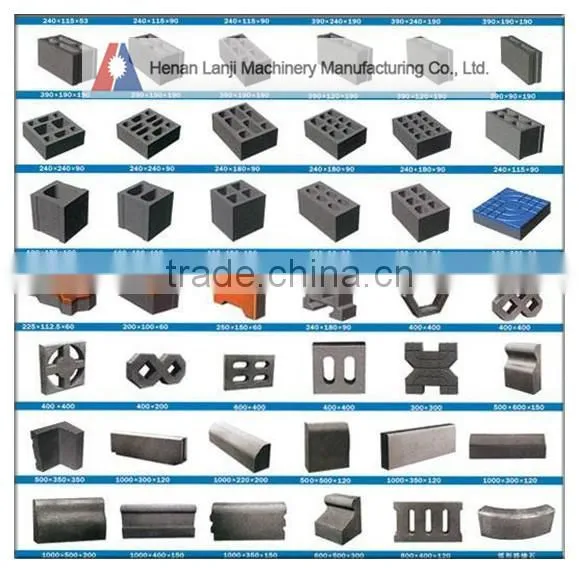

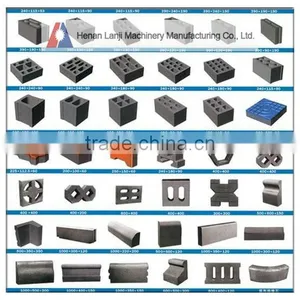

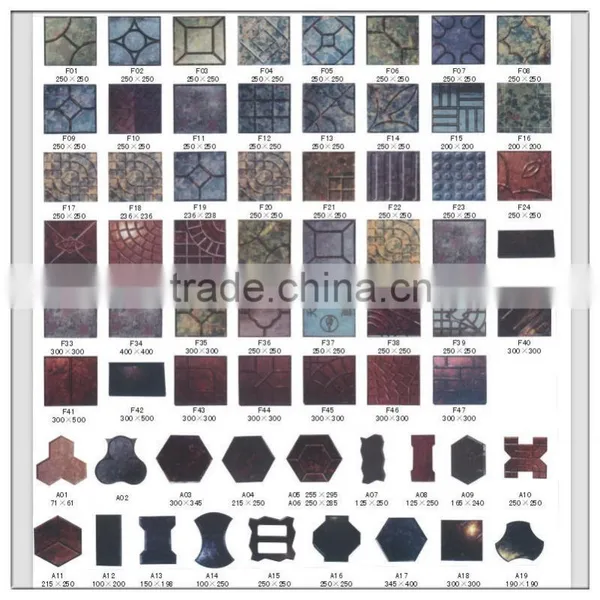

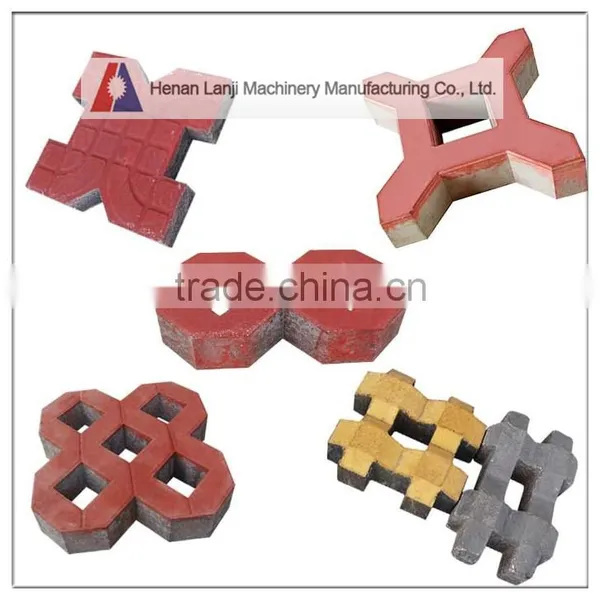

Can be compressed: all kinds of square brick, road-edge stone, lawn brick, the Netherlands brick, Spain brick, mixly brick, blind brick, Tree well brick and split products etc, is the production of large size brick of ideal equipment, and can be widely used in municipal, square, courtyard, community construction, gardens, buildings, etc.
2. Technical parameters:
1) Hydraulic concrete block making machine:
Mould box dimensions(L ×W×H) | 690×535×20mm |
Molding blocks | Hollow390×190×190mm(3 blocks) |
Molding cycle | 20-30seconds/time |
Design and production capabilities | Road brick: 8000-12000 pcs /8hours Multi hollowed brick:8000-12000 pcs /8hours |
Vibration frequency | 4500times/minute-5000times/minute |
Vibration | 22kn |
Top oil cylinder | 63×300 stem Diameter 32 |
Edge oil cylinder | 63×250 stem Diameter 32 |
Hydraulic system pressure rated | 6.3kpa |
Installed capacity | 11.5 Kw |
Overall unit capacity | 3000kgs |
Outline dimensions | 4000×3500×2300mm |
2) Mixing machine:
Discharging Capacity | 350L | |
Charge Capacity | 560L | |
Production Capacity | 15 m3/h | |
Max Grain Size | 40mm | |
Appearance Size | Φ1300*1200 | |
Total Weight (kg) | 700 | |
Stirring Vane | Rotary Speed | 35 round/min |
Mixer power | Power | 5.5kw |
One 20 feet container can pack 2 lines machine with model QT3-35.
We can send engineers go to buyer site for guiding installation.
Thanks so much for you taking time to browse our colorful paver brick making machine. Any further questions, please feel free to contact us and we are ready to so service for you!
Fast contact ways:
1. Mobile phone: 0086-13613714234
2. Telephone: 0086-371-67833678
3. Skype: gaoyan906820
4. Contact name: Nancy Gao
5. QQ: 87985463
6. Wechat: nancygao906
