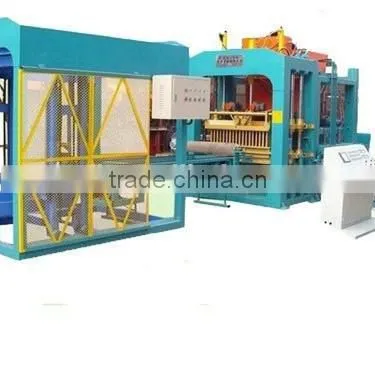

QT4-25 Semi-automatic concrete /cement hollow block making machine:
1. Introduction of Concrete Brick Making Machine
1.Four-bar guidance ensure the accurate action of pressure head and mould.
2.The body of machine produced by casting of high precision ,intensity and special welding material, it features by high rigidity,good resistance to vibration and long service life.
3.Electrical system using PLC controller with data entry devices export control system,including security logic control and fault diagnosis system.
4.Vibrating table with press makes blocks. To-and-fro guiding feeder feeds the material. It is of short moulding cycle and high production efficiency. The brick is of high intensity and accurate dimension.
5.Using electromechanical integration technology, make sure the equipment running stably and low rate of waste.
6.By changing mould, this machine can produce every sort of blocks such as hollow block, kerbstone, pavior brick, grassed brick and slope block. It can produce color pavior blocks with special device.
2: Technical parameters and Production capacity of QT4-25
| Main DATA | |||
| Brand Name | LanJi | Forming style | Mechanical |
| Power | 12.7kw | Voltage | 220/240/380/440V |
| Exciting Force | 35.5KN | Shaping Cycle | 25-30s |
| Control | PLC | Water Consumption | 2.5T/day |
| Weight | 3T | Machine Size | 3700*2100*2300mm |
| Pallet Size | 850*550*30mm | ||
| Simple Production Line Area | |||
| Workshop | 60m^2 | ||
| Office | 50m^2 | ||
| Total | 700m^2 | ||
| Worker Arrangement | |||
| Operate | 1 | Material Loader | 1 |
| Drive Forklift | 2 | Feeding Pallet | 1 |
| Maintain | 1 | Total | 6 |
| Components | |||
| Host Machine | QTJ4-25 | Control System | PLC |
| Mixer | JS300 | Conveyor Belt | 6M |
After sale services:
1.One year warranty for the critical component.
2.Provide installation and debugging.
3.After one year, we can help you to maintain the machine and the accessories are provided only on the cost rice.
4.We can help you train the operator and mechanic.
5.We can help you to design the production line, workshop and provide turn-key project.
