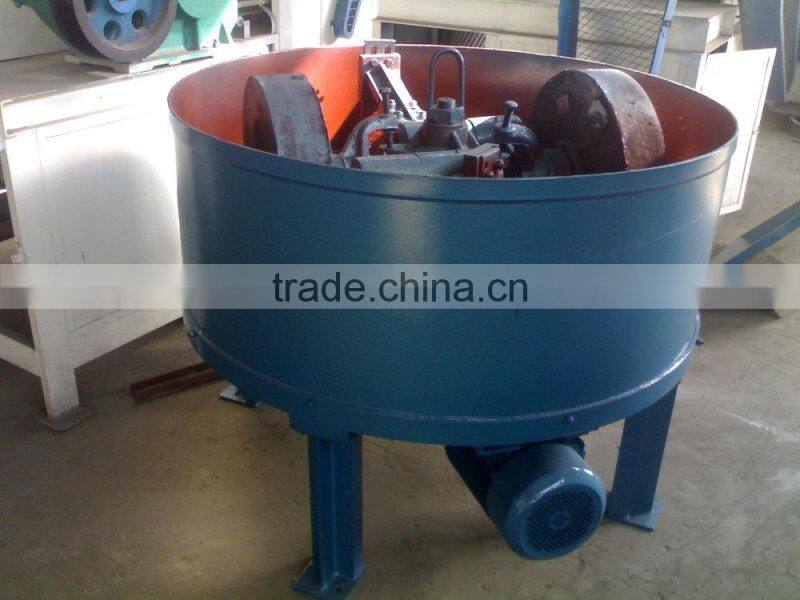

Batch type sand mixer/sand muller for brick making production line
Sand mixer application:
Sand mixer can crush the materials and mix them at the same time, so that it is the ideal equipment for producing baking-free brick, lime-sand brick, cement brick and refractory brick and for crushing and mixing coal ash, boiler slag and tailing slag.
Sand mixer features:
The Structure Composition of Sand Mixer:
This machine is composed of machine rack, driving mechanism and rolling mechanism.
(1) The machine rack is composed of machine plate, sand discharging door, sampling gate, air switch and air switching valve.
(2) The driving mechanism consists of reducer, oil pump and stand column.
Sand mixer main technical parameters:
Item |
S1120D |
S1118C |
S1118 |
S114C |
S1110 |
S111A |
|
Plate dia |
Mm |
Φ2000 |
Φ1800 |
Φ1800 |
Φ1820 |
Φ1000 |
Φ1200 |
Feeding material amount |
Kg per time |
900 |
650 |
500-650 |
500 |
110 |
110 |
Production capacity |
T/h |
20 |
15 |
13-15 |
10-13 |
1.5-2.5 |
1.5-2.5 |
Main motor power |
Kw |
37 |
30 |
22 |
15 |
4 |
4 |
Main shaft rotary speed |
R/min |
34 |
36 |
36 |
34 |
44 |
44 |
Pressure of one wheel |
N |
0-9000 |
0-6000 |
0-6000 |
0-3000 |
0-1100 |
1280 |
Overall dimensions |
Mm |
3125×2192× 2995 |
1910×2003× 2700 |
1977×1997× 1800 |
2082×1882× 1755 |
1024×1474× 1370 |
1778×1024× 1370 |
Total weight |
Kg |
6500 |
5000 |
3900 |
3700 |
900 |
1300 |
