Product Details
| Condition | New | Type | Other, Paving Block Making Machine, mini concrete brick machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 8000-12000 pcs /8hours | Place of Origin | Henan, China | |
| Brand Name | Lanji | Model Number | QT3-35 | |
| Voltage | customization | Power | 11.5 Kw, 11.5 Kw | |
| Dimension(L*W*H) | 3.0*2.0*1.8 m | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Competitive price small/mini concrete brick machine from China manufacturer
QT3-35 Hydraulic paving brick making machine:

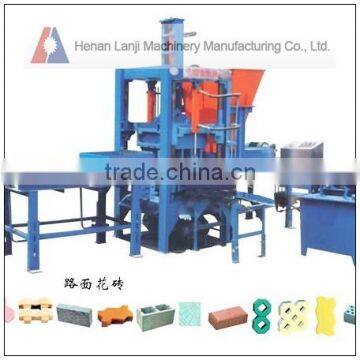

Can be compressed: all kinds of square brick, road-edge stone, lawn brick, the Netherlands brick, Spain brick, mixly brick, blind brick, Tree well brick and split products etc, is the production of large size brick of ideal equipment, and can be widely used in municipal, square, courtyard, community construction, gardens, buildings, etc.
2. Technical parameters:
1) Hydraulic concrete block making machine:
Mould box dimensions(L ×W×H) | 690×535×20mm |

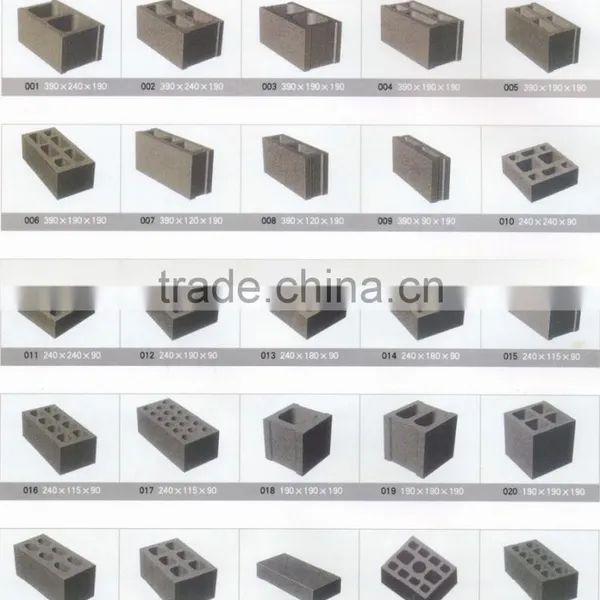

Molding blocks | Hollow390×190×190mm(3 blocks) |
Molding cycle | 20-30seconds/time |
Design and production capabilities | Road brick: 8000-12000 pcs /8hours Multi hollowed brick:8000-12000 pcs /8hours |
Vibration frequency | 4500times/minute-5000times/minute |
Vibration | 22kn |
Top oil cylinder | 63×300 stem Diameter 32 |
Edge oil cylinder | 63×250 stem Diameter 32 |
Hydraulic system pressure rated | 6.3kpa |
Installed capacity | 11.5 Kw |
Overall unit capacity | 3000kgs |
Outline dimensions | 4000×3500×2300mm |
2) Mixing machine:
Discharging Capacity | 350L | |
Charge Capacity | 560L | |
Production Capacity | 15 m3/h | |
Max Grain Size | 40mm | |
Appearance Size | Φ1300*1200 | |
Total Weight (kg) | 700 | |
Stirring Vane | Rotary Speed | 35 round/min |
Mixer power | Power | 5.5kw |
