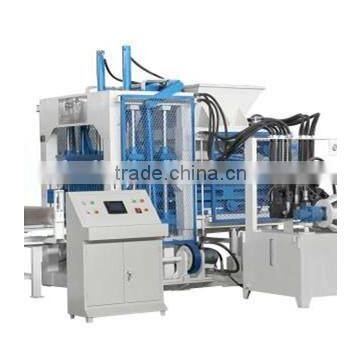

Unburned Fully automatic concrete block making machine QT6-15:
QT4-15 concrete block making machine Product characteristic
PLC control, human-computer interface operation, human-computer dialogue available.
Direct vibration of mould box, the swing of mould box and concrete mix in consistency with that of frequency vibration system.
Great vibration power, high force, high vibration acceleration, cycle time shortened to about 15s.
Dense, quality concrete blocks, the block intensity being MU10-MU20.
High efficiency: a single shift can produce 9600pcs standard concrete blocks.
Hydraulic and electric components are imported, featuring strong reliability and low failure rate
The raw material: sand, crushed stone, cinder, slag, coal slack, stoner dust, mixed coal ash, power plant wet handling ash, dry handling ash, refuse ore ash, volcanic cinder, steel slag, stone processing waste slag.
This model QT6-15 concrete block making machine is a multi-purpose machine. It can manufacture wall bricks, heat-insulating bricks, grass pavers, square pavers, slop protection pavers, road shoulder pavers, curbs, etc by simply changing the mould. When pressured, transform the excessive oil into vibration force. Computers control all directional vibration, frequency conversion, braking and cancellation of vibration energy consumption. Low frequency feeding, high frequency vibration and template suppressing vibration make the concrete fully liquefied and exhausted within two to three seconds. With the use of new technology, QT6-15 can produce 0.45 m2 blocks, 15pcs perforated bricks within 15 seconds, and QT8-15 model can produce 0.56 m2 blocks, 20pcs perforated bricks within 15s, notably raising working efficiency.
Item |
Units of measurement |
QT6-15 |
QT6-15A |
QT8-15 |
Wall body brick blocks |
Standard building blocks(Pcs/mold) |
6 |
6 |
7.5 |
Multi-pore bricks |
15 |
18 |
20 |
|
95 standard brick(Pcs/mold) |
30 |
36 |
40 |
|
Pallet size |
Mm |
850×680 |
850×780 |
1100×680 |
Double shifts annual yield |
M3 |
100000 |
110000 |
120000 |
Power |
Kw |
36 |
36 |
38 |
weight |
T |
10 |
10.5 |
