Specifications: Aluminum foil container making machine
Aluminum foil container making machine
Features:
1. This full making machine work automatically. Worker control and regulate this plant through electric control panel, including the air-pressure and electricty.
2. The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high-precision step.
3. The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when changes a mould.
Working flow:
Aluminium foil roll---decoiler---foil feeder---63T pneumatic press---mould---container collector--- collection desk
Main parameters of machines:
1) 63T press
Model |
JF21-63T press |
Nominal PRESSURE(KN) |
630 |
Slide Block Stroke(mm) |
120-260mm(4.72” -10.24” ) |
Slide Stroke Per Minutes |
70-50 |
Maximum Die Set Height(mm) |
310-450(12.2” -17.71” ) |
Die Set Height Adjustment(mm) |
70mm(2.76” ) |
Slide Bottom Size(mm) |
480*400mm(18.9” *15.75” ) |
Stemhole Size(mm) |
φ 60*65mm(2.36” *2.56” ) |
Bolster Surface Size(mm) |
870*520/1000*800mm(34.25” *20.47” /39.37” *31.5” ) |
Total Power(KW) |
5.5-7.5 |
Weight(Kg) |
5500-6300 |
Overall Dimension Before Changed(mm) |
1610*1200*2500mm(63.39” *47.24” *98.43” ) |
Overall Dimension After Changed(mm) |
1800*1300*2700mm(70.87” *51.18” *106.3” ) |

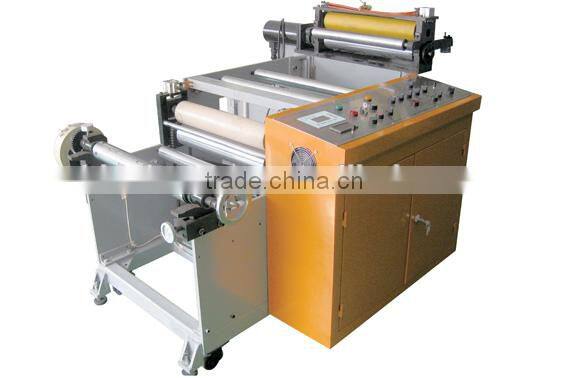

2) Aluminum foil material feeding machine
Model |
XWSL-55 |
Max.width of ROLL |
550MM |
Max.unwind roll diameter |
600mm |
feeding speed |
0-35m/min |
feeding length |
20-999mm |
feeding Accuracy |
+-0.3mm |
Working voltage |
380/220v |
Total power |
1.4kw |
Weight of machine |
850kg |
Dimension |
2000*13000*900mm |

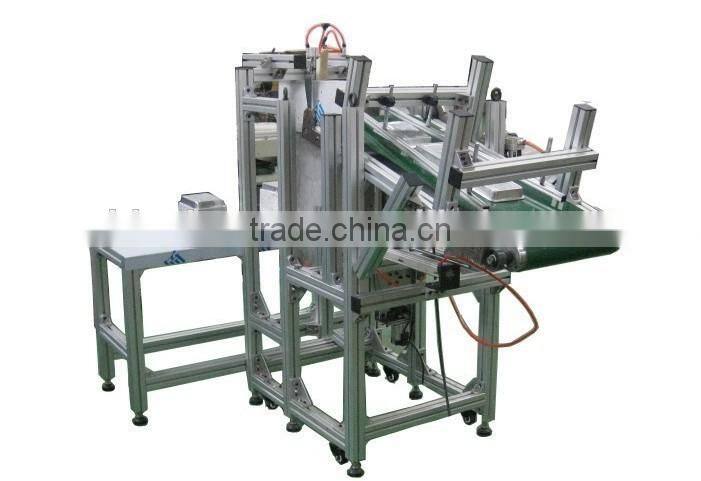

3) Stacker
4) Scrap collecting device
Our advantages:
1. More than 10 years experience
2. Professional and international team
3. Top technology; highest quality
4. Open and innovative idea
5. Lifetime technical advice
