Specifications: Preform/cap injection moulding machine
* Stable operation, high speed
* Clamp tonnage: 1680 kn
* Control System: PLC Touch Screen

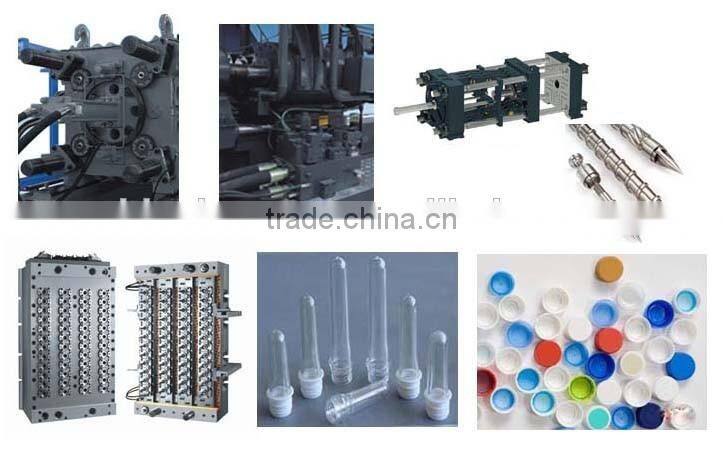

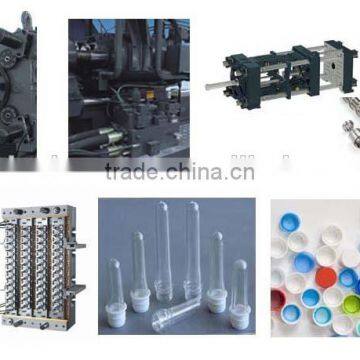

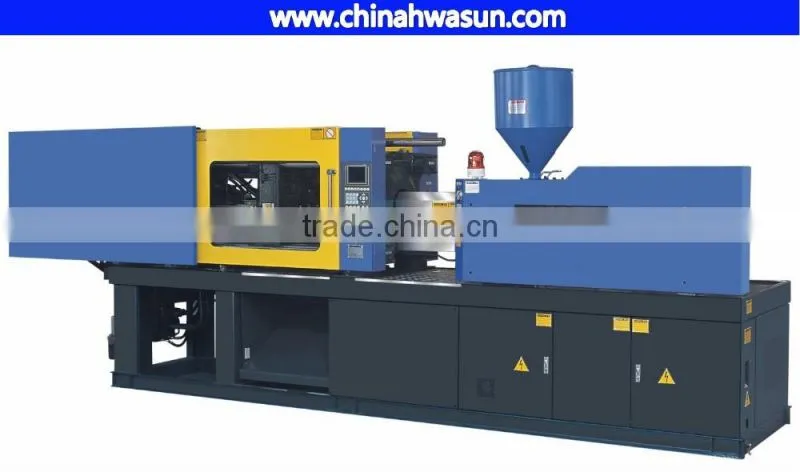

Preform/cap injection moulding machine
Introduction:
The diversified range of injection moulding machines cover all the applications in the standard sector, and fulfill international quality standards. With clamping forces between 600 and 125,000, with the high performance of the injection moulding machine and less pricing, our machines create the critical competitive advantages for our customers.
Description:
1) PLC Controller: It uses the latest control technology. This high-performance control system provides the ideal communication between the injection moulding machine and the operator.
2) PET Injection Unit: High precision and stability. The force is always applied centrally as the two drive cylinder for the unit movement and two injection cylinders for screw injection. There are three different screw sizes to be selected according to process and application. The barrel temperature can be set and monitored by the control.
3) Clamping System: The pneumatics of the proved 5-point toggle allows high sensitivity in the opening and closing processes and protects injection moulds from excessive wear and tear. The fast mold closing device is optimized to shorten the cycle time.
4) Hydraulic System: The hydraulics are fitted with sound reduced and are made of high-quality components. They allow much greater forces to be transferred and enable very uniform and precision movements of the machine.
Main Parameters:
Specification |
| MG-1680 | ||
Injection unit |
| A | B | C |
Screw diameter | Mm | 40 | 45 | 48 |
Screw L/D ratio | L/D | 22.5 | 20 | 18.8 |
Shot size(theoretical) | Cm3 | 245 | 310 | 353 |
Injection weight(pet) | g | 228 | 290 | 328 |
Injection rate | g/s | 118 | 150 | 170 |
Plasticizing capacity | g/d | 18 | 22 | 25 |
Injection pressure | Mpa | 196 | 155 | 136 |
Screw speed | ram | 0-195 | ||
Clamping unit |
|
| ||
Clamp tonnage | kn | 1680 | ||
Toggle stroke | mm | 430 | ||
Space between tie bars | mm | 460*460 | ||
Max. mold height | mm | 480 | ||
Min. mold height | mm | 180 | ||
Ejector stroke | mm | 120 | ||
Ejector tonnage | KN | 40 | ||
Ejector number | piece | 5 | ||
Others |
|
| ||
Max. pump pressure | Map | 16 | ||
Pump motor power | KW | 15 | ||
Heater power | KW | 7.5 | ||
Machine dimension(LxWxH) | m | 5.0*1.4*2.1 | ||
Machine weight | t | 5.2 | ||
Hopper capacity | L | 25 | ||
Oil tank capacity | L | 250 | ||
Our advantages:
1. More than 10 years experience
2. Professional and international team
3. Top technology; highest quality
4. Open and innovative idea
5. Lifetime technical advice
