Specifications: Automatic small bottle washing filling capping 3in1 machine
* Stable operation, high speed
* Output: 2000bph-36000bph
* Control System: PLC Touch Screen
* Bottle volume: 0.2-2L bottle

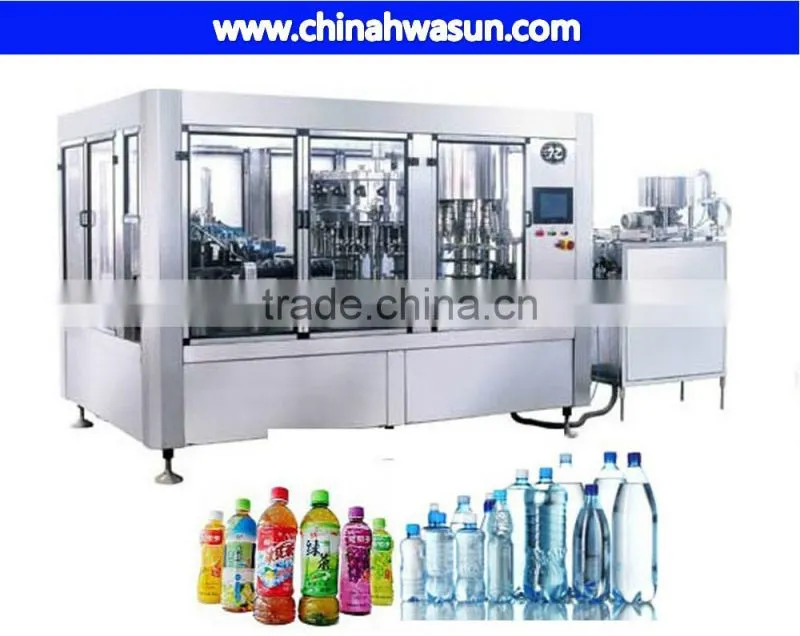

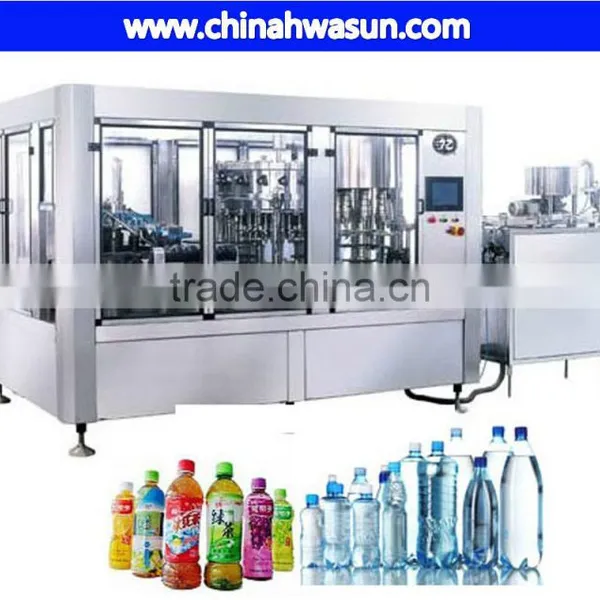

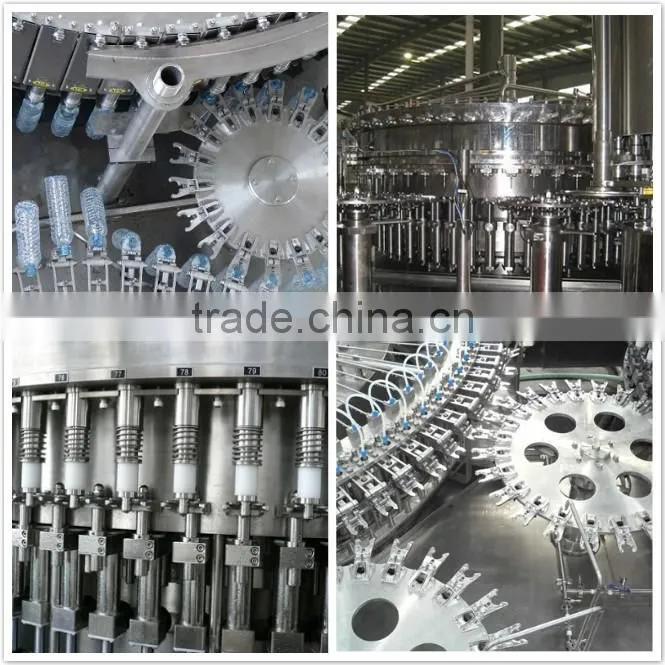

Automatic small bottle washing filling capping 3in1 machine
Description:
1) The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping ate composed in one body of the machine.
2) The whole process is automatic. The machine is used to fill mineral water, purified water and juice in bottles made of polyester and plastics.
3) The machine is conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machines of the same specifications.
4) The advanced OMRON programmed controller(PLC) is adopted to control the machine runs automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speed and coordinate with transducer of the main machine to make the output of moving bottle forward steadily and reliably.
5) It is convenient to operate with higher automation due to adoption of photo electrical detector of each part. The machine is ideal-preferred equipment for beverage producers.
Main Parameters:
Model | Washing heads | Filling heads | Capping heads | Production capacity (b/h) (500ml) | Motor power (kw) |
HS14-12-4 | 14 | 12 | 4 | 3000 | 3 |
HS16-16-5 | 16 | 16 | 5 | 6000 | 3 |
We can supply the capacity range: 2000bph-36000bph (500ml) | |||||
Our advantages:
1. More than 10 years experience
2. Professional and international team
3. Top technology; highest quality
4. Open and innovative idea
5. Lifetime technical advice
