Specifications: Automatic PET bottle stretch blow moulding machine
* Stable operation, high speed
* Output: 4000bph
* Control System: PLC Touch Screen
* Cavity: 4 cavity

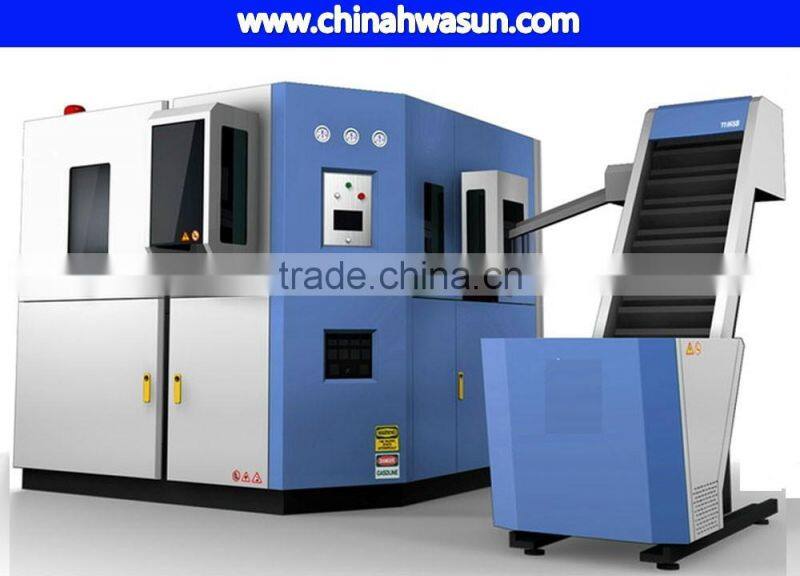

Automatic PET bottle stretch blow moulding machine
Introduction:
Our company has rich experience to design various reheat stretch blow moulding equipments. After years of R&D, now we introduce the latest economical stretch blow moulding machine to the market. The MG-E4000 is an economic two stage automatic stretch blow moulding machine, which is mainly designed for the PET stretch blow bottles. The MG-E4000 consumes less power due to optimized machine layouts and patented perform heating system, so the end of user can achieve maximum profit in today's competitive bottle moulding market.
Description:

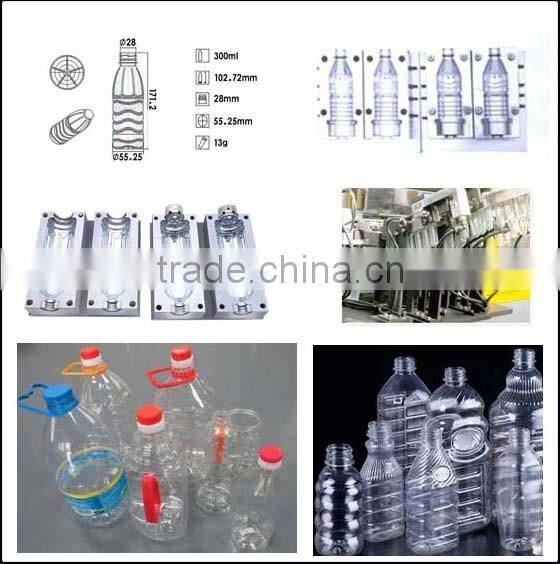

1) This automatic blowing machine can blow plastic vessels of various calibers.
2) The product quality is stable; the structure is reasonable; it has small volume, less energy consumption, convenient operation and maintenance.
3) All the mechanical parts of the automatic blowing machine are treated with high technology, processed elaborately and assembled delicately to meet the technical requirements of various aspects.
4) The moving parts adopt boundary lubricating bearing and straight line guide rail pair (Japanese slider) connection; mechanical collision adopt buffer (Japanese), thus the mechanical noise is low, the fault rate is low and the service life is long.
5) The unique blowing machine design make it has a quite high yield rate.
6) The operation of machine is fully controlled by computer; the action is accurate and reliable. The humane operation and machine running monitoring are realized through human-machine interface.
Main Parameters:
General Information | MG-E4000 |
Clamping Force | 370KN |
Max. Stretching Stroke | 370MM |
Bottom Moving Stroke | 70MM |
Number of Cavities | 4 cavity, 2 Cavity (3-6L), |
Space Between Tie Bars | 640X380MM |
Electrical System | |
Voltage Standard | 380v/3PH/50Hz or special order |
Number of Heating Zone | 4 Sections |
Total Power (Full Loaded) | 60KW |
Air system | |
Low Air compressor | 10Bar |
High Air compressor | 30-40Bar |
Dimension & Weight | |
Blow molding machine | 2.5x1.5x1.8m |
Preform Autoloader | 1.1x1.2x2.2m |
Net Weight | 3.5 T |
Economical blow moulding machine is also known as Reheat stretch blow moulding machines, Stretch blow moulding machines and PET blow moulding machines.
Our advantages:
1. More than 10 years experience
2. Professional and international team
3. Top technology; highest quality
4. Open and innovative idea
5. Lifetime technical advice
