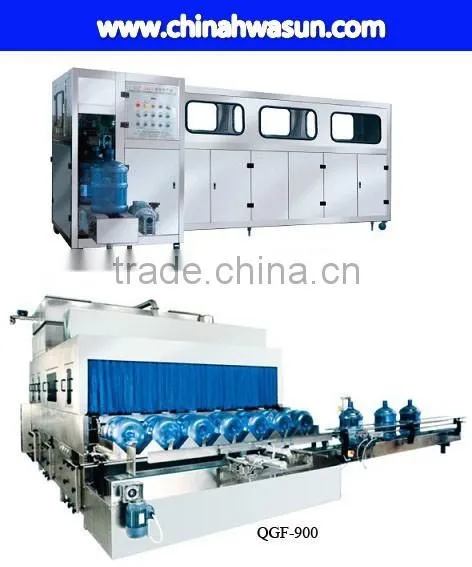

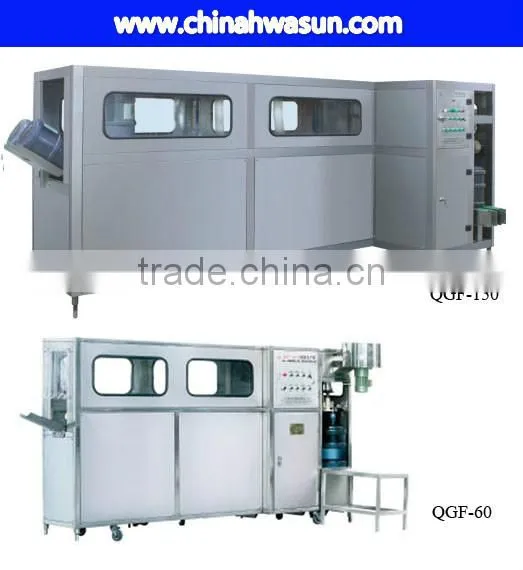

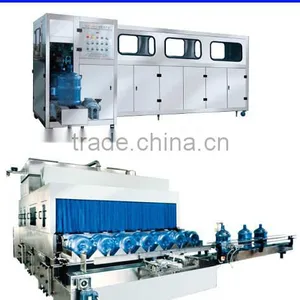

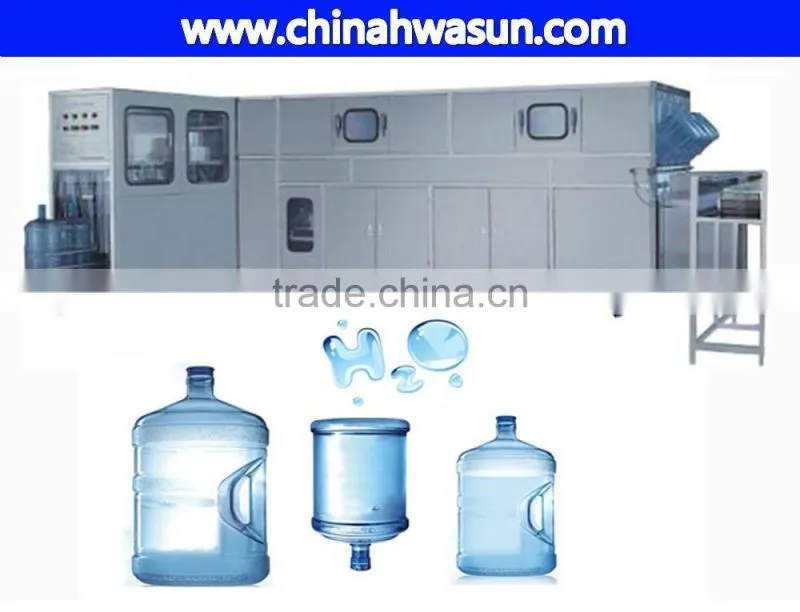

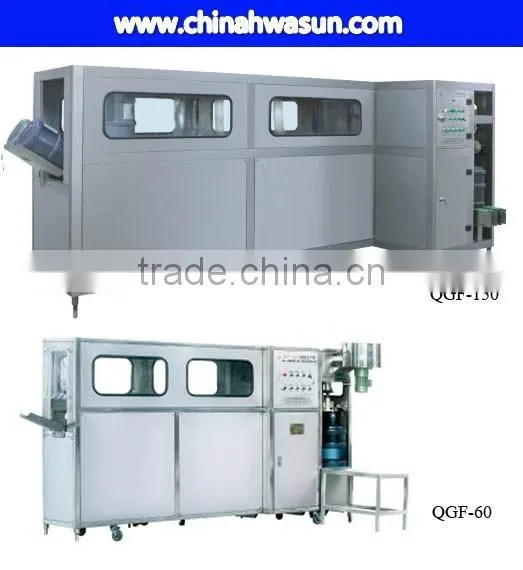

Automatic 5 Gallon Washing Filling Capping 3in1 Machine

Automatic 5 Gallon Washing Filling Capping 3in1 Machine photo-1
Automatic 5 Gallon Washing Filling Capping 3in1 Machine photo-2
Automatic 5 Gallon Washing Filling Capping 3in1 Machine photo-3
US$ 5,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
China any port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel, Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V/customized
Power 6.5KW
Brand Name HWASUN
Model Number HS-GF001
Dimension(L*W*H) 5130*2500 *2220mm
Weight 1750kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications: Automatic 5 gallon washing filling capping 3in1 machine

                    * Stable operation, high speed

                    * Output: 60bph-1200bph

                    * Control System: PLC Touch Screen

                    * Bottle volume: 3 gallon/5 gallon/6 gallon



                       Automatic 5 gallon washing filling capping 3in1 machine



             Automatic 5 gallon washing filling capping 3in1 machine





             Automatic 5 gallon washing filling capping 3in1 machine



           Automatic 5 gallon washing filling capping 3in1 machine



 Description:



1)      The machine is specially designed for producing 3 gallon/5 gallon/6 gallon barrel/ bottle drinking water.



2)      Integrating with washing, filling and sealing, it is the ideal manufacturing equipment of mineral water, distilled water and purified water.



3)      The capacity can be supplied from 60bph to 1200bph, for 5 gallon.



4)      Adopting excellent stainless steel, it is corrosion resistant and easy to clean.



5)      The main original electric parts are of SIEMENS and OMRON; the airflow system adopts imported AirTAC products.



6)      With the advantages of compact structure, small space occupation, high, stable and reliable efficiency and high automation, it is mechanical, electric and gas full-automatic barreled equipment.



Main Parameters:



Product model

QGF-150

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling volume

18.9L

Bucket size

D:270~490mm

Capacity

150b/h

300b/h

450b/h

600b/h

900b/h

1200b/h

Pneumatic pressure

0.5MPa

Air consumption

400L/min

500L/min

800L/min

1200L/min

Power

3.77KW

6.5KW

7.5KW

10KW

14KW

Rated voltage

380V

Dimensions(L*W*H)

6485x1420
x1700mm

5130x2500
x2220mm

6220x3500
x2170mm

6600x3500
x2170mm

6600x5000
x2170mm

Weight

≈1000KG

≈1750KG

≈2200KG

≈2500KG

≈2800KG

≈3100KG





Our advantages:

1.      More than 10 years experience

2.      Professional and international team

3.      Top technology; highest quality

4.      Open and innovative idea

5.      Lifetime technical advice



Automatic 5 gallon washing filling capping 3in1 machine
