Specifications: China cheap drinking water filling plant
1) lowest cost, highest quality
2) stable operation, high speed
3) best after-sales service
China cheap drinking water filling plant
China cheap drinking water filling plant includes:
*Water treatment
*Blow molding machine & Injection molding machine
* Unscrambler
* Air conveyor
* Washing-filling-capping 3-in-1 machine
* Shrink sleeve labeling machine
* Code sprayer
* Shrink wrapper
* Palletizer
* Etc.

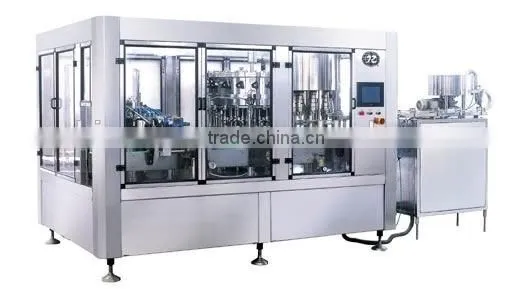

automatic washing-filling-capping 3-in-1 machine
Description:
1) The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping ate composed in one body of the machine.
2) The whole process is automatic. The machine is used to fill mineral water, purified water and juice in bottles made of polyester and plastics.
3) The machine is conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machines of the same specifications.
4) The advanced OMRON programmed controller(PLC) is adopted to control the machine runs automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speed and coordinate with transducer of the main machine to make the output of moving bottle forward steadily and reliably.
5) It is convenient to operate with higher automation due to adoption of photo electrical detector of each part. The machine is ideal-preferred equipment for beverage producers.
Main Parameters:
Model | Washing heads | Filling heads | Capping heads | Production capacity (b/h) (500ml) | Motor power (kw) |
JR80-80-18 | 80 | 80 | 18 | carbonated 34000 non-carbonated 36000 | 15 |
JR72-72-16 | 72 | 72 | 16 | carbonated 30000 non-carbonated 32000 | 11 |
JR60-60-15 | 60 | 60 | 15 | carbonated 22000 non-carbonated 24000 | 11 |
JR50-50-12 | 50 | 50 | 12 | carbonated 18000 non-carbonated 20000 | 11 |
JR40-40-10 | 40 | 40 | 10 | carbonated 15000 non-carbonated 18000 | 7.5 |
JR32-32-10 | 32 | 32 | 10 | carbonated 10000 non-carbonated 15000 | 5.5 |
JR24-24-8 | 24 | 24 | 8 | carbonated 8000 non-carbonated 12000 | 5.5 |
JR18-18-6 | 18 | 18 | 6 | carbonated 5000 non-carbonated 8000 | 4 |
JR16-16-5 | 16 | 16 | 5 | 6000 | 3 |
JR14-12-4 | 14 | 12 | 4 | 3000 | 3 |
Why Hubei Hwasun?
1. Professional and international team
2. Top technology; highest quality
3. Open and innovative idea
4. Lifetime technical advice
Thanks for your visiting and support!
Please send us your suggestions, and we will reply you timely!
Let us make business better together!
